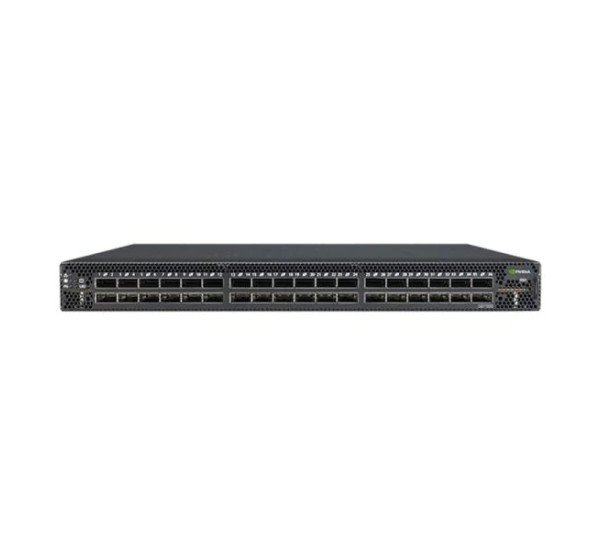

Mellanox MSB7800-ES2R Network Switch

Mellanox MSB7800-ES2R Network Switch

Specification

Specification	Details
Model	Mellanox MSB7800-ES2R
Series	SB7800 Series
Switch Type	Managed InfiniBand Switch
Ports	36 QSFP28 ports (100Gb/s each)
Aggregate Throughput	Up to 7.2 Tb/s
Port-to-Port Latency	As low as 90 ns
Switching Capacity	7.2 Tb/s
Port Speed	Up to 100Gb/s
Form Factor	1U Rack Mount
Management Interfaces	Ethernet, USB, RS232 Console
Cooling	Hot-swappable fan modules
Power Supply	Dual redundant, hot-swappable AC power supplies
Power Consumption	Approx. 200W
Fabric Management	Unified Fabric Manager (UFM) support
Supported Protocols	InfiniBand (IB), Ethernet management
Monitoring and Diagnostics	Real-time monitoring and diagnostics
Compliance	RoHS, CE, FCC
Operating Temperature	0°C to 45°C
Dimensions (HxWxD)	1.72" x 16.85" x 27.76" (44 x 428 x 705 mm)
Weight	Approx. 23 lbs (10.5 kg)

Description

The Mellanox MSB7800-ES2R Network Switch is a high-performance InfiniBand switch designed to meet the demanding requirements of modern data centers, high-performance computing (HPC) environments, and enterprise networks. Part of the Mellanox SB7800 series, this switch delivers exceptional throughput, scalability, and low latency, making it an ideal solution for mission-critical applications and data-intensive workloads. One of the standout features of the Mellanox MSB7800-ES2R is its remarkable 7.2 Tb/s switching capacity, achieved through 36 ports with a speed of 100Gb/s each. The switch boasts port-to-port latency as low as 90 ns, which significantly reduces data transfer times between endpoints. This makes it an excellent choice for latency-sensitive applications such as high-frequency trading, real-time analytics, and scientific computing.

Key Features:

High Performance: Supports up to 100GbE per port, offering ultra-low latency and high throughput. Designed for data centers and high-performance computing (HPC) environments. Scalability: Modular design with high port density. Supports non-blocking architecture for optimal data flow. Advanced Management: Comes with Mellanox’s Unified Fabric Manager (UFM) for easy monitoring and configuration. Supports SNMP, REST APIs, and CLI for management flexibility. Reliability and Redundancy: Hot-swappable power supplies and fans. Redundant power and cooling systems for continuous operation. Enhanced Security: Advanced ACLs and secure management interfaces. Supports role-based access control and authentication mechanisms.

Where It Can Be Used:

Data Centers: Ideal for high-throughput, low-latency data transfer between servers. High-Performance Computing (HPC): Suitable for supercomputing clusters and AI/ML model training environments. Enterprise Networks: Connects multiple servers with minimal latency, improving workload performance. Financial Services: Supports fast trading applications and data analytics with low-latency connectivity.

Installation Steps:

Preparation: Unpack and inspect the switch for any damages. Review the installation manual and safety guidelines. Rack Mounting: Mount the switch securely in a standard 19-inch rack. Use rack rails for stability. Power Connections: Connect redundant power supplies to separate power sources. Ensure proper grounding to prevent electrical issues. Network Cable Connections: Connect InfiniBand or Ethernet cables to the designated ports. Verify the cable compatibility and quality. Configuration: Access the management interface via CLI or web GUI. Configure IP settings, VLANs, and port mappings. Update firmware to the latest version. Testing and Validation: Perform network tests to verify connectivity and performance. Monitor the switch’s health and status using UFM.

User Experience:

Performance: Users report consistent and ultra-fast data transfer speeds. Management: The Unified Fabric Manager simplifies network administration and monitoring. Reliability: Robust hardware design with redundancy reduces downtime. Scalability: Easily expands with growing data demands. Why Choose Mellanox MSB7800-ES2R Network Switch: Unmatched Speed: Perfect for latency-sensitive applications. Enterprise-Grade Reliability: Ensures continuous operation and data integrity. Comprehensive Management Tools: Simplifies configuration and maintenance. High Scalability: Supports growth without compromising performance. Proven Track Record: Trusted in data centers and HPC clusters worldwide.

Supported/Comparable Models

Here are some supported and comparable models to the Mellanox MSB7800-ES2R: Mellanox MSB7890 (SB7890) - Similar in performance with enhanced port density. Mellanox SB7700 - Offers 36 ports with lower speed (56Gb/s per port). Mellanox SB7790 - Another high-speed model with similar features but optimized for different environments. Cisco Nexus 9336C-FX2 - Ethernet-based switch with similar performance for data centers. Arista 7060X4 Series - Ethernet switch with high port density and comparable throughput.

Buy Mellanox MSB7800-ES2R Network Switch from Datacom BD

Get the original Mellanox MSB7800-ES2R Network Switch in Bangladesh from Datacom BD. We offer a wide range of the latest Mellanox Network Switch at competitive prices. Order online or visit our office to get yours at the best price. This Mellanox MSB7800-ES2R Network Switch comes with a 1-year warranty.

Get in Touch with Datacom Technologies (BD)

? Call/WhatsApp: 01748173213 ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com

What is the price of Mellanox MSB7800-ES2R Network Switch in Bangladesh?

The latest price of Mellanox MSB7800-ES2R Network Switch in Bangladesh starts from Taka 630,000 - 695,000 Taka (Estimated), depending on model, capacity and specification. you can buy the original Mellanox Network Switch at the best price from our website or visit our office.
