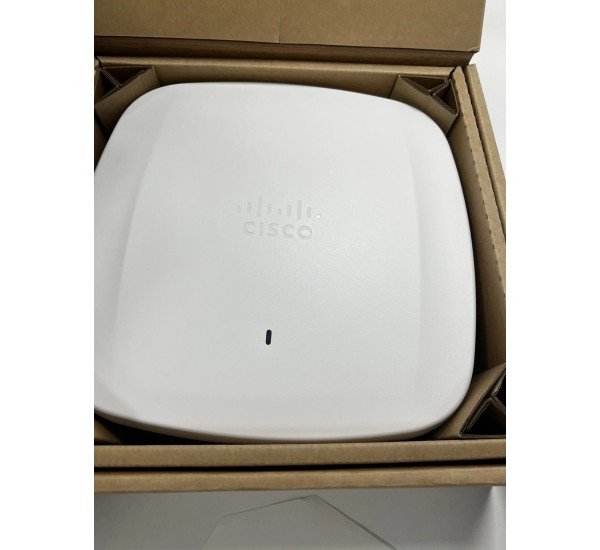

Cisco Meraki CW9164I Wi-Fi 6E Indoor Access Point

The Cisco Catalyst CW9164I is a high-performance enterprise Wi-Fi 6E indoor access point designed for midsize and demanding wireless deployments. It provides concurrent 2.4 GHz, 5 GHz and 6 GHz client connectivity, combining a 2x2:2 radio on 2.4 GHz with 4x4:4 radios on both 5 GHz and 6 GHz.

With an aggregate frame rate of up to 7.49 Gbps, the CW9164I provides substantial wireless capacity for offices, campuses, education, healthcare, retail and hospitality environments. Its Wi-Fi 6E architecture adds the 6 GHz band for compatible clients, providing additional spectrum and reducing congestion from legacy wireless devices.

Cisco Catalyst CW9164I Key Features

• Wi-Fi 6E tri-band enterprise indoor access point
• 2x2:2 MU-MIMO on 2.4 GHz
• 4x4:4 MU-MIMO on 5 GHz and 6 GHz
• Up to 7.49 Gbps aggregate tri-radio frame rate
• Integrated omnidirectional antennas
• Dedicated tri-band scanning radio for WIDS/WIPS and RF analytics
• Integrated Bluetooth Low Energy and IoT radio
• One 2.5 Gigabit multigigabit Ethernet port
• USB 2.0 Type-A interface
• 802.3at PoE+ and 802.3bt/UPoE support
• 160 MHz channel support on Wi-Fi 6E radios
• Meraki cloud or Cisco Catalyst controller management

CW9164I Technical Specifications

CW9164I Wi-Fi 6E Performance

The CW9164I uses three client-serving radios operating concurrently across the 2.4 GHz, 5 GHz and 6 GHz bands. Cisco specifies 2x2:2 operation on 2.4 GHz and 4x4:4 operation on both 5 GHz and 6 GHz, producing an aggregate maximum frame rate of up to 7.49 Gbps.

The 6 GHz radio provides additional clean spectrum for compatible Wi-Fi 6E clients, helping reduce interference and increase available wireless capacity in busy enterprise environments.

4x4 MU-MIMO and OFDMA

The 5 GHz and 6 GHz radios use 4x4:4 MU-MIMO, while the 2.4 GHz radio uses 2x2:2. Wi-Fi 6 technologies including uplink/downlink OFDMA, MU-MIMO, beamforming, BSS Coloring and Target Wake Time improve spectrum efficiency and multi-client performance.

Integrated Omnidirectional Antennas

The CW9164I uses integrated omnidirectional antennas designed for indoor enterprise coverage. Cisco specifies peak antenna gains of 3 dBi at 2.4 GHz, 5 dBi at 5 GHz and 4 dBi at 6 GHz.

Dedicated RF and Security Scanning

A dedicated fourth radio provides 24x7 wireless intrusion detection and prevention, spectrum analysis and location analytics. This allows RF monitoring and wireless security functions to operate independently of the client-serving radios.

Bluetooth and IoT Connectivity

An integrated Bluetooth Low Energy and IoT radio supports BLE beaconing and scanning, enabling location-aware applications and visibility of compatible Bluetooth devices.

2.5GbE Multigigabit Connectivity

The CW9164I includes one 100/1000/2.5GBASE-T RJ45 Ethernet port. It supports 802.3at PoE+ and 802.3bt/UPoE power configurations. USB functionality requires an appropriate higher-power configuration.

Flexible Cisco Meraki and Catalyst Management

The CW9164I provides flexible management options. It can be operated through the Cisco Meraki cloud-based stack or through supported Cisco Catalyst management infrastructure, including Catalyst 9800 wireless controllers.

This hybrid capability provides organizations with flexibility to use cloud-managed Meraki networking or on-premises Catalyst management while retaining the same Wi-Fi 6E hardware platform.

Enterprise Security Features

• WPA2-PSK and WPA2-Enterprise
• WPA3-Personal and WPA3-Enterprise
• WPA3 Enhanced Open / OWE
• 802.1X authentication
• Real-time WIDS/WIPS with Air Marshal
• Automatic rogue access point detection and containment
• Integrated Layer 7 firewall
• Guest access and device isolation
• VLAN tagging and IPsec VPN tunneling
• PCI compliance reporting

CW9164I Applications

• Midsize enterprise offices
• Corporate campuses
• Schools and universities
• Hospitals and healthcare facilities
• Retail stores and commercial buildings
• Hotels and hospitality environments
• Conference rooms and meeting spaces
• High-density indoor Wi-Fi 6E deployments
• Organizations requiring flexible cloud or on-premises management

Compatibility and Deployment

The CW9164I supports Cisco Meraki cloud-based management and compatible Cisco Catalyst wireless controller deployments. When operated through Meraki cloud management, the appropriate Meraki licensing and management services are required.

The access point is designed for indoor ceiling, wall or other supported mounting configurations. Customers should verify regional 6 GHz regulations, management mode, PoE requirements and firmware compatibility before deployment.

Cisco Meraki CW9164I Price in Bangladesh

The Cisco Meraki CW9164I price in Bangladesh can vary depending on licensing, warranty, configuration and supply conditions. Contact Datacom Technologies (BD) for the latest price, availability and deployment guidance.

Why Choose Cisco Catalyst CW9164I?

• High-performance Wi-Fi 6E tri-band architecture
• 4x4:4 MU-MIMO on 5 GHz and 6 GHz
• 2x2:2 MU-MIMO on 2.4 GHz
• Up to 7.49 Gbps aggregate frame rate
• Integrated omnidirectional antennas
• Dedicated WIDS/WIPS and spectrum analytics radio
• Integrated BLE and IoT capabilities
• 2.5GbE multigigabit Ethernet connectivity
• 160 MHz channel support on 5 GHz and 6 GHz
• Flexible Meraki cloud or Catalyst controller management

Buy Cisco Catalyst CW9164I in Bangladesh

Looking for the Cisco Catalyst CW9164I Wi-Fi 6E Indoor Access Point in Bangladesh? Contact Datacom Technologies (BD) for pricing, licensing information, configuration assistance and enterprise wireless networking solutions.
