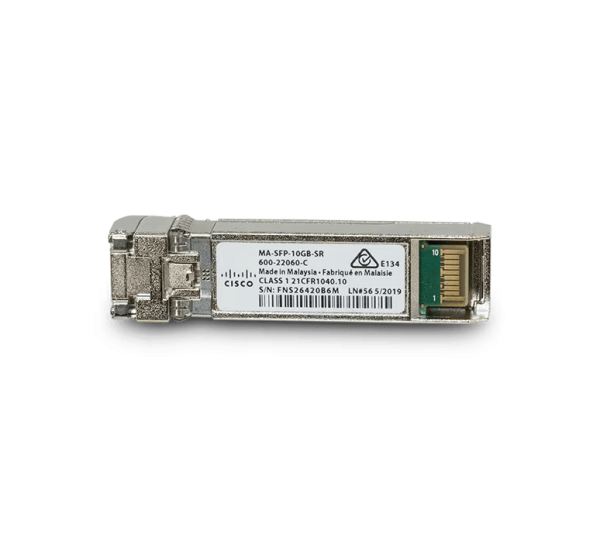

Meraki MA-SFP-10GB-SR SFP+ Fiber Transceiver

About Meraki MA-SFP-10GB-SR SFP+ Fiber Transceiver in Bangladesh

The Meraki MA-SFP-10GB-SR is a 10 Gigabit Ethernet SFP+ fiber transceiver designed for short-range, high-speed connectivity over multimode fiber. It operates at 850nm and supports 10GBASE-SR connectivity with a maximum reach of up to 400 meters over OM4 multimode fiber.

Cisco Meraki's official documentation identifies MA-SFP-10GB-SR as its 10GBASE-SR multimode fiber transceiver. The official specifications list 850nm operation, 10 Gigabit data rate and distances ranging from 26m on OM1 to 400m on OM4. Cisco Meraki official SFP compatibility and specifications

Meraki MA-SFP-10GB-SR Specifications & Features

Overview

The Meraki MA-SFP-10GB-SR provides 10Gbps optical connectivity for compatible Meraki networking equipment. It is designed for short- to medium-distance links using multimode fiber and is particularly suitable for data center, server room, enterprise and campus networking environments.

Its 850nm 10GBASE-SR optical design allows the same transceiver to support different distances depending on the grade of multimode fiber used. With OM4 fiber, the official Meraki specification supports up to 400 meters.

Buy Meraki MA-SFP-10GB-SR in Bangladesh

Purchase the Meraki MA-SFP-10GB-SR SFP+ Fiber Transceiver from Datacom Technologies (BD). We supply genuine Meraki-compatible networking optics, SFP/SFP+ modules, enterprise switches, security appliances and data center fiber connectivity solutions throughout Bangladesh.

Key Features

• 10Gbps Ethernet optical connectivity
• 10GBASE-SR standard
• 850nm optical wavelength
• Multimode fiber operation
• Up to 400m over OM4
• Up to 300m over OM3
• Up to 82m over OM2
• Up to 26m over OM1
• Duplex LC connector
• Compact SFP+ form factor
• Designed for compatible Meraki networking platforms
• Suitable for enterprise and data center 10GbE connectivity

10GBASE-SR Optical Technology

10GBASE-SR is a short-range 10 Gigabit Ethernet optical standard designed primarily for multimode fiber. The Meraki MA-SFP-10GB-SR operates at 850nm and is optimized for high-bandwidth connections inside data centers, server rooms and enterprise network environments.

The actual supported distance depends on the multimode fiber grade. Meraki specifies 26m on OM1, 82m on OM2, 300m on OM3 and 400m on OM4. Meraki official distance specifications

Multimode Fiber Support

The MA-SFP-10GB-SR is specifically designed for multimode fiber (MMF). It should not be confused with Meraki's MA-SFP-10GB-LR, which is designed for single-mode fiber.

For new 10GbE installations requiring longer multimode-fiber reach, OM4 is generally preferred because it provides the highest specified reach for this Meraki SR module.

850nm Optical Wavelength

The MA-SFP-10GB-SR operates at 850nm, a wavelength commonly used for short-range multimode-fiber Ethernet applications.

The 850nm optical design works with VCSEL-based short-range fiber technology and is well suited to high-density data center and enterprise networking applications.

Duplex LC Connector

The Meraki MA-SFP-10GB-SR uses a duplex LC optical interface. One fiber carries the transmit signal while the other carries the receive signal.

Duplex LC is widely used in structured multimode fiber cabling, making the transceiver suitable for standard LC patch panels and fiber distribution systems.

400m OM4 Reach

When used with compatible OM4 multimode fiber, the MA-SFP-10GB-SR supports a maximum distance of 400 meters.

This makes it useful for larger data center halls, campus buildings, enterprise distribution networks and longer switch-to-switch 10GbE connections where multimode infrastructure is already deployed.

For distances approaching the maximum specification, the complete optical link should be checked for connector losses, fiber attenuation and other optical-budget considerations.

Meraki Platform Compatibility

Cisco Meraki's official transceiver documentation lists MA-SFP-10GB-SR compatibility across a wide range of Meraki MX and MS platforms. Listed compatible equipment includes MX95/MX105, MX250/MX400/MX450/MX600, MS125, MS130-X, MS150-4X, MS225, MS250, MS350, MS355, MS390, MS410 and MS425. It is also supported on compatible Catalyst 9300-M platforms. Meraki compatibility list

Compatibility can vary by platform and port configuration, so the exact Meraki device should be checked before procurement.

Meraki MA-SFP-10GB-SR vs MA-SFP-10GB-LR

Meraki officially specifies the SR for multimode fiber up to 400m and the LR for single-mode fiber up to 10km. Meraki SFP specifications

Meraki MA-SFP-10GB-SR vs MA-SFP-10GB-LRM

LRM is useful where extended-reach 10GbE connectivity is needed over certain legacy multimode fiber types, while SR provides the higher maximum reach of 400m on OM4.

Data Center & Enterprise Applications

• Meraki switch-to-switch 10GbE connections
• Server-to-Meraki switch connectivity
• Data center network uplinks
• Enterprise network aggregation
• Campus network fiber links
• High-speed access-layer uplinks
• Virtualization infrastructure
• Storage network connectivity
• Meraki MX security appliance uplinks
• Structured OM3/OM4 fiber networks

Installation Considerations

• Use compatible multimode fiber.
• Use OM3 or OM4 for longer 10GbE links.
• Use duplex LC connectors.
• Verify the fiber grade before calculating maximum reach.
• Clean and inspect LC connectors before installation.
• Verify compatibility with the target Meraki device.
• Check both ends of the optical link for compatible 10GBASE-SR optics.
• Verify the complete optical link budget for long runs.

Benefits

• 10Gbps high-speed connectivity
• 10GBASE-SR standard
• 850nm multimode optical technology
• Up to 400m OM4 reach
• Up to 300m OM3 reach
• Duplex LC connectivity
• Compact SFP+ form factor
• Broad Meraki platform compatibility
• Ideal for data center and enterprise networks

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Meraki SFP+ fiber transceivers, networking optics, Meraki-compatible accessories, enterprise switches and data center connectivity products in Bangladesh. Customers can receive competitive pricing, technical consultation, compatibility guidance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacomtechbd.com
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is Meraki MA-SFP-10GB-SR?
It is a Cisco Meraki 10GbE SFP+ SR fiber transceiver designed for 10GBASE-SR connectivity over multimode fiber.

Q2: What wavelength does MA-SFP-10GB-SR use?
It operates at 850nm.

Q3: What is the maximum reach?
The official Meraki specification is up to 400m over OM4, 300m over OM3, 82m over OM2 and 26m over OM1.

Q4: What type of fiber does it require?
It requires multimode fiber (MMF).

Q5: What connector does it use?
It uses a duplex LC connector.

Q6: Can MA-SFP-10GB-SR work over single-mode fiber?
It is specified as a multimode 10GBASE-SR optic. For standard 10km single-mode connectivity, Meraki's MA-SFP-10GB-LR is the appropriate product family.

Q7: Is MA-SFP-10GB-SR compatible with Meraki switches?
Yes. Meraki officially lists the module for numerous MX, MS and compatible Catalyst-M platforms, subject to the specific platform and port configuration.

Q8: Can it support 400m?
Yes. Meraki specifies up to 400m when the module is used with compatible OM4 multimode fiber.

Q9: What is the difference between OM3 and OM4?
Both are multimode fiber grades suitable for 10G-SR. Meraki specifies up to 300m on OM3 and up to 400m on OM4.

Q10: Is it an SFP or SFP+ module?
MA-SFP-10GB-SR is a 10GbE SFP+ fiber transceiver.

Q11: Can I use it for a server-to-switch link?
Yes, provided the server-side network adapter and switch-side port support compatible 10GBASE-SR SFP+ optics and the correct multimode fiber is used.
