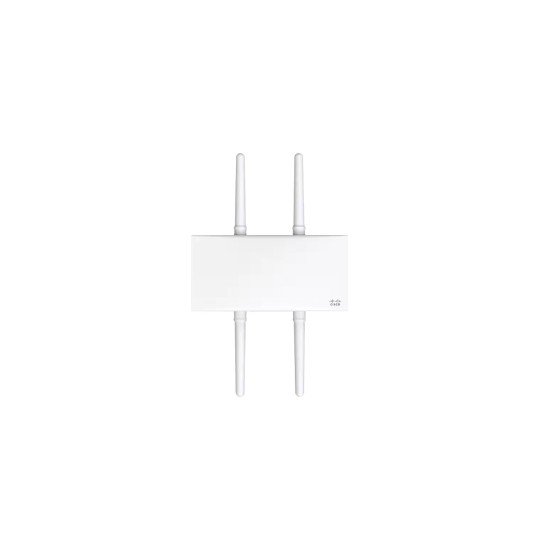

Cisco Meraki MR76 Wi-Fi 6 Outdoor Access Point

The Cisco Meraki MR76 is a rugged, cloud-managed outdoor Wi-Fi 6 access point designed for reliable wireless connectivity in demanding outdoor and industrial environments. It features concurrent 2.4 GHz and 5 GHz 2x2:2 radios, a dedicated security and RF analytics radio, and an integrated Bluetooth Low Energy radio.

With an aggregate maximum frame rate of up to 1.5 Gbps, the MR76 provides efficient Wi-Fi 6 connectivity for outdoor campuses, industrial facilities, schools, hospitality areas, retail environments, and other deployments requiring weather-resistant wireless infrastructure.

Cisco Meraki MR76 Key Features

• Wi-Fi 6 (IEEE 802.11ax) outdoor access point
• Concurrent 2.4 GHz and 5 GHz 2x2:2 client-serving radios
• Up to 1.5 Gbps aggregate dual-radio frame rate
• Up to 1,201 Mbps on 5 GHz and 286 Mbps on 2.4 GHz
• Dedicated dual-band WIDS/WIPS and RF analytics radio
• Integrated Bluetooth Low Energy beacon and scanning radio
• Four external N-type antenna connectors
• IP67-rated rugged enclosure
• 1 × Gigabit Ethernet RJ45 port
• 802.3af PoE compatible
• Designed for outdoor and industrial deployments
• Cloud-managed through Cisco Meraki Dashboard

Cisco Meraki MR76 Technical Specifications

MR76 Wi-Fi 6 Wireless Performance

The MR76 provides concurrent 2.4 GHz and 5 GHz wireless connectivity using 2x2:2 MIMO radios. The 5 GHz radio supports up to 1,201 Mbps while the 2.4 GHz radio supports up to 286 Mbps, providing an aggregate frame rate of up to 1.5 Gbps.

MU-MIMO and OFDMA

Wi-Fi 6 technologies including uplink and downlink MU-MIMO, OFDMA, beamforming, BSS Coloring and Target Wake Time improve wireless efficiency and multi-client performance. These capabilities make the MR76 suitable for outdoor networks with multiple connected devices.

Rugged IP67 Outdoor Design

The Cisco Meraki MR76 features a rugged industrial enclosure with an IP67 environmental rating. It is designed to withstand dust, moisture, vibration and shock and supports an operating temperature range from -40°C to 55°C.

External Antenna Connectivity

The MR76 provides four external N-type female antenna connectors. Compatible Meraki antennas are available separately, allowing the wireless deployment to be configured for different coverage and directional requirements.

Dedicated Wireless Security Radio

A dedicated dual-band scanning radio provides real-time wireless intrusion detection and prevention, spectrum analysis and RF monitoring without requiring the client-serving radios to perform these functions. The system can continuously analyze the RF environment and help identify wireless threats and interference.

Bluetooth Low Energy

The integrated Bluetooth Low Energy radio supports beacon functionality and Bluetooth device scanning. This enables location-aware applications and Bluetooth-based asset or device visibility in supported Meraki deployments.

Cisco Meraki Cloud Management

The MR76 is managed through the Cisco Meraki Dashboard. Cloud management provides centralized configuration, monitoring, firmware updates, RF optimization, alerts and remote troubleshooting without requiring a traditional wireless controller.

MR76 Security Features

• WPA2 and WPA3 wireless security
• 802.1X enterprise authentication
• Air Marshal WIDS/WIPS
• Rogue access point detection and containment
• Guest access and client isolation
• Layer 7 firewall and application-aware traffic shaping
• VLAN tagging and IPsec VPN support
• Embedded location analytics

Cisco Meraki MR76 Applications

• Outdoor enterprise campuses
• Industrial facilities
• School and university outdoor areas
• Hotels and hospitality properties
• Retail and commercial outdoor spaces
• Municipal and public Wi-Fi deployments
• Outdoor warehouse and logistics environments
• Outdoor location-aware wireless applications
• Point-to-point and specialized outdoor wireless deployments

Compatibility and Deployment

The MR76 requires compatible external antennas, which are sold separately. Cisco Meraki lists MA-ANT-20, MA-ANT-21, MA-ANT-23, MA-ANT-25 and MA-ANT-27 among the compatible antenna options.

The access point uses a single Gigabit Ethernet RJ45 interface and supports 802.3af PoE. A compatible Meraki PoE injector can be used when PoE is not available from the network switch.

Cisco Meraki MR76 Price in Bangladesh

The Cisco Meraki MR76 price in Bangladesh can vary depending on antenna selection, licensing, warranty and supply conditions. Contact Datacom Technologies (BD) for the latest price, availability and deployment guidance.

Why Choose Cisco Meraki MR76?

• Enterprise Wi-Fi 6 technology for outdoor deployments
• Rugged IP67-rated enclosure
• Concurrent 2.4 GHz and 5 GHz 2x2:2 connectivity
• Up to 1.5 Gbps aggregate frame rate
• Four external antenna connectors for flexible RF coverage
• Dedicated WIDS/WIPS and spectrum analytics radio
• Integrated Bluetooth Low Energy scanning and beaconing
• Cloud-based Cisco Meraki management
• Suitable for outdoor and industrial wireless environments

Buy Cisco Meraki MR76 in Bangladesh

Looking for the Cisco Meraki MR76 Wi-Fi 6 Outdoor Access Point in Bangladesh? Contact Datacom Technologies (BD) for pricing, antenna selection, licensing information, configuration assistance and enterprise wireless networking solutions.
