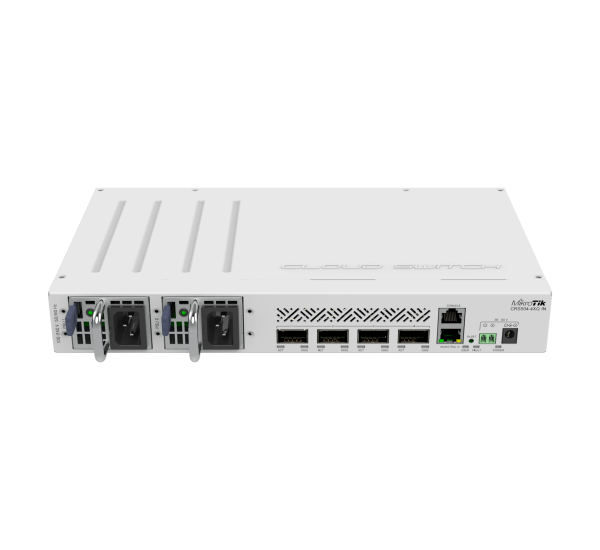

Mikrotik 100G Network Switch CRS504-4XQ-IN

Mikrotik 100G Network Switch CRS504-4XQ-IN

Specification

Specification	Details
Product Code	CRS504-4XQ-IN
Architecture	MIPSBE
CPU	QCA9531, 1 core, 650 MHz
RAM	64 MB
Storage	16 MB FLASH
Dimensions	320 x 185 x 44 mm
Operating System	RouterOS v7, License Level 5
Operating Temperature	-40°C to 70°C
Ethernet Ports	1 x 10/100 Mbps
QSFP28 Ports	4 x 100G
Power Options	Dual hot-swappable internal PSU (100-240V AC), DC jack (36-57V), 2-pin terminal (36-57V), 802.3bt PoE-in (43-57V)
Max Power Consumption	41 W (25 W without attachments)
Cooling	2 fans
Management Interface	RJ45
Certifications	CE, EAC, ROHS

Description:

The CRS504-4XQ-IN is part of MikroTik's expanding 100 Gigabit product line, offering an affordable and efficient solution for high-speed networking needs. Its compact form factor and low power consumption (25W without attachments) make it suitable for various environments, extending beyond traditional data centers and large enterprises. Equipped with four 100 Gigabit QSFP28 ports, the CRS504-4XQ-IN provides versatile connectivity options. These ports can directly connect to other 100 Gigabit devices or, using breakout cables, connect to multiple 25 Gigabit devices. Each 100G port can be split into four 25G lines, allowing connections to up to 16 x 25 Gigabit devices. This flexibility supports various configurations, such as 100G on one port, 40G on another, or multiple 25G and 10G connections, catering to diverse networking requirements. The switch is powered by a QCA9531 chipset with a single core running at 650 MHz, complemented by 64 MB of RAM and 16 MB of FLASH storage. This robust internal architecture ensures stable and reliable operation, essential for environments that demand uninterrupted connectivity. The device runs on RouterOS v7 with a Level 5 license, offering a comprehensive suite of networking features. The CRS504-4XQ-IN offers multiple powering options to suit various deployment scenarios. It features dual hot-swappable internal power supplies (100-240V AC), ensuring continuous operation even during maintenance. Additionally, it supports DC input via a jack or 2-pin terminal (36-57V) and 802.3bt PoE-in (43-57V), providing flexibility in power sourcing and redundancy.

Key Features:

1. High-Speed Connectivity: Supports up to 100 Gbps data rate per port. Equipped with 4 x 100G QSFP28 ports. Total non-blocking throughput: 400 Gbps.
2. Powerful Performance: Dual-core ARMv8-A 1.2 GHz CPU. 1 GB RAM for smooth operations. RouterOS and SwitchOS support for flexible configuration.
3. Versatile and Compact: Desktop and rackmount design. Low power consumption (maximum 36W). Passive cooling for quiet operation.
4. Advanced Layer 3 Features: VLAN support. Layer 3 routing and traffic management. ACL (Access Control List) for enhanced security.
5. Extensive Management: Web interface, CLI, and API for configuration. SNMP monitoring and real-time traffic statistics.

Where It Can Be Used:

1. Data Centers: High-speed backbone connectivity. Aggregation and core switching.
2. Internet Service Providers (ISPs): Handling massive data transfers. Backbone connectivity between sites.
3. Enterprise Networks: High-density server connectivity. Efficient handling of virtualized environments.
4. Campus and Education Networks: Reliable and fast data transfer between buildings.

Installation Steps:

1. Unboxing and Inspection: Check for any physical damage. Ensure all accessories are included.
2. Mounting: Install in a standard 19-inch rack or place on a flat surface.
3. Cabling: Connect QSFP28 modules and fiber cables as needed. Attach the power cord to a reliable power source.
4. Initial Configuration: Access the device using the default IP through the web interface or CLI. Set up basic network settings like IP address and hostname.
5. Firmware Update: Update to the latest RouterOS or SwitchOS version for optimal performance.
6. Advanced Configuration: Set up VLANs, routing, or ACLs based on your network requirements.

User Experience:

Intuitive Interface: Easy-to-use web interface and command-line access. High Reliability: Minimal downtime due to robust hardware. Scalability: Suitable for both small and large networks. Low Maintenance: Passive cooling and power efficiency reduce the need for frequent maintenance.

Why Choose MikroTik 100G Network Switch CRS504-4XQ-IN?

• Cost-Effective 100G Solution: Affordable compared to similar high-performance switches.
• Flexible Operating System: Choose between RouterOS for advanced routing and SwitchOS for switching efficiency.
• High Bandwidth Capacity: Ideal for handling large amounts of data with minimal latency.
• Reliable and Durable: Sturdy build quality and efficient passive cooling.
• Great Community Support: Access to forums, guides, and professional assistance.

Supported/Comparable Models:

• MikroTik offers several models comparable to the CRS504-4XQ-IN, each catering to different networking needs:
• CRS504-4XQ-OUT: An outdoor variant of the CRS504-4XQ-IN, designed to withstand external environmental conditions.
• CRS510-8XS-2XQ-IN: Features 8 x 25G SFP28 ports and 2 x 100G QSFP28 ports, providing a balance between 25G and 100G connectivity options.
• CRS518-16XS-2XQ-RM: Offers 16 x 25G SFP28 ports and 2 x 100G QSFP28 ports, suitable for networks requiring higher port density and a mix of 25G and 100G connections.

Buy Mikrotik 100G Network Switch CRS504-4XQ-IN from Datacom BD

Get the original Mikrotik 100G Network Switch CRS504-4XQ-IN in Bangladesh from Datacom BD. We offer a wide range of the latest Mikrotik Network Switch at competitive prices. Order online or visit our office to get yours at the best price. This Mikrotik 100G Network Switch CRS504-4XQ-IN comes with a 1-year warranty.
