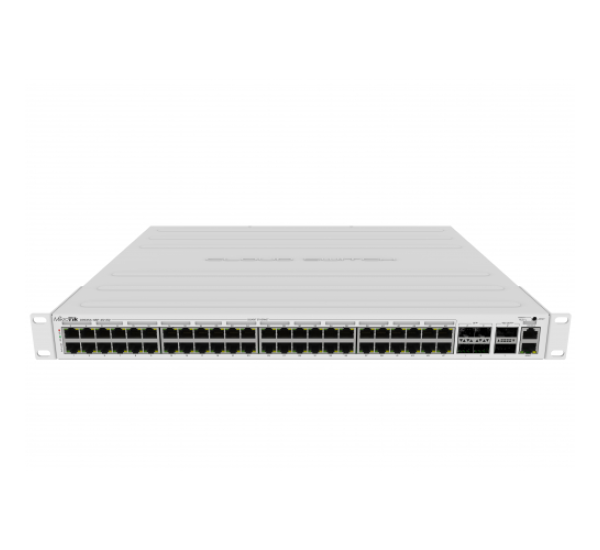

Mikrotik CRS354-48P-4S+2Q+RM 48-Port PoE Switch
The Mikrotik CRS354-48P-4S+2Q+RM 48-Port PoE Switch is a high-performance enterprise-grade managed switch designed for large-scale network infrastructure. This Cloud Router Switch (CRS) offers powerful Layer 2 and Layer 3 switching capabilities, high-speed connectivity, and full PoE (Power over Ethernet) support, making it ideal for ISPs, corporate offices, data centers, and surveillance systems in Bangladesh. With advanced switching performance, multiple uplink ports, and robust RouterOS features, it ensures stable and efficient network management.
This switch is widely known for its flexibility, scalability, and cost-effective enterprise networking solution in Bangladesh.
MikroTik CRS354-48P-4S+2Q+RM – Specification Table
| Feature | Details |
|---|
| Model | MikroTik CRS354-48P-4S+2Q+RM |
| Device Type | Cloud Router Switch (Managed PoE Switch) |
| Ports | 48 × 10/100/1000 Gigabit Ethernet (RJ45) |
| PoE Support | Yes (802.3af / 802.3at + Passive PoE) |
| PoE Power Budget | Up to 700W total PoE output |
| Max Per Port PoE | Up to 30W (PoE+) |
| Uplink Ports | 4 × 10G SFP+ ports |
| High-Speed Uplinks | 2 × 40G QSFP+ ports |
| Switching Capacity | 336 Gbps |
| Non-blocking Throughput | 168 Gbps |
| Forwarding Rate | ~235 Mpps |
| CPU | 650 MHz single-core (QCA9531) |
| RAM | 128 MB |
| Storage | 32 MB Flash |
| Operating System | RouterOS v7 / SwitchOS (Dual boot) |
| Power Input | 100–240V AC |
| Max Power Consumption | Up to 800W (with PoE load) |
| Cooling | 4 × Smart cooling fans |
| Rack Size | 1U Rackmount |
| Management | Web UI, WinBox, CLI, SNMP |
| VLAN Support | Yes (advanced VLAN configuration) |
| MAC Address Table | ~16K entries |
| Operating Temperature | -20°C to +60°C |
| Use Case | ISP, enterprise core switch, CCTV, WiFi AP deployment |
Best Application for in Bangladesh
The Mikrotik CRS354-48P-4S+2Q+RM 48-Port PoE Switch is perfect for:
- ISP (Internet Service Provider) networks
- Corporate office networking infrastructure
- CCTV surveillance systems (IP Camera PoE setup)
- Data centers and cloud environments
- Educational institutions and campuses
- Hotel and hospitality network management
- Large enterprise IT infrastructure in Bangladesh
This switch ensures high-speed data transmission, centralized power management, and reliable network uptime.
How to Install Mikrotik CRS354-48P-4S+2Q+RM
- Mount the switch into a standard 19-inch rack
- Connect the power supply using dual AC inputs
- Attach ISP uplink or backbone cable to SFP+/QSFP+ ports
- Connect PoE devices (IP cameras, access points, IP phones)
- Configure through RouterOS or SwitchOS interface
- Set VLAN, DHCP, and security rules as needed
- Save configuration and reboot if required
For best performance, ensure proper cooling and stable power supply during installation.
Compatibility Devices
This switch is compatible with:
- IP Cameras (Hikvision, Dahua, Uniview, etc.)
- WiFi Access Points (Mikrotik, Ubiquiti, TP-Link Omada)
- IP Phones (VoIP systems)
- Servers and NAS storage systems
- Fiber optic networking equipment
- Routers and firewall systems
- Enterprise networking infrastructure devices
Why Choose Mikrotik CRS354-48P-4S+2Q+RM
- Enterprise-level performance at affordable cost
- High port density for large networks
- Reliable PoE power distribution
- Flexible dual operating system support
- Strong community and RouterOS ecosystem
- Ideal for scalable business network expansion
Where to Buy Mikrotik CRS354-48P-4S+2Q+RM in Bangladesh
Buy Mikrotik CRS354-48P-4S+2Q+RM from Datacom.
In Bangladesh, you can get original Mikrotik networking devices from Datacom. We have a large collection of the latest enterprise switches and routers.
To purchase, order online or visit our Datacom shop at Elephant Road, Dhaka to get the best price. The Mikrotik CRS354-48P-4S+2Q+RM is available with a 1-year warranty.
Visit Our More Products Here
- Upgrade your network infrastructure with our latest collection of high-performance IT solutions.
FAQ – MikroTik CRS354-48P-4S+2Q+RM 48-Port PoE Switch
Q1: What is MikroTik CRS354-48P-4S+2Q+RM used for?
The MikroTik CRS354-48P-4S+2Q+RM is a high-performance enterprise PoE switch used for data centers, ISP networks, enterprise LAN, and CCTV/IP device deployments. It provides powerful switching with integrated PoE-out support.
Q3: Does MikroTik CRS354-48P support PoE?
Yes, all 48 Ethernet ports support PoE-out (802.3af/at and Passive PoE), allowing it to power devices like IP cameras, wireless access points, and VoIP phones.
Q4: What is the switching capacity of CRS354-48P-4S+2Q+RM?
The switch delivers up to 336 Gbps switching capacity and around 168 Gbps non-blocking throughput, ensuring smooth high-speed traffic handling.
Q5: Is MikroTik CRS354 a Layer 2 or Layer 3 switch?
It mainly works as a Layer 2 managed switch, but it also supports some Layer 3 routing features via RouterOS, depending on configuration.
Q6: What is the PoE power budget of CRS354-48P?
It provides a total PoE power budget of around 700W–750W, allowing multiple high-power devices to run simultaneously.
Q8: What operating system does MikroTik CRS354 use?
It supports dual boot:
- RouterOS (full management features)
- SwOS (lightweight switching OS)
Q9: Is MikroTik CRS354 suitable for enterprise use?
Yes, it is widely used in enterprise networks, ISPs, and data centers due to its high port density, PoE support, and high-speed uplinks.
Q10: What is the power consumption of CRS354-48P?
Maximum power consumption is around 800W, depending on PoE load and active ports.
