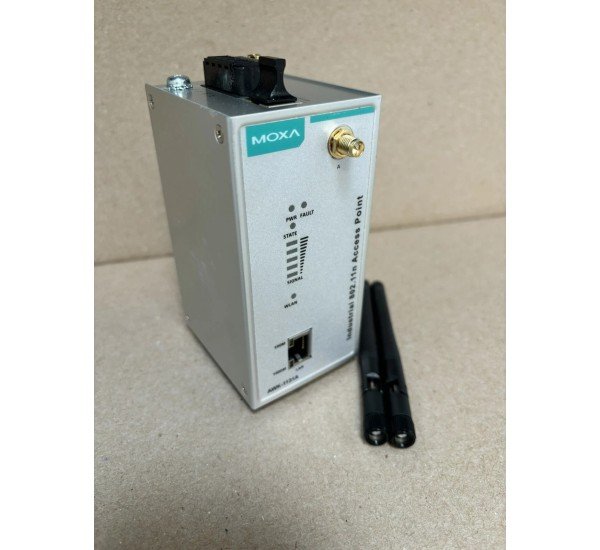

MOXA AWK-1131A Wireless Access Point
Specification
| Feature |
Specification |
| Model |
AWK-1131A |
| Type |
Industrial Wireless Access Point / Client / Bridge (3-in-1) |
| Wireless Standards |
IEEE 802.11a/b/g/n |
| Frequency Bands |
2.4 GHz and 5 GHz |
| Data Rate |
Up to 300 Mbps |
| Security |
WEP, WPA, WPA2, 802.11X |
| Turbo Roaming |
Client-based, millisecond-level |
| Ethernet Ports |
1 x 10/100/1000BaseT(X) RJ45 |
| Power Inputs |
Dual redundant 12–48 VDC |
| Mounting Options |
DIN-rail and wall mounting |
| Operating Temperature |
0°C to 60°C (standard), -40°C to 75°C (wide-temperature models) |
| Housing |
IP30-rated metal body |
| Antenna |
Integrated with power isolation |
| Certifications |
UL, CE, FCC, and industrial approvals for surge, ESD, vibration, and more |
| Management Support |
MXview network management utility with wireless visualization add-on |
Description:
The
Moxa AWK-1131A is an industrial-grade wireless access point, client, and bridge (3-in-1) designed to provide reliable and high-speed wireless connectivity in challenging environments. Supporting IEEE 802.11a/b/g/n standards, it offers data rates up to 300 Mbps and operates on both 2.4 GHz and 5 GHz bands. The device features client-based Turbo Roaming, ensuring seamless handoffs with minimal latency, making it ideal for applications requiring uninterrupted wireless communication.
Built to withstand harsh industrial conditions, the AWK-1131A boasts a rugged IP30-rated metal housing and complies with various industrial certifications, including surge, ESD, and vibration resistance. It supports dual redundant 12–48 VDC power inputs, enhancing system reliability. The device is compatible with Moxa's MXview network management utility, which provides visualization of wireless connections for comprehensive network monitoring.
With its robust design and advanced features, the AWK-1131A is suitable for a wide range of industrial applications, including automation systems, transportation networks, and remote monitoring stations, ensuring secure and stable wireless communication in demanding settings.
Key Features:
- Wireless Connectivity: The AWK-1131A supports IEEE 802.11 a/b/g/n standards, ensuring high-speed, secure wireless connections for industrial Ethernet networks.
- Multiple Network Ports: Equipped with 1 Ethernet port and 1 wireless interface, it offers flexibility in network setups.
- Wide Temperature Range: It can operate in a temperature range of -40 to 75°C, making it suitable for harsh industrial environments.
- PoE (Power over Ethernet): It supports PoE for easier installation, eliminating the need for separate power cables.
- Robust Security: Offers multiple encryption and security features like WPA, WPA2, and WEP to ensure a secure wireless network.
- Industrial-Grade Reliability: The device is designed to handle industrial-grade challenges like noise, vibration, and harsh environmental conditions.
- Easy Management: Features such as SNMP, web, and console management make it easy to monitor and configure.
Where it Can Be Used:
- Manufacturing Facilities: In production lines, where industrial devices and machines require wireless network connectivity.
- Oil and Gas Industry: For monitoring and control systems in remote locations that need wireless communication.
- Warehouse Automation: To ensure wireless communication between automated systems and controllers.
- Transportation Systems: For use in trains, buses, and other vehicles needing reliable wireless connectivity.
- Smart Grid & Remote Monitoring: For connecting remote devices like meters, sensors, and control systems to a centralized monitoring system.
Installation Step:
- Mount the Device: Install the AWK-1131A in a suitable location, ensuring proper ventilation and away from sources of interference.
- Connect to Power: If using Power over Ethernet (PoE), connect the Ethernet cable that provides both data and power. Otherwise, connect to the power supply.
- Network Setup: Use an Ethernet cable to connect the AWK-1131A to your existing network infrastructure (router or switch).
- Configure Wireless Settings: Using the web interface or management software, set up the wireless connection parameters (SSID, security, etc.).
- Test the Connection: Check the status LEDs to ensure that the wireless connection is established, and test the network performance for reliability.
User Experience:
- Ease of Use: Users have praised the AWK-1131A for its simple installation and user-friendly configuration interface.
- Reliability: It offers high network reliability even in industrial environments prone to interference.
- Secure Connection: The security features ensure that the data transferred over the network remains safe and protected.
- Durability: The device’s industrial-grade design withstands harsh conditions like extreme temperatures and vibrations, making it well-suited for critical applications.
Buy MOXA AWK-1131A Wireless Access Point at the Best Price from Datacom BD Online
In Bangladesh, you can get original MOXA AWK-1131A Wireless Access Point From
Datacom. We have a large collection of latest MOXA Ethernet Access Point to purchase. Order Online Or Visit our Office to get yours at lowest price. The MOXA AWK-1131A Wireless Access Point comes with 1-years warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of MOXA AWK-1131A Wireless Access Point in Bangladesh?
The latest price MOXA AWK-1131A Wireless Access Point in Bangladesh is 90,000৳. You can buy the MOXA AWK-1131A Wireless Access Point at best price from our website or visit our Office.
