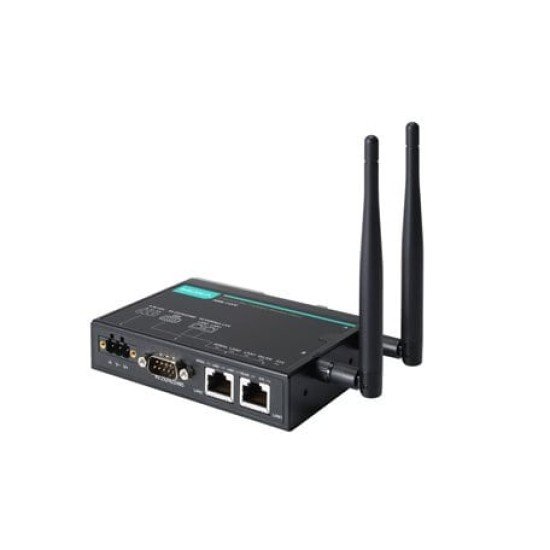

MOXA AWK-1137C Industrial Wireless AP
Specification
| Feature |
Details |
| Model |
AWK-1137C |
| Wireless Standards |
IEEE 802.11a/b/g/n |
| Frequency Bands |
2.4 GHz and 5 GHz (dual-band) |
| Modulation Types |
DSSS, OFDM, MIMO-OFDM |
| Transmission Rates |
- 802.11b: 1 to 11 Mbps
- 802.11a/g: 6 to 54 Mbps
- 802.11n: 6.5 to 300 Mbps |
| Security Protocols |
WEP, WPA/WPA2-Personal/Enterprise (AES, TKIP), 802.1X/RADIUS |
| Ports |
1 x RS-232/422/485 serial port (DB9)
2 x 10/100 Mbps Ethernet LAN ports |
| Power Input |
9 to 30 VDC |
| Operating Temperature |
-40 to 75°C (wide temperature models available) |
| Mounting Options |
DIN-rail or wall mounting |
| Roaming Time |
< 150 ms (Turbo Roaming) |
| Certifications |
IEC 60068-2-6 (vibration), IEC 61000-4-5 (surge), IEC 61000-4-2 (ESD), CE, FCC |
| Dimensions |
Compact form factor suitable for embedded industrial applications |
| Management Tools |
AeroMag for easy deployment, MXview for network monitoring |
? Product Description
The
Moxa AWK-1137C is a compact and rugged industrial wireless client designed to provide reliable WLAN connectivity for Ethernet and serial devices in demanding environments. Compliant with IEEE 802.11a/b/g/n standards, it supports dual-band operation on 2.4 GHz and 5 GHz frequencies, ensuring compatibility with both legacy and modern wireless networks.
Equipped with one RS-232/422/485 serial port and two 10/100 Mbps Ethernet LAN ports, the AWK-1137C facilitates seamless integration into various industrial applications, including mobile equipment and machinery. Its Turbo Roaming technology enables rapid handoff between access points, achieving roaming times of less than 150 milliseconds, which is crucial for applications requiring uninterrupted connectivity.
Designed to withstand harsh conditions, the AWK-1137C features a wide operating temperature range of -40 to 75°C and complies with international certifications for vibration, surge, and ESD protection. The device offers flexible mounting options, including DIN-rail and wall mounting, and supports easy deployment through Moxa's AeroMag configuration tool.
Key Features:
- Industrial-grade Wireless Performance: Supports IEEE 802.11a/b/g/n Wi-Fi standards for reliable and high-performance wireless communication.
- Multiple Operation Modes: It operates as an Access Point (AP), Client, and Repeater, offering flexibility for various deployment scenarios.
- Wide Coverage Range: Boasts extended coverage, ensuring solid wireless communication over long distances.
- High Security: Supports WPA/WPA2 encryption, VPN (PPTP/L2TP), and various advanced security features to protect sensitive data in industrial environments.
- Dual Ethernet Ports: Redundant LAN ports (10/100BaseT) provide enhanced reliability and flexibility.
- Rugged Design: Built to withstand extreme environments, with an IP30-rated enclosure for dust and water protection, and a wide operating temperature range.
- Fast Roaming: Ensures seamless communication even in moving environments, which is crucial for industries with high mobility.
Where it Can Be Used?
- Factory Automation: Reliable wireless communication in manufacturing plants, warehouses, and factory floors.
- Outdoor Applications: Works well in outdoor environments like outdoor substations or agriculture.
- Transportation: Perfect for use in vehicles or mobile applications where consistent wireless communication is crucial (e.g., trains, buses, automated guided vehicles).
- Oil & Gas Industry: It can be used in harsh environments such as oil rigs and remote monitoring stations.
Installation Step:
- Unbox and Inspect: Unbox the MOXA AWK-1137C and check for any physical damage.
- Mounting: Install the device on a wall or pole using the mounting kit provided.
- Connect Power: Connect the device to an appropriate power source (12-48V DC input).
- Connect Ethernet: Attach the device to your network using the Ethernet cables (supports two LAN ports for redundancy).
- Access the Web UI: Using a computer, connect to the device via Wi-Fi or Ethernet and log in to the web-based management interface.
- Configure Settings: Set up SSID, security protocols (WPA, WPA2), and other network parameters via the intuitive UI.
- Testing & Deployment: Test the connection in different areas of the facility or environment to ensure optimal performance before full deployment.
