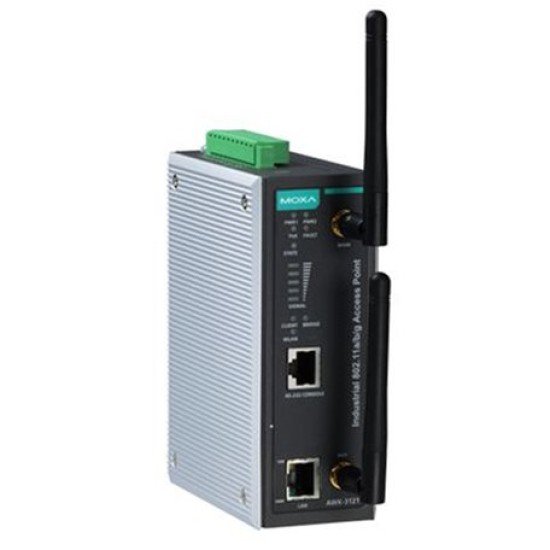

MOXA AWK-3121 Industrial Wireless Access Point
The MOXA AWK-3121 is an industrial wireless access point, bridge and client designed to provide reliable wireless Ethernet connectivity for industrial automation and infrastructure networks. It supports IEEE 802.11a/b/g wireless standards and can operate across the 2.4 GHz and 5 GHz frequency bands, making it suitable for industrial environments where wireless communication is required between networked equipment and control systems.
The AWK-3121 combines wireless connectivity with an industrial Ethernet interface, serial console interface, digital inputs and relay output. Its metal enclosure, IP30 protection, DIN-rail mounting and redundant power inputs make it suitable for industrial control cabinets, automation networks and infrastructure deployments.
Technical Specifications
| Brand |
MOXA |
| Model |
AWK-3121 Series |
| Product Type |
Industrial Wireless Access Point / Bridge / Client |
| Wireless Standards |
IEEE 802.11a/b/g |
| Frequency Bands |
2.4 GHz and 5 GHz, model/regional configuration dependent |
| Wireless Modes |
Access Point, Bridge and Client |
| 802.11b Data Rates |
1, 2, 5.5 and 11 Mbps |
| 802.11a/g Data Rates |
6, 9, 12, 18, 24, 36, 48 and 54 Mbps |
| Ethernet Port |
1 x 10/100BaseT(X) RJ45 with auto-negotiation and Auto MDI/MDI-X |
| Console Port |
RS-232, RJ45-type |
| Digital Inputs |
2 electrically isolated inputs |
| Relay Output |
1 relay output, 1 A @ 24 VDC |
| Default Antennas |
2 x dual-band omnidirectional antennas, 2 dBi, RP-SMA |
| Wireless Security |
64/128-bit WEP, WPA/WPA2-Personal and Enterprise, IEEE 802.1X/RADIUS, TKIP and AES |
| Firewall |
MAC, IP, protocol and port-based filtering |
| Network Protocols |
IP, ICMP, TCP, UDP, HTTP, HTTPS, SNMP, RADIUS, DHCP, SNTP and PPPoE |
| Power Input |
Dual redundant DC power inputs; exact voltage depends on model variant |
| PoE |
Supported on earlier hardware revisions; PoE support was discontinued starting with hardware revision 2.0.0 |
| Housing |
Metal |
| IP Rating |
IP30 |
| Dimensions |
54 x 135 x 105 mm |
| Weight |
Approximately 850 g |
| Installation |
DIN-rail mounting |
Industrial Wireless Connectivity
The MOXA AWK-3121 provides wireless Ethernet connectivity for industrial applications where cabling between network segments or mobile equipment is difficult. Its AP, bridge and client operating modes allow it to be integrated into different wireless network architectures.
In Access Point mode, the AWK-3121 can provide wireless connectivity to compatible clients. Bridge mode can connect separate Ethernet network segments through a wireless link, while Client mode can provide wireless network access to equipment connected through the Ethernet interface.
Industrial Ethernet and I/O Integration
The device includes a 10/100BaseT(X) Ethernet port with auto-negotiation and Auto MDI/MDI-X, allowing it to connect with industrial switches, controllers and other Ethernet-based equipment. The RS-232 console interface provides local configuration access.
Two electrically isolated digital inputs and one relay output provide additional industrial signaling capability. These interfaces can be used for monitoring device status or integrating the wireless unit into an industrial control and alarm architecture.
Wireless Security and Network Management
The AWK-3121 supports industrial wireless security features including WEP, WPA/WPA2-Personal and Enterprise authentication, IEEE 802.1X/RADIUS and TKIP/AES encryption. Firewall functions provide MAC, IP, protocol and port-based filtering for network access control.
Management and communication protocols include HTTP, HTTPS, SNMP, DHCP, SNTP and other standard IP networking protocols. The AWK-3121 series can also be managed through Moxa network management tools where the applicable firmware version is supported.
Industrial Deployment and Compatibility
The AWK-3121 uses a rugged metal IP30 enclosure and DIN-rail installation format. The platform was designed for industrial automation, factory networking and infrastructure applications requiring dependable wireless communication.
Because the AWK-3121 is an older-generation platform, compatibility should be checked carefully before purchasing. Moxa has officially phased out the AWK-3121 Series and replaced it with the AWK-1131A Series. For legacy replacement or maintenance projects, the exact AWK-3121 regional model, firmware, antenna configuration and power requirements should be verified.
Buy MOXA AWK-3121 in Bangladesh
For the latest MOXA AWK-3121 price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
