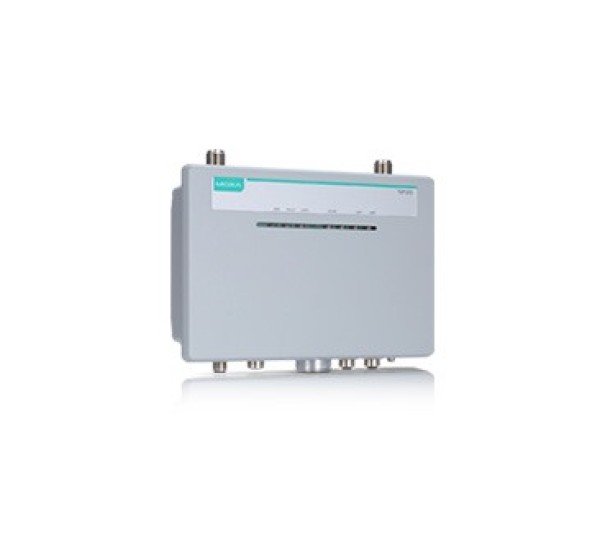

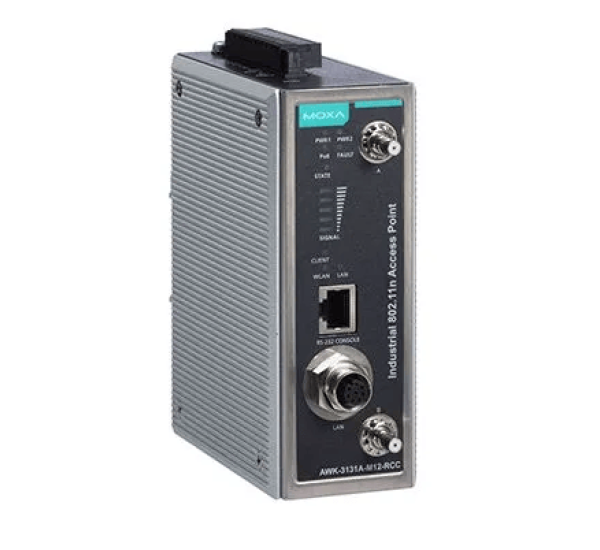

MOXA AWK-3131A-M12-RCC-EU-CT-T Industrial M12 Wireless AP/Client (Rugged, Wide Temp)
The MOXA AWK-3131A-M12-RCC-EU-CT-T Industrial Wireless AP/Client from Datacom Technologies BD is designed for harsh, mobile, and vibration-intensive environments. Featuring dual-radio 802.11a/b/g/n Wi-Fi, rugged M12 power and Ethernet connectors, and wide-temperature endurance, this device ensures dependable wireless communication in railways, heavy vehicles, outdoor automation, and industrial sites exposed to shock, dust, and moisture.
Specification Table
| Feature | Details |
|---|
| Model | MOXA AWK-3131A-M12-RCC-EU-CT-T |
| Type | Industrial M12 Wireless AP/Client |
| Wi-Fi Standard | IEEE 802.11a/b/g/n (Dual-Radio) |
| Operating Modes | AP, Client, AP Client, WDS Bridge |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Wireless Speed | Up to 300 Mbps |
| Ethernet Port | 1× Gigabit Ethernet via rugged M12 connector |
| Antennas | 3× External SMA Antennas |
| Power Input | 12–48 VDC (M12 Power Connector) |
| Protection | IP-rated housing, EMI/EMS protection, surge, vibration, dust and moisture resistance |
| Operating Temperature | –40 °C to 75 °C |
| Mounting | Wall, Panel, Vehicle, Industrial Mount |
| Dimensions | Approx. 135 × 105 × 65 mm |
| Weight | Approx. 1.2 kg |
| Certifications | CE, FCC, EN 61000, Industrial/Railway-grade |
| Management | MXview, Web GUI, CLI |
MOXA AWK-3131A-M12-RCC-EU-CT-T Description
The MOXA AWK-3131A-M12-RCC-EU-CT-T is engineered for mobile, outdoor, and industrial environments where reliability and rugged design are essential. Dual-radio wireless ensures flexible connectivity across 2.4 GHz and 5 GHz bands, while rugged M12 connectors protect against vibration and shock — perfect for trains, buses, heavy machinery, mining vehicles, and outdoor control systems.
Its wide operating temperature tolerance and IP-rated durability make it ideal for environments exposed to dust, water, and extreme weather. With multiple operation modes like AP, Client, and WDS Bridge, it can be deployed in diverse topologies, making it suitable for SCADA, on-vehicle Wi-Fi, and industrial automation.
Key Features
• Dual-radio IEEE 802.11a/b/g/n wireless
• Rugged M12 Ethernet and power connectors
• Vibration-proof, dust-proof, moisture-resistant industrial housing
• Wide –40 °C to 75 °C temperature range
• Supports AP, Client, AP Client, and WDS Bridge
• Ideal for mobile, outdoor, and industrial environments
• Strong EMI/EMS and surge protection
• Managed via MXview, Web GUI, or CLI
Where It Can Be Used
• Railway and metro communication systems
• On-vehicle networks (train, bus, industrial equipment)
• Outdoor industrial automation
• Oil, gas, and mining field operations
• Smart city outdoor infrastructure
• Remote industrial IoT and SCADA systems
Installation Steps
-
Mount the unit using wall, panel, or vehicle brackets
-
Connect 12–48 VDC power using M12 connector
-
Attach external SMA antennas
-
Connect Ethernet cable via M12 Ethernet port
-
Select AP, Client, AP Client, or WDS Bridge mode
-
Configure SSID, security, and wireless settings
-
Set DHCP or static IP
-
Apply firewall and security settings, then test signal
