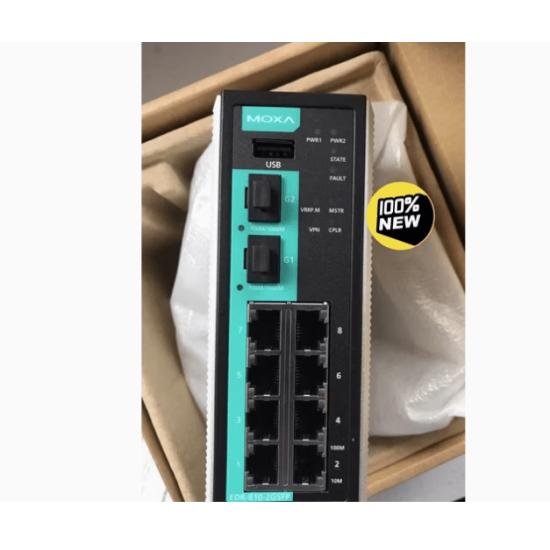

MOXA EDR-810-2GSFP Industrial Secure Router
The MOXA EDR-810-2GSFP is an industrial secure router designed to combine Ethernet switching, routing, firewall and NAT functionality in a rugged industrial networking platform. It provides 8 × 10/100BaseT(X) RJ45 Ethernet ports and 2 × 100/1000Base SFP slots, allowing industrial networks to connect copper Ethernet devices with Gigabit fiber or Ethernet uplinks.
The EDR-810-2GSFP is designed for industrial environments where network segmentation and security are important. Its integrated firewall and NAT functions can be used to separate industrial network segments, control traffic and provide an additional layer of protection between connected networks.
Technical Specifications
| Model |
MOXA EDR-810-2GSFP |
| Product Type |
Industrial Secure Router |
| RJ45 Ethernet Ports |
8 × 10/100BaseT(X) |
| SFP Slots |
2 × 100/1000Base SFP |
| Firewall |
Integrated firewall |
| NAT |
Supported |
| VPN |
Not included on the standard EDR-810-2GSFP model |
| Routing Throughput |
Up to 100 Mbps / 10,000 packets per second |
| Routing |
Static Route, RIP v1/v2 and OSPF |
| Routing Redundancy |
VRRP |
| Switch Redundancy |
STP, RSTP and Turbo Ring v2 |
| VLAN |
IEEE 802.1Q, VLAN ID 1–4094 |
| Maximum VLANs |
16 |
| IGMP Groups |
256 |
| Management |
Web Console, HTTPS, SSH, Telnet, SNMPv1/v2c/v3, TFTP and LLDP |
| Security |
Firewall, HTTPS/SSL, SSH, RADIUS and security filtering features |
| Power Input |
12/24/48 VDC redundant dual inputs |
| Operating Voltage |
9.6 to 60 VDC |
| Housing |
Metal |
| IP Rating |
IP40 |
| Installation |
DIN-rail mounting; optional wall mounting |
| Dimensions |
45 × 135 × 105 mm |
| Operating Temperature |
-10°C to 60°C |
| Relative Humidity |
5% to 95%, non-condensing |
| Warranty |
5 years |
Industrial Network Security
The EDR-810-2GSFP combines industrial routing with firewall and NAT capabilities. It can be deployed between industrial network segments to control communication and provide security policies for Ethernet-based automation infrastructure. Supported functions include IP, MAC and port filtering, DoS/DDoS protection features, authentication and secure management protocols.
Industrial Ethernet and Fiber Connectivity
Eight 10/100BaseT(X) RJ45 ports provide copper Ethernet connectivity for industrial equipment, while two 100/1000Base SFP slots support compatible SFP transceivers for fiber or Gigabit Ethernet uplinks. This combination allows the router to serve as an industrial network aggregation and security point.
Industrial Applications
- Industrial automation networks
- Factory Ethernet infrastructure
- PLC and HMI network segmentation
- SCADA and process-control networks
- Industrial DMZ deployments
- Machine networking
- Transportation and traffic-control networks
- Industrial network security and routing
Product Status and Replacement
The MOXA EDR-810 Series has been phased out by Moxa and is listed as an end-of-life product. Moxa identifies the EDR-8010 Series as its replacement family. The EDR-810-2GSFP may therefore be relevant for legacy-system maintenance, existing-network expansion, replacement projects or applications that specifically require this model. Availability should be confirmed before purchase.
MOXA EDR-810-2GSFP Price in Bangladesh
For the latest MOXA EDR-810-2GSFP price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
