| Specification | Details |
|---|
| Model Series | Moxa EDS‑2005‑EL Series Unmanaged Industrial Ethernet Switches | | Ethernet Ports | 5 × 10/100BaseT(X) RJ45 (Fast Ethernet) with Auto MDI/MDI‑X & Auto negotiation | | Speed / Duplex | 10/100 Mbps, Full/Half duplex | | Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1p, IEEE 802.3x | | Switching Type | Store & Forward | | MAC Table Size | ~2 K entries | | Packet Buffer Size | ~768 kbits | | DIP Switch Config | Quality of Service (QoS), Broadcast Storm Protection (BSP) | | Power Input | 12/24/48 VDC (9.6 – 60 V) | | Protections | Overload & Reverse Polarity Protection | | Power Connector | 1 removable 2‑contact terminal block | | Housing | IP40‑rated metal enclosure | | Mounting | DIN‑rail or wall (optional kit) | | Operating Temp | –10 °C to 60 °C (standard); –40 °C to 75 °C (‑T models) | | Humidity | 5 – 95 % non‑condensing | | Certifications | UL 61010‑2‑201, EN 62368‑1, EN 55032/35 EMC/EMI standards | | MTBF | ~4.8 million hours | | Weight | ~105 g |
|
|

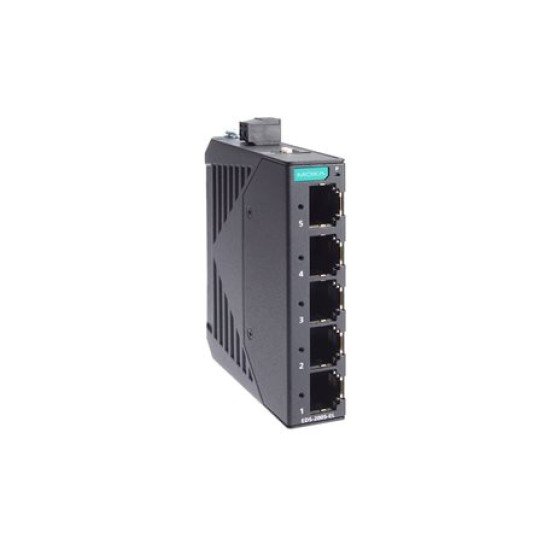

Moxa EDS-2005-EL Ethernet Switch Description:
The Moxa EDS‑2005‑EL Series is a family of industrial‑grade unmanaged Ethernet switches designed to deliver dependable, plug‑and‑play connectivity in demanding environments where simplicity and reliability are key. These compact switches provide five 10/100BaseT(X) RJ45 ports that support auto negotiation and auto MDI/MDI‑X, making them ideal for connecting industrial devices such as PLCs, sensors, and automation controllers without requiring any configuration.
Built with an IP40‑rated rugged metal housing, the EDS‑2005‑EL Series withstands physical stress and electrical noise typical of industrial settings. Users can enable Quality of Service (QoS) and Broadcast Storm Protection (BSP) via simple DIP switches on the unit to help prioritize time‑critical traffic and protect the network from excessive broadcast traffic.
The switches accept a wide 12/24/48 VDC power input range with built‑in overload and reverse polarity protection, enhancing reliability where power fluctuations occur. They are designed for flexible deployment with DIN‑rail mounting and optional wall‑mount kits, and they operate reliably in temperatures from –10 °C to 60 °C, with extended wide‑temperature variants available for harsher conditions.
Comprehensive industrial safety and EMC certifications, a high MTBF rating, and a 1‑year warranty make the EDS‑2005‑EL a solid choice for simple unmanaged Ethernet infrastructure in industrial automation, transportation, and process control networks.
Why Choose Moxa EDS‑2005‑EL Series 5‑Port Industrial Ethernet Switches From Datacom Technologies BD
The
Moxa EDS‑2005‑EL Series delivers dependable network expansion for industrial automation, manufacturing, and machine‑to‑machine communication. These entry‑level, unmanaged Ethernet switches are built with rugged industrial hardware to provide stable connectivity, simple plug‑and‑play setup, and long‑term reliability for a wide range of industrial applications.
Key Features & Benefits
Industrial‑Grade Build & Connectivity
- 5 × 10/100BaseT(X) RJ45 Ports — Provides fast Ethernet connections for devices without configuration.
- Unmanaged Plug‑and‑Play — Install and operate instantly with no software or configuration required.
- Quality of Service (QoS) — Prioritizes critical data to keep important traffic flowing smoothly.
- Broadcast Storm Protection (BSP) — Helps maintain uptime by preventing traffic overloads.
Designed for Harsh Industrial Environments
- Rugged Metal Housing (IP40‑Rated) — Durable chassis ideal for factory floors and control panels.
- DIN‑Rail Mountable — Compact design fits easily into industrial racks and cabinets.
- Wide Voltage Support (12/24/48 VDC) — Matches common industrial power supplies.
- Wide Temperature Range — Standard models operate from −10°C to 60°C; extended (‑T) models support −40°C to 75°C for extreme conditions.
- High‑Level EMI/EMC Capability — Reliable operation in electrically noisy environments.
Why This Switch Is a Smart Choice
Easy Deployment & Minimal Maintenance
- The unmanaged design means you can install this switch quickly and without network expertise — a great choice for systems that need reliable, maintenance‑free connectivity.
Stable Performance in Industrial Networks
- With support for QoS and BSP via DIP switches, the EDS‑2005‑EL Series helps maintain consistent data flow and prevents network congestion in demanding environments.
Durable & Reliable Hardware
- The robust metal housing and industrial‑grade electronics ensure long‑lasting performance even in vibration‑prone, dusty, or harsh temperature conditions.
Common Use Cases
- Factory & Assembly Line Networks
- PLC, Sensors & Machine Connectivity
- Industrial CCTV & Process Monitoring
- SCADA & Remote Device Networking
- IoT Connectivity in Control Systems
Why Buy From Datacom Technologies BD
- Guaranteed Authentic Moxa Products
- Competitive Pricing for Industrial Networks
- Technical Support & After‑Sales Service in Bangladesh
- Local Delivery & Fast Fulfillment
Buy Moxa EDS-2005-EL Series 5-Port Industrial Ethernet Switches at the Best Price from Datacom Technologies BD.
In Bangladesh, you can get Moxa EDS-2005-EL Series 5-Port Industrial Ethernet Switches From Datacom Technologies BD. We have a large collection of latest Cisco Network Switch to purchase. Order Online Or Visit our Office to get yours at lowest price. The Moxa EDS-2005-EL Series 5-Port Industrial Ethernet Switches comes with 1 Year warranty.
