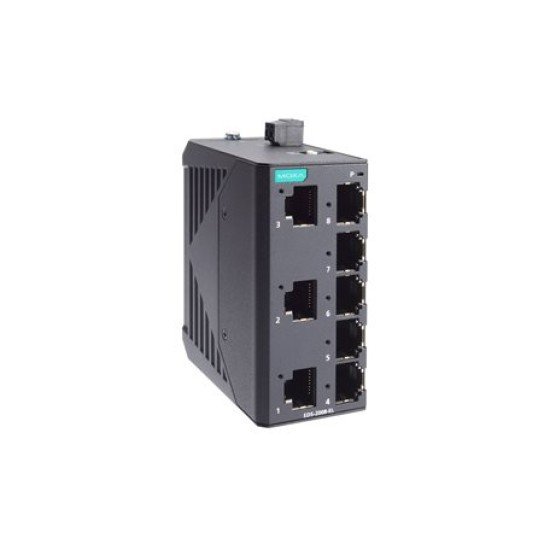

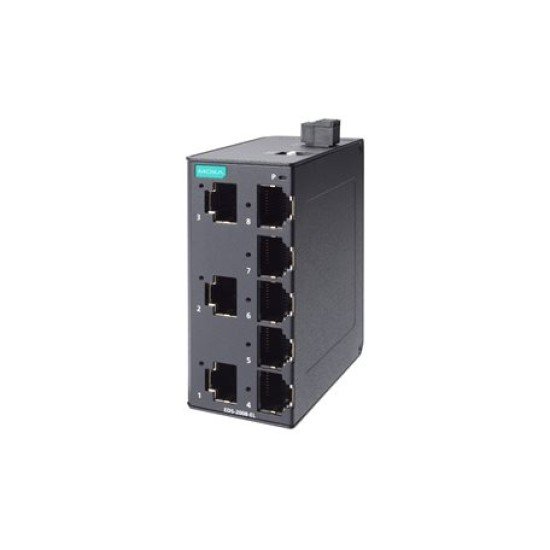

Moxa EDS-2008-EL Series 8-Port Industrial Ethernet Switches Specification Table:Specification |
Details |
|---|
| Model Series | Moxa EDS‑2008‑EL Series Unmanaged Industrial Ethernet Switches |
| Ports | 8 × 10/100BaseT(X) RJ45 copper ports (standard) |

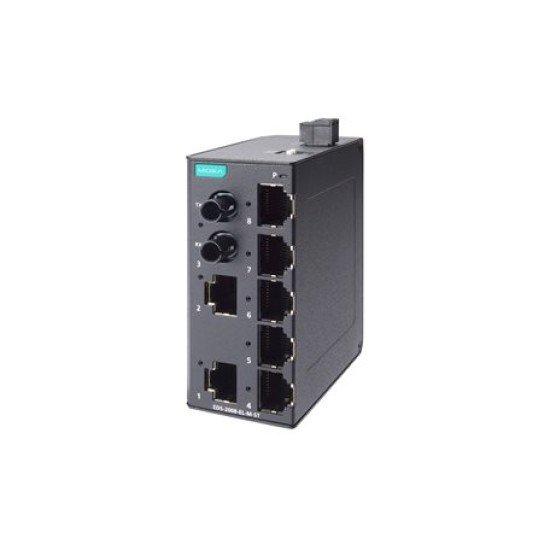

| Optional Fiber Versions | EDS‑2008‑EL‑M‑SC / EDS‑2008‑EL‑M‑ST with 7 RJ45 + 1 fiber port |
| Speed / Duplex | 10/100 Mbps, Full/Half duplex, Auto negotiation, Auto MDI/MDI‑X |
| Switching Type | Store & Forward |
| MAC Table Size | ~8 K entries |
| Packet Buffer | ~4 Mbits |
| QoS & BSP | Quality of Service & Broadcast Storm Protection (via DIP switches) |
| Power Input | 12/24/48 VDC (operating range: 9.6–60 VDC) |
| Protections | Overload & reverse polarity protection |
| Housing | IP40‑rated rugged metal enclosure |
| Mounting | DIN‑rail; wall mount with optional kit |
| Operating Temp | –10 °C to 60 °C (standard); –40 °C to 75 °C (‑T models) |
| Humidity | 5 – 95 % non‑condensing |
| Certifications | PROFINET Conformance Class A1 (hardware dependent), EN/UL/EMC standards |
| MTBF | High industrial reliability (typical > millions of hours) |
| Weight | ~163 g (varies by model) |
Description For Moxa EDS-2008-EL Series 8-Port Industrial Ethernet Switches
The Moxa EDS‑2008‑EL Series is a family of industrial‑grade unmanaged Ethernet switches built for robust, plug‑and‑play connectivity in demanding environments. With eight 10/100BaseT(X) RJ45 ports as standard, this series supports auto negotiation and auto MDI/MDI‑X, enabling straightforward integration with industrial devices like PLCs, sensors, and controllers without requiring configuration.
Designed for industrial automation, transportation, and process control networks, the EDS‑2008‑EL Series features a rugged IP40‑rated metal housing that provides solid protection against physical stress and electrical noise. Users can enable Quality of Service (QoS) and Broadcast Storm Protection (BSP) via simple DIP switch settings to help prioritize critical traffic and maintain network stability during heavy load conditions.
Power is supplied through a 12/24/48 VDC input with a broad operating range and built‑in overload/reverse polarity protection, enhancing reliability where power fluctuations are common. Standard models operate from –10 °C to 60 °C, while optional wide‑temperature (‑T) versions extend this range to –40 °C to 75 °C, making the switch suitable for extreme environments.
With DIN‑rail mounting and optional wall brackets, the compact switch saves space in cabinets and racks. Some variants even offer fiber connectivity options, expanding deployment flexibility. Compliance with PROFINET Conformance Class A (on supported hardware versions) and industrial EMC standards ensures interoperability and reliable performance in harsh industrial settings.
Why Choose Moxa EDS‑2008‑EL Series 8‑Port Industrial Ethernet Switches From Datacom Technologies BD
The Moxa EDS‑2008‑EL Series is an entry‑level industrial Ethernet switch designed for robust, reliable network expansion in industrial automation, factory floors, machine networks, and harsh industrial environments. Built with industrial‑grade components, this unmanaged switch delivers stable performance, easy installation, and long‑term dependability — making it an ideal networking solution for automation, CCTV, process control, and IoT connectivity.
Key Features & Technical Advantages
Industrial‑Grade Ethernet Connectivity
- 8 × 10/100BaseT(X) RJ45 Ports — Eight fast Ethernet ports deliver reliable connections for industrial devices without configuration requirements.
- Unmanaged Design — Simple plug‑and‑play setup means no software or network configuration needed — just power and connect.
- Quality of Service (QoS) — Prioritizes critical data in heavy traffic scenarios to ensure smooth communication.
- Broadcast Storm Protection (BSP) — Helps maintain network availability by preventing traffic overloads.
- Rugged IP40‑Rated Metal Housing — Protects against dust and supports DIN‑rail mounting for control cabinets and industrial racks.
- Wide Voltage Support (12/24/48 VDC) — Compatible with standard industrial power sources.
- Wide Temperature Range — Standard models operate from −10°C to 60°C, while ‑T variants support −40°C to 75°C for extreme environments.
Why This Switch Is a Smart Choice
Simple, Reliable Networking
- The unmanaged architecture eliminates setup complexities — ideal for projects that need fast deployment and minimal maintenance. There’s no need for software, IP addressing, or management consoles.
Stable Industrial Performance
- With QoS and BSP, the EDS‑2008‑EL Series optimizes data flows and prevents network congestion, keeping traffic steady even in demanding industrial applications.
Rugged & Durable for Industry
- Designed for harsh environments, these switches withstand vibration, electrical noise, and temperature variations — ensuring consistent performance over the long haul.
Flexible Deployment
- Standard metal housing and DIN‑rail mounting make the EDS‑2008‑EL easy to install in factories, control panels, and machine cabinets.
Common Use Cases
- Factory Automation Networks
- PLC & Sensor Connections
- SCADA and Process Control Systems
- Industrial CCTV & Surveillance
- Distributed IoT Device Connectivity
Why Buy From Datacom Technologies BD
- Authentic Moxa Products – Guaranteed industrial‑grade quality and warranty support
- Fast Local Delivery in Bangladesh
- ????Technical Support & Installation Guidance
- Competitive Pricing on Industrial Networking Solutions
Buy Moxa EDS-2008-EL Series 8-Port Industrial Ethernet Switches at the Best Price from Datacom Technologies BD.
In Bangladesh, you can get Moxa EDS-2008-EL Series 8-Port Industrial Ethernet Switches From Datacom Technologies BD. We have a large collection of latest Moxa Network Switch to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The Moxa EDS-2008-EL Series 8-Port Industrial Ethernet Switches comes with 1 Year warranty.
