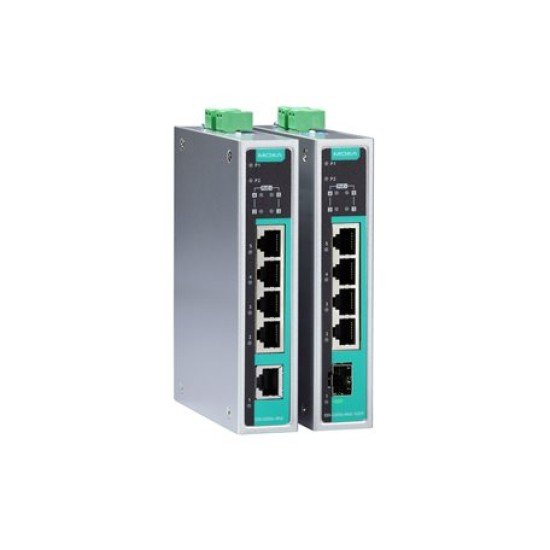

Moxa EDS-G205A Series Reliable 5-Port Gigabit PoE+ Unmanaged Ethernet SwitchSpecification |
Details |
|---|
| Series | Moxa EDS-G205A Series |
| Switch Type | Unmanaged Industrial Gigabit Ethernet Switch |
| Total Ports | 5 × 10/100/1000BaseT(X) |
| PoE Ports | 4 × IEEE 802.3af/at PoE+ (Ports 2–5) |
| PoE Power Output | Up to 36 W per PoE port |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Switching Mode | Store and Forward |
| MAC Address Table | 8K |
| Packet Buffer | 1 Mbit |
| Jumbo Frame | Up to 9.6 KB |
| Auto Features | Auto-negotiation, Auto MDI/MDI-X |
| Power Input | 12/24/48 VDC, redundant dual inputs |
| Protection | Overload current & reverse polarity protection |
| Power Consumption | Max. 11.73 W (without PD load) |
| Operating Temperature | 0 to 60 °C (standard), –40 to 75 °C (-T models) |
| Storage Temperature | –40 to 85 °C |
| Housing | Rugged metal, IP30 |
| Mounting | DIN-rail, wall mount (optional) |
| Dimensions | 29 × 135 × 105 mm |
| Certifications | EMC EN 61000-6-2/6-4, UL, FCC |
| Warranty | 3 years |
Description For Moxa EDS-G205A Series 5-Port Gigabit PoE+ Ethernet Switch
The Moxa EDS-G205A Series is a reliable 5-port Gigabit unmanaged Ethernet switch designed specifically for industrial networking environments where stability, simplicity, and durability are essential. Equipped with five full Gigabit Ethernet ports, the switch ensures high-speed data transmission for bandwidth-intensive industrial applications such as IP surveillance, factory automation, and intelligent transportation systems.
Four of the Ethernet ports support IEEE 802.3af/at PoE+, delivering up to 36 W of power per port, allowing the switch to directly power devices such as IP cameras, wireless access points, and industrial sensors. This centralized power delivery reduces wiring complexity and lowers installation costs. The EDS-G205A Series intelligently detects and classifies powered devices, while built-in over-current and short-circuit protection ensures safe and stable operation.
As an unmanaged switch, the EDS-G205A offers true plug-and-play operation with no configuration required, making it ideal for quick deployment. Its rugged metal IP30 housing, redundant 12/24/48 VDC power inputs, and support for wide operating temperatures ensure dependable performance in harsh industrial environments. With long-term reliability and a 5-year warranty, the Moxa EDS-G205A Series is a cost-effective and trusted solution for industrial Gigabit PoE networking.
Moxa EDS‑G205A Series – Reliable 5‑Port Gigabit PoE+ Unmanaged Ethernet Switch
Looking for a powerful, compact, and reliable industrial Ethernet switch? The Moxa EDS‑G205A Series offers 5 full Gigabit ports, including 4 PoE+ ports to deliver both data and power over a single cable. Designed for industrial automation, smart factories, CCTV surveillance, IoT networks, and access control systems, this unmanaged switch ensures fast, stable, and hassle-free connectivity in even the harshest environments.
⚡ Key Features That Make EDS‑G205A Stand Out
- Full Gigabit & PoE+ Support – Four IEEE 802.3af/at PoE+ ports deliver up to 36 W per port, powering devices like IP cameras, wireless access points, sensors, and VoIP phones without extra adapters.
- Smart Power Management – Ensures safe, efficient, and reliable PoE delivery with overcurrent, short-circuit protection, and automatic power allocation.
- Unmanaged Plug‑and‑Play – No complex setup required; just install, connect, and start transmitting data instantly. Perfect for quick deployments.
- Dual Redundant Power Inputs – Supports 12/24/48 VDC for continuous operation even if one power source fails, ensuring uninterrupted network uptime.
- Rugged Industrial Design – IP30 metal housing with DIN-rail mounting resists vibration, shock, and electrical noise, built to last in harsh industrial environments.
- Wide Temperature Range – Operates from 0 °C to 60 °C, and extended models up to ‑40 °C to 75 °C, making it ideal for indoor and outdoor industrial applications.
Why Choose Moxa EDS‑G205A?
The EDS‑G205A Series combines industrial reliability, Gigabit speed, and PoE+ power in a compact, cost-effective package. It’s the perfect choice for critical applications where uptime, safety, and performance are non-negotiable.
- Industrial Automation & Smart Factories – Connect PLCs, controllers, and sensors.
- CCTV & Security Systems – Power and connect IP cameras with a single cable.
- IoT & Wireless Networks – Reliable backbone for smart building devices.
- Access Control & Energy Systems – Keep essential systems running without downtime.
Buy from Datacom Technologies BD
Get genuine Moxa products with local warranty, expert support, and fast delivery in Bangladesh from Datacom Technologies BD. Ensure reliable industrial networking, backed by a trusted distributor with competitive pricing.
Buy Moxa EDS-G205A Series Reliable 5-Port Gigabit PoE+ Unmanaged Ethernet Switch at the Best Price from Datacom Technologies BD.
In Bangladesh, you can get Moxa EDS-G205A Series Reliable 5-Port Gigabit PoE+ Unmanaged Ethernet Switch From Datacom Technologies BD. We have a large collection of latest Moxa Ethernet Switch to purchase. Order Online Or Visit our Office to get yours at lowest price. The Moxa EDS-G205A Series Reliable 5-Port Gigabit PoE+ Unmanaged Ethernet Switch comes with 3 Years warranty.
