- Product id: 2014
- Stock: In Stock
- Brand: MOXA
- Model: ICF-1150
on Whatsapp
Key Features
- 3-in-1 Serial Interface – Supports RS-232, RS-422 and RS-485 communication for flexible industrial serial device connectivity.
- Long-Distance Fiber Transmission – Extends serial communication over optical fiber with multi-mode and single-mode fiber options.
- Automatic RS-485 Data Direction – Moxa ADDC technology automatically controls RS-485 data direction without requiring an additional handshaking signal.
- Industrial-Grade Deployment – Rugged DIN-rail/wall-mountable design with redundant power input and electrical isolation for demanding industrial environments.

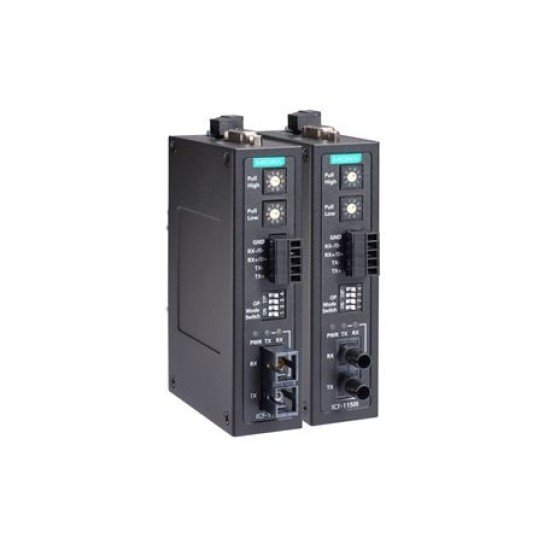

MOXA ICF-1150 Industrial Serial-to-Fiber Converter
The MOXA ICF-1150 is an industrial-grade serial-to-fiber converter designed to connect RS-232, RS-422 or RS-485 serial equipment over optical fiber. Its 3-in-1 serial interface provides flexibility for industrial automation systems, factory networks and distributed serial communication applications where long-distance transmission and electrical isolation are important.
By converting serial communication to fiber, the ICF-1150 helps extend communication distances while reducing the effects of electromagnetic interference and ground potential differences. The converter supports both multi-mode and single-mode fiber configurations, allowing the appropriate model to be selected according to transmission distance and fiber infrastructure.
Technical Specifications
| Brand | MOXA |
|---|---|
| Model | ICF-1150 |
| Product Type | Industrial Serial-to-Fiber Converter |
| Serial Standards | RS-232, RS-422, RS-485 |
| Serial Modes | RS-232, RS-422, 2-wire RS-485, 4-wire RS-485 |
| Serial Connector | Terminal block |
| Fiber Connector | ST or SC, depending on model |
| Fiber Type | Multi-mode or single-mode, depending on model |
| Fiber Transmission | Model and fiber dependent |
| Baud Rate | Up to 921.6 kbps |
| RS-485 Control | ADDC automatic data-direction control |
| Power Input | 12 to 48 VDC |
| Power Inputs | Dual redundant power inputs |
| Installation | DIN rail or wall mounting |
| Housing | Metal |
| Protection | IP30 |
| Operating Temperature | Model dependent |
RS-232, RS-422 and RS-485 Connectivity
The ICF-1150 provides a flexible serial interface supporting RS-232, RS-422 and RS-485. This makes it suitable for connecting different types of serial equipment without requiring separate converter platforms for each serial standard. RS-485 operation supports both 2-wire and 4-wire configurations.
Serial-to-Fiber Conversion
The converter transforms serial data into optical signals for transmission over fiber. Optical communication is particularly useful when serial devices are located far apart or when copper serial cabling would be susceptible to electrical interference. The exact transmission distance depends on the selected ICF-1150 fiber variant, fiber type and optical link characteristics.
ADDC Automatic Data Direction Control
For RS-485 applications, Moxa's ADDC technology automatically manages data direction. This simplifies half-duplex RS-485 communication by eliminating the need for an additional handshaking signal to control transmit and receive direction.
Industrial Power and Installation
The ICF-1150 is designed for industrial environments and supports 12 to 48 VDC power input. Redundant power inputs can improve availability in installations where continuous serial communication is important. Its compact metal housing supports DIN-rail or wall-mounted deployment.
Electrical Isolation and EMI Protection
Fiber-optic transmission provides electrical separation between the connected serial devices. This helps reduce problems caused by ground loops, ground potential differences and electromagnetic interference. The ICF-1150 is therefore suitable for industrial facilities where serial communication equipment may be distributed across electrically noisy areas.
Industrial Applications
- Industrial automation systems
- PLC and RTU communication
- Factory control networks
- SCADA communication
- RS-232/422/485 device integration
- Long-distance serial communication
- Industrial machine networking
- Data acquisition systems
- Electrically noisy industrial environments
Compatibility Considerations
The ICF-1150 is a serial-to-fiber converter and should not be confused with an Ethernet-to-fiber media converter or an Ethernet serial device server. Before purchase, verify the required serial interface, fiber type, optical connector and operating-temperature variant. Exact optical specifications can vary between ICF-1150 models.
MOXA ICF-1150 Price in Bangladesh
For the latest MOXA ICF-1150 price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
