Key Features
- RS-232 to Fiber Conversion – Converts RS-232 serial communication to optical fiber for reliable long-distance data transmission.
- 40 km Single-Mode Transmission – Supports up to 40 km typical transmission distance over G.652 single-mode fiber.
- ST Fiber Interface – Features a single-mode ST fiber connector with 1310 nm optical wavelength and a 20 dB typical link budget.
- Port-Powered Design – Can draw power from the attached serial port, with optional 5–12 VDC external power when additional power is required.

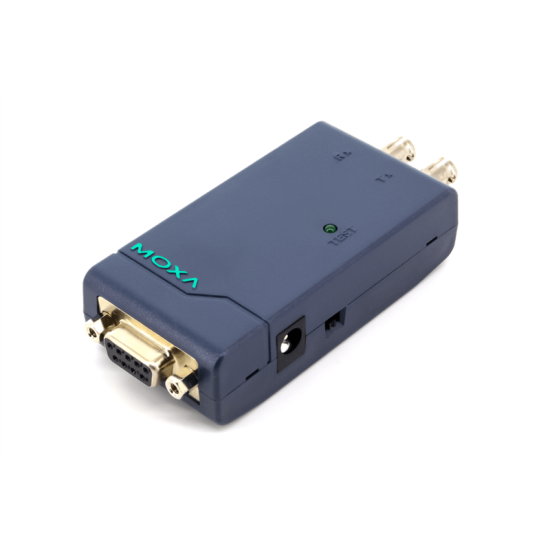

MOXA TCF-90-S-ST RS-232 to Single-Mode ST Fiber Optic Converter
The MOXA TCF-90-S-ST is a compact RS-232 to single-mode ST fiber optic converter designed to extend serial communication over long distances using optical fiber. It provides a reliable point-to-point connection between two RS-232 devices through single-mode fiber, making it suitable for industrial automation, remote serial device communication, building security systems and other applications where conventional RS-232 cable distance is insufficient.
As part of the Moxa TCF-90 Series, the TCF-90-S-ST uses a single-mode ST fiber interface and provides a typical transmission distance of up to 40 km. Optical fiber also provides electrical isolation between connected devices, helping protect serial communication from ground potential differences, ground loops and electrical EMI/RFI interference.
Technical Specifications
| Brand | MOXA |
|---|---|
| Model | TCF-90-S-ST |
| Product Type | RS-232 to Single-Mode Fiber Optic Converter |
| Serial Standard | RS-232 |
| Serial Ports | 2 |
| Serial Connector | DB9 Female |
| RS-232 Signals | TxD, RxD, GND |
| Baudrate | 300 bps to 115.2 kbps |
| Fiber Type | Single-Mode |
| Fiber Connector | ST |
| Fiber Standard | G.652 |
| Typical Fiber Distance | Up to 40 km |
| Wavelength | 1310 nm |
| TX Wavelength Range | 1290 to 1330 nm |
| RX Wavelength Range | 1100 to 1650 nm |
| Typical Link Budget | 20 dB |
| Input Voltage | 5 to 12 VDC |
| Maximum Input Current | 20 mA |
| Power Source | Serial port power or external power input |
| Housing | Plastic |
| IP Rating | IP30 |
| Dimensions | 42 x 80 x 22 mm |
| Installation | Desktop |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 75°C |
| Relative Humidity | 5 to 95%, non-condensing |
| Warranty | 5 years |
Long-Distance RS-232 Communication over Fiber
The TCF-90-S-ST extends traditional RS-232 communication beyond the normal limitations of copper serial cabling by transmitting data through single-mode optical fiber. With a typical distance of up to 40 km, it is well suited for remote serial equipment and installations where devices are separated by long distances.
The optical connection also provides an effective separation between the electrical environments of connected devices. This can help reduce the impact of ground loops, ground potential differences and electromagnetic or radio-frequency interference on serial communication.
Port-Powered Operation
A key feature of the TCF-90-S-ST is its compact port-powered design. Under suitable conditions, the converter can obtain operating power from the connected serial interface. Moxa also provides an external 5–12 VDC power input for situations where the connected device does not provide sufficient serial-port power or when the required handshake conditions are unavailable.
Applications
- RS-232 point-to-point communication
- Long-distance serial device connectivity
- Industrial automation systems
- Remote serial device control
- Factory automation
- Building security automation
- Serial equipment separated by long cable distances
- Applications requiring optical isolation from electrical interference
Compatibility Considerations
The TCF-90-S-ST is specifically designed for RS-232 and single-mode ST fiber. It should not be selected as a general RS-422 or RS-485 converter. For a fiber connection between two RS-232 devices, a compatible pair of TCF-90 converters can be used for full-duplex communication. Ensure that the connected fiber infrastructure is compatible with the single-mode G.652 specification and ST connector required by this model.
MOXA TCF-90-S-ST Price in Bangladesh
For the latest MOXA TCF-90-S-ST RS-232 to Single-Mode ST Fiber Optic Converter price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
Contact: sales@datacom.com.bd
Datacom Technologies (BD) can assist with product selection based on serial interface requirements, fiber type, connector type and required transmission distance.
