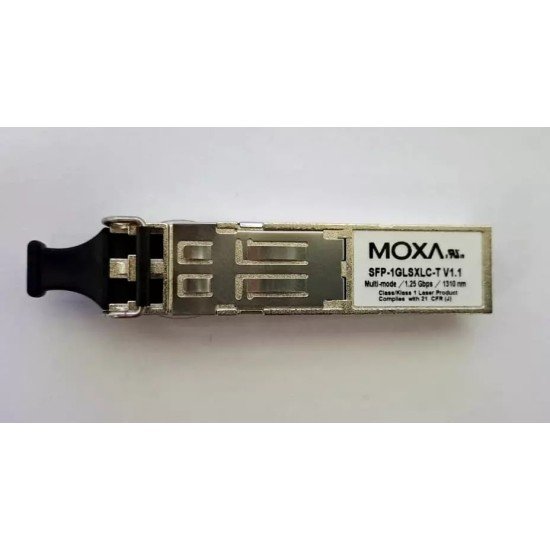

MOXA SFP-1GLSXLC-T V1.1 Transceiver

MOXA SFP-1GLSXLC-T V1.1 Transceiver
Share:
MOXA SFP-1GLSXLC-T V1.1 Transceiver
  • Product id:  2090
  • Stock: In Stock
  • Brand: MOXA
  • Model: SFP-1GLSXLC-T V1.1
Payment Option
Message
on Whatsapp

Key Features

  • 1G 1000BaseLSX Connectivity – Provides Gigabit Ethernet optical connectivity over multimode fiber for industrial Ethernet networks.
  • Duplex LC Interface – Uses a duplex LC connector with 1310 nm optical transmission for reliable fiber-based network links.
  • Up to 2 km Transmission – Supports typical distances from 500 m to 2 km depending on the selected OM1, OM2, OM3 or OM4 multimode fiber and cable conditions.
  • Industrial Wide-Temperature Design – Operates from -40 to 85°C with maximum power consumption of 1 W, making it suitable for demanding industrial environments.
Hotline Support: (10am - 8pm)
Get a Quote: Our team is ready to help
Email: sales@datacom.com.bd
Description

MOXA SFP-1GLSXLC-T V1.1 1000BaseLSX Gigabit Ethernet SFP Transceiver

The MOXA SFP-1GLSXLC-T V1.1 is an industrial Gigabit Ethernet SFP transceiver designed to provide reliable fiber-optic connectivity for compatible Moxa Ethernet switches, routers and other network equipment. It features a 1000BaseLSX multimode optical interface with a duplex LC connector and is designed for wide-temperature operation from -40 to 85°C.

The SFP-1GLSXLC-T operates at a typical 1310 nm wavelength and supports multimode fiber transmission. Depending on the fiber type and installation conditions, Moxa specifies typical transmission distances ranging from 500 m to 2 km. This makes the transceiver suitable for industrial Ethernet links between switches and other compatible network devices where multimode fiber is preferred.

Technical Specifications

Brand MOXA
Model SFP-1GLSXLC-T
Revision V1.1
Series SFP-1G Series
Transceiver Type Gigabit Ethernet SFP, Multimode
Ethernet Interface 1000BaseLSX
Ports 1
Connector Duplex LC
Fiber Type Multimode Fiber
Fiber Standards OM1, OM2, OM3, OM4
Wavelength 1310 nm typical
Typical Distance 500 m / 1 km / 2 km depending on fiber type
TX Wavelength Range 1270 to 1355 nm
RX Wavelength Range 1260 to 1610 nm
TX Optical Power -1 to -9 dBm
RX Optical Power -1 to -19 dBm
Link Budget 10 dB
Power Consumption Maximum 1 W
Operating Temperature -40 to 85°C
Storage Temperature -40 to 85°C
Relative Humidity 5 to 95%, non-condensing
Warranty 5 years

Multimode Fiber Transmission

The SFP-1GLSXLC-T is designed for multimode fiber and uses 1310 nm optical transmission. Moxa lists typical distances of up to 2 km for selected OM1/OM2 fiber installations, while OM3 and OM4 configurations are typically rated up to 500 m. The actual achievable distance depends on the fiber specification, optical link budget and installation conditions.

Moxa specifically notes that the maximum distances for OM1 and OM2 with the LSX transceiver may require fiber cables from specific vendors. With other cable types, the reach may be limited to 500 m. Therefore, fiber selection should be verified before deployment.

Industrial Wide-Temperature Operation

With an operating temperature range of -40 to 85°C, the SFP-1GLSXLC-T is intended for industrial Ethernet equipment deployed in environments with significant temperature variation. Its maximum power consumption is 1 W.

Compatible Network Applications

The SFP-1GLSXLC-T can be used in compatible Moxa network equipment that supports the SFP-1G series. Typical applications include industrial Ethernet switch uplinks, fiber-based switch-to-switch connections, network aggregation and fiber connectivity between industrial network devices.

Compatibility should be checked against the exact Moxa switch, router or networking platform before installation. SFP support can vary by hardware platform and firmware, so the manufacturer's compatibility documentation should be used when planning a deployment.

MOXA SFP-1GLSXLC-T V1.1 Price in Bangladesh

For the latest MOXA SFP-1GLSXLC-T V1.1 price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
