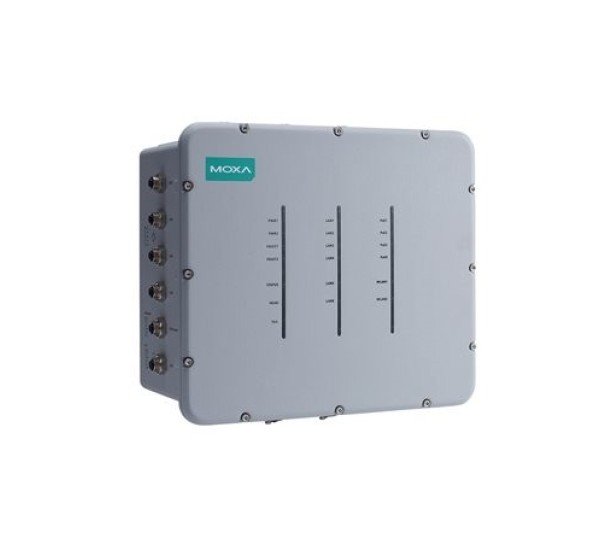

MOXA TAP-323-EU-CT-T Railway Outdoor Dual-Radio Wireless AP (Trackside, IP68, Wide-Temp)

The MOXA TAP-323-EU-CT-T Outdoor/Trackside Wireless AP from Datacom Technologies BD is engineered for rail-to-ground, trackside, and outdoor industrial wireless communication. With dual-radio 802.11n Wi-Fi, rugged IP68-rated housing, fiber uplinks and PoE ports, it delivers reliable, high-performance connectivity even under extreme weather, vibration, and temperature conditions — ideal for rail, transit, outdoor automation, CCTV backhaul, and industrial IoT deployments. Moxa+2Cloudinary+2

Specification Table

MOXA TAP-323-EU-CT-T Description

The MOXA TAP-323-EU-CT-T is a rugged dual-radio outdoor wireless access point built to tackle the toughest trackside and outdoor conditions — including exposure to weather, dust, vibration, and extreme temperatures. Its IP68-rated casing with conformal coating ensures full sealing against water and dust ingress, suitable for railway side-tracks, transit corridors, outdoor CCTV, remote industrial sites, and infrastructure communication links.

Thanks to dual radios operating simultaneously in 2.4 GHz and 5 GHz bands, TAP-323-EU-CT-T provides redundancy and enhanced reliability; in a moving-vehicle or rail-environment setup, automatic handover (controller-based Turbo Roaming) ensures constant connection stability. Fiber SFP uplinks allow backbone integration with fiber backbone networks, while 4 M12 PoE ports enable powering of edge devices like cameras, sensors, or remote network nodes — making it a complete trackside/outdoor wireless and LAN solution.

The device supports high-speed 802.11n with up to 300 Mbps throughput, suitable for CCTV video streams, telemetry data, IoT traffic, and passenger Wi-Fi / data services for trains or transit. Its wide −40 °C to 75 °C operational temperature ensures that it can operate year-round in tropical, desert, or cold-climate regions without issue.

Compliance with railway standards (EN 50155, EN 50121-4) and industrial-grade environmental protection ensures that TAP-323-EU-CT-T is suited for mission-critical trackside, transportation, and infrastructure communication — offering long-term durability and reliability.

Key Features

• Dual-radio IEEE 802.11a/b/g/n for redundancy and stable dual-band coverage

• Stackable dual-radio design with controller-based Turbo Roaming for seamless handover in mobile or moving-train environments

• IP68-rated rugged housing with metal body and conformal coating — water, dust, vibration, and weather resistant

• Supports up to 4 PoE-powered devices via M12 ports + 2 fiber SFP slots for backbone connectivity

• Wide –40 °C to 75 °C operating range for outdoor, trackside, or harsh environment deployment

• High wireless throughput (up to 300 Mbps) — suitable for CCTV, telemetry, IoT, passenger Wi-Fi

• Fully compliant with railway and industrial standards (EN 50155, EN 50121-4) for safety and electromagnetic compatibility

• Flexible power input options (AC/DC, isolated, redundant) to ensure continuous operation in unstable power conditions

Where It Can Be Used

• Railway and metro trackside wireless communication (train-to-ground links, trackside CCTV, CBTC, signalling data)

• Transit corridor surveillance and communication infrastructure

• Outdoor industrial automation and control in harsh weather

• Remote monitoring sites, outdoor SCADA, utility networks, power substations

• Railway infrastructure — communication, signaling, remote control, maintenance network

• Outdoor CCTV, IoT deployment in transport hubs, ports, industrial zones

Installation Steps

1. Mount the TAP-323-EU-CT-T unit on track-side pole / mast / wall / outdoor mount, using appropriate brackets.

2. Connect power supply (AC/DC) — ensure isolation and redundancy per installation guidelines.

3. Connect fiber backbone via SFP, or connect LAN devices via M12-PoE ports as needed.

4. Attach external antennas (if separate) as per deployment location.

5. Configure WLAN settings — SSID, channels (EU-band), security (WPA/WPA2/AES or 802.1X if required), bandwidth (20/40 MHz).

6. Enable controller-based Turbo Roaming if multiple TAP-323 units are used along track or in mobile-client environment.

7. Test connectivity, roaming handover (if mobile), signal strength, and stability under outdoor conditions.

8. Seal all connectors and housings, ensure conformal coating / enclosure integrity for IP68 protection.

Buy MOXA TAP-323-EU-CT-T at the Best Price from Datacom Technologies BD

In Bangladesh, you can get the MOXA TAP-323-EU-CT-T Outdoor / Trackside Dual-Radio Wireless AP from Datacom Technologies BD. We offer genuine MOXA industrial and railway-grade wireless devices suitable for rail, transportation, outdoor automation, CCTV, and infrastructure networking. Order online or visit our office to get yours at the best price. The TAP-323-EU-CT-T comes with a 1-year warranty (or as per supply agreement).

Get in Touch with Datacom Technologies BD

 Call/WhatsApp: 01748173213
✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com

What is the price of MOXA TAP-323-EU-CT-T in Bangladesh?

Estimated price for MOXA TAP-323-EU-CT-T in Bangladesh is Tk 180,000 – Tk 220,000, depending on import cost, configuration, and stock availability. For accurate price quote and stock status, please contact us before placing the order.
