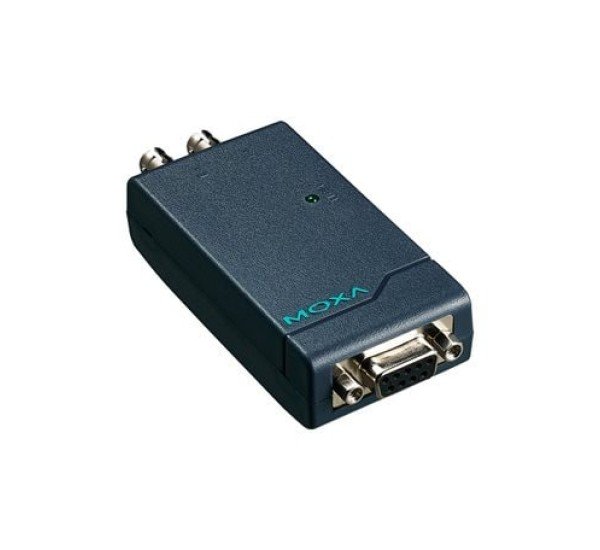

About MOXA TCF-90 RS-232 to Fiber Converters
MOXA TCF-90 is a high-performance RS-232 to fiber converter that provides reliable and efficient data transmission over long distances. It is ideal for industrial applications where long-distance communication is required.
Datacom Technologies BD is the leading supplier of MOXA products in Bangladesh. We offer the best prices and excellent customer service. Contact us today to learn more about TCF-90 and other MOXA products.
MOXA TCF-90 Fiber Converter Specification:
| Feature |
Description |
| Serial Interface |
| No. of Ports |
1 |
| Serial Standards |
RS-232 |
| Flow Control |
ADDC (automatic data direction control) for RS-485 |
| Connector |
DB9 female |
| Optical Fiber |
| Optical Fiber Type |
Multi-Mode or Single-Mode |
| Fiber Cable Requirements |
50/125 µm, 800 MHz or 62.5/125 µm, 500 MHz |
| Typical Distance |
5 km (multi-mode), 40 km (single-mode) |
| Wavelength |
850 nm (multi-mode), 1310 nm (single-mode) |
| Baud Rate |
300 bps to 115.2 kbps |
| Power |
| Input Voltage |
5 to 12 VDC |
| Input Current |
20 mA (max) |
| Overload Current Protection |
Supported |
| Source of Input Power |
Power input jack or Power Over Serial (PoS) |
| Physical |
| Dimensions |
42 x 80 x 22 mm |
| Weight |
150 g |
| Operating Temperature |
0 to 60°C |
| Storage Temperature |
-20 to 75°C |
| Certifications |
EN 55032/35, IEC 61000-4-8 PFMF, IEC 60068-2-3, UL 60950-1, IEC 60068-2-6 |
MOXA TCF-90 Description
The MOXA
TCF-90 is a compact and versatile serial-to-fiber converter designed to extend RS-232 signals over optical fiber distances of up to 5 km with multi-mode fiber or 40 km with single-mode fiber. This device is ideal for applications where it is necessary to transmit serial data over long distances, in electrically noisy environments, or where security is a concern.
Key features of the TCF-90 include:
Long-distance transmission: Extends RS-232 signals over significant distances using optical fiber, reducing signal degradation and interference.
Robust design: Built to withstand harsh industrial environments, with wide operating temperature ranges and rugged construction.
Power flexibility: Supports both external power input and Power Over Serial (PoS), allowing for flexible deployment options.
Easy installation: Compact and lightweight design with simple plug-and-play installation.
Security: Optical fiber transmission provides inherent security by preventing signal interception and tampering.
The TCF-90 is compatible with a wide range of RS-232 devices, including modems, PLCs, and other industrial equipment. It is commonly used in applications such as:
Industrial automation: Connecting remote devices and sensors over long distances.
Telecommunications: Extending serial connections between network devices.
Security systems: Transmitting alarm and surveillance data over secure fiber links.
Transportation: Monitoring and control of remote infrastructure, such as traffic lights and railway signaling systems.
The TCF-90 is available in two models: the TCF-90-M for multi-mode fiber and the TCF-90-S for single-mode fiber. Both models offer reliable and efficient serial-to-fiber conversion, making them ideal for a wide range of industrial and commercial applications.
Supported/Comparable Models
MOXA TCF-90 Series: The TCF-90 series includes models for both multi-mode and single-mode fiber, offering different transmission distances and features.
Other serial-to-fiber converters: While other manufacturers offer similar products, the TCF-90 series is known for its reliability, performance, and rugged design, making it a popular choice for industrial applications.
