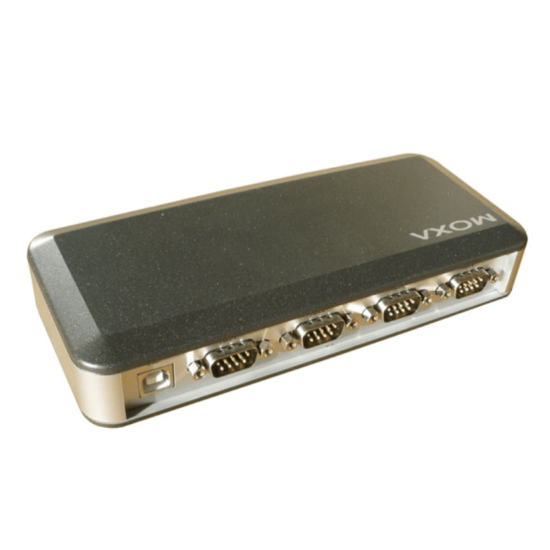

MOXA UPort 2410 4-Port RS-232 USB-to-Serial Converter
The MOXA UPort 2410 is a reliable 4-port RS-232 USB-to-serial converter designed to connect multiple traditional RS-232 serial devices to a modern computer through a single USB interface. It is particularly useful for computers and workstations that do not have sufficient built-in serial ports but still need to communicate with legacy or industrial RS-232 equipment.
The UPort 2410 provides four independent RS-232 serial ports through DB9 male connectors and uses a USB Type-B interface for connection to the host computer. With serial communication speeds of up to 921.6 kbps, it can support a broad range of industrial, commercial, instrumentation and legacy serial applications.
Technical Specifications
| Brand |
MOXA |
| Model |
UPort 2410 |
| Product Type |
USB-to-Serial Converter |
| Serial Standard |
RS-232 |
| Number of Serial Ports |
4 |
| Serial Connector |
DB9 Male |
| USB Interface |
USB 2.0, USB Type-B |
| Serial Baudrate |
50 bps to 921.6 kbps |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
None, RTS/CTS, XON/XOFF |
| RS-232 Signals |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Power |
USB-powered |
| Housing |
Polycarbonate |
| Installation |
Desktop |
| Operating Temperature |
0 to 55°C |
| Storage Temperature |
-20 to 75°C |
| Relative Humidity |
5 to 95%, non-condensing |
| Warranty |
5 years |
Four-Port RS-232 Connectivity
The UPort 2410 allows four RS-232 devices to be connected to one computer through a single USB connection. This makes it useful for installations where several serial devices must be monitored, configured or controlled from the same workstation.
Each serial port provides standard RS-232 communication signals, including TxD, RxD, RTS, CTS, DTR, DSR and DCD. Communication parameters can be configured independently according to the requirements of the connected equipment.
USB-to-Serial Conversion for Modern Computers
Many modern laptops and desktop computers no longer include native RS-232 ports. The MOXA UPort 2410 provides a practical way to integrate such computers with existing serial equipment without requiring an internal PCI or PCI Express serial expansion card.
The USB connection also makes the converter convenient for temporary service, maintenance, configuration and field-support applications where portable serial connectivity is required.
High-Speed Serial Communication
The UPort 2410 supports serial baudrates from 50 bps to 921.6 kbps. Configurable data bits, stop bits, parity and flow-control options allow the converter to communicate with a wide range of RS-232 equipment.
Applications
- Industrial RS-232 device connectivity
- PLC and controller configuration
- Industrial instrumentation
- POS and commercial equipment
- Legacy serial equipment integration
- Laboratory and test equipment
- Serial device monitoring and configuration
- Computer-to-multiple-serial-device communication
Compatibility Considerations
The MOXA UPort 2410 is an RS-232-only model. It should not be selected when RS-422 or RS-485 interfaces are required. For RS-422/485 applications, select a compatible Moxa UPort model designed for those serial standards.
Before installation, verify the supported operating system and Moxa driver version for the computer being used. The connected equipment should also be compatible with the RS-232 electrical interface and the DB9 serial connection.
MOXA UPort 2410 Price in Bangladesh
For the latest MOXA UPort 2410 4-Port RS-232 USB-to-Serial Converter price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
Contact: sales@datacom.com.bd
Datacom Technologies (BD) can assist with selecting the appropriate Moxa UPort converter based on serial interface, port count, operating system and connected equipment requirements.
