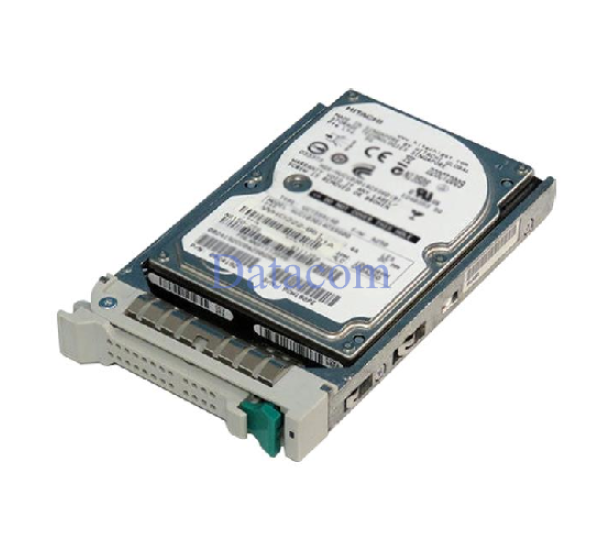

NEC N8150-546 300GB 10K RPM SAS 12Gb/s 2.5" Hot-Plug Server HDD

About NEC N8150-546 300GB 10K RPM SAS 12Gb/s 2.5" Hot-Plug Server HDD in Bangladesh

The NEC N8150-546 is a 300GB enterprise SAS hard drive designed for compatible NEC Express5800 server and storage environments. Featuring a 10,000 RPM rotational speed, SAS 12Gb/s interface, 2.5-inch Small Form Factor design and 512n sector format, it provides reliable enterprise storage for server applications, RAID configurations, virtualization environments and general business workloads.

NEC officially identifies the N8150-546 as a 300GB Hot Plug 2.5-inch SAS HDD with a 12Gb/s interface, 10,000 RPM rotational speed and 512n sectors. :contentReference[oaicite:3]{index=3}

NEC N8150-546 300GB SAS HDD Specifications & Features

Overview

The NEC N8150-546 provides 300GB of enterprise-class storage using a 10,000 RPM SAS platform. It is designed for compatible NEC Express5800 server environments where dependable storage, SAS connectivity and hot-plug serviceability are required.

Its 2.5-inch SFF form factor is suitable for compatible server configurations equipped with 2.5-inch hot-plug drive bays.

Buy NEC N8150-546 300GB 10K SAS HDD in Bangladesh

Purchase the NEC N8150-546 300GB 10,000 RPM SAS 12Gb/s 2.5-inch Hot-Plug Server Hard Drive from Datacom Technologies (BD). We supply enterprise server HDDs, SAS/SATA storage, RAID components and data center hardware in Bangladesh with competitive pricing, technical consultation and nationwide delivery.

Key Features

• 300GB enterprise storage capacity
• 10,000 RPM rotational speed
• SAS 12Gb/s interface
• 512n sector format
• 2.5-inch Small Form Factor
• Hot-Plug / Hot-Swap design
• Enterprise-class SAS storage
• Designed for compatible NEC Express5800 servers
• Suitable for supported RAID configurations
• Suitable for virtualization and server workloads
• Designed for reliable enterprise storage

Applications

• NEC Express5800 Servers
• Enterprise Database Servers
• Virtualization Servers
• File Servers
• Server RAID Arrays
• Business Applications
• Enterprise Storage
• Data Center Infrastructure
• Transactional Workloads
• General Server Storage

300GB Enterprise Storage

The 300GB capacity provides a practical storage tier for operating systems, applications, databases and other server workloads where enterprise SAS performance and reliability are more important than maximum storage capacity.

Multiple N8150-546 drives can be configured in supported RAID arrays to improve storage redundancy and availability. Actual usable capacity depends on the selected RAID level and storage-controller configuration.

10,000 RPM Performance

The N8150-546 operates at 10,000 RPM, providing faster rotational performance than conventional 7,200 RPM enterprise HDDs.

The 10K RPM design makes the drive suitable for workloads requiring a balance between HDD capacity, response time and enterprise SAS connectivity, including databases, virtualization and general server applications.

SAS 12Gb/s Interface

The N8150-546 uses a SAS 12Gb/s interface. NEC's official documentation specifies the drive as a 12Gb/s SAS HDD. :contentReference[oaicite:4]{index=4}

SAS provides enterprise-oriented connectivity and is designed for use with compatible SAS controllers, server backplanes and storage architectures.

The 12Gb/s figure represents the theoretical SAS interface link rate. Actual HDD performance depends on the physical drive, workload, controller, RAID configuration and storage architecture.

512n Sector Format

The N8150-546 uses a 512n sector format. NEC's official documentation specifically identifies the 300GB N8150-546 as a 512n-sector drive. :contentReference[oaicite:5]{index=5}

512n refers to a native 512-byte logical and physical sector configuration. When adding the drive to an existing RAID array or replacing a failed drive, verify sector-format compatibility with the controller and other installed drives.

2.5-Inch SFF Form Factor

The N8150-546 is a 2.5-inch Small Form Factor enterprise HDD. The compact form factor allows compatible server systems to provide multiple storage drives within a relatively small chassis footprint.

Before installation, verify that the target NEC server has compatible 2.5-inch hot-plug bays and SAS connectivity.

Hot-Plug Design

The N8150-546 is specified by NEC as a Hot Plug 2.5-inch SAS HDD. NEC's technical documentation also confirms hot-swap support. :contentReference[oaicite:6]{index=6}

In a compatible server configuration, hot-plug functionality allows supported drives to be serviced or replaced without powering down the entire system, subject to the server backplane, RAID controller, operating system and storage configuration.

Enterprise SAS Storage

The N8150-546 is an enterprise SAS HDD intended for server and data center environments. Its SAS interface and 10,000 RPM rotational speed make it more appropriate for server workloads than ordinary desktop storage.

It can be used for operating-system storage, applications, databases, virtualization platforms, file services and other enterprise workloads supported by the host system.

NEC Express5800 Compatibility

NEC's official configuration documentation lists N8150-546 as a supported 300GB Hot Plug 2.5-inch SAS HDD for Express5800 server configurations. :contentReference[oaicite:7]{index=7}

NEC's vSAN documentation also lists N8150-546 among supported 2.5-inch SAS HDD devices, specifying 12Gb/s, 10,000 RPM, hot-swap capability and 512n sectors. :contentReference[oaicite:8]{index=8}

Exact compatibility depends on the server model, SAS controller, backplane, firmware and storage configuration. Always verify the target NEC system before installation.

RAID Storage

The N8150-546 can be used in supported SAS RAID configurations. Multiple drives can be combined into RAID arrays to provide redundancy and improve storage availability.

Supported RAID levels depend on the installed NEC RAID controller and server configuration. RAID protects against certain drive failures but should always be combined with an independent backup strategy.

Server and Database Storage

The 10,000 RPM spindle speed and SAS interface make the N8150-546 suitable for server workloads where faster HDD response is desirable compared with lower-speed capacity drives.

• Database storage
• Virtual machine storage
• Operating system volumes
• Application servers
• File servers
• Enterprise RAID arrays
• Business applications

Performance-Oriented Enterprise HDD

The N8150-546 is best positioned as a performance-oriented enterprise HDD rather than a high-capacity archive drive.

Its 10K RPM rotational speed and SAS 12Gb/s interface make it suitable for server workloads requiring responsive mechanical storage while retaining the cost and capacity characteristics of an HDD.

NEC N8150-546 vs 7.2K RPM SAS HDD

Compatibility Considerations

The N8150-546 is a SAS drive and requires a compatible SAS controller and server backplane. It should not be treated as a SATA replacement.

• Compatible 2.5-inch SFF bay
• Compatible SAS backplane
• Compatible NEC RAID/SAS controller
• 512n sector support
• Compatible server firmware
• Appropriate hot-plug drive carrier

When replacing an existing drive in a RAID array, verify capacity, SAS generation, sector format, firmware compatibility and controller support.

Benefits

• 300GB enterprise storage capacity
• 10,000 RPM performance
• SAS 12Gb/s connectivity
• 512n native sector format
• 2.5-inch SFF design
• Hot-Plug capability
• Suitable for compatible NEC Express5800 environments
• Suitable for RAID configurations
• Suitable for virtualization workloads
• Designed for enterprise server applications

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies NEC server hard drives, SAS/SATA enterprise storage, RAID components and data center hardware in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the NEC N8150-546?
The NEC N8150-546 is a 300GB 10,000 RPM SAS 12Gb/s 2.5-inch Hot-Plug enterprise hard drive.

Q2: What is the storage capacity?
The N8150-546 provides 300GB of nominal storage capacity.

Q3: What is the rotational speed?
The drive operates at 10,000 RPM.

Q4: What interface does N8150-546 use?
It uses a SAS 12Gb/s interface.

Q5: What sector format does N8150-546 use?
The N8150-546 uses a 512n sector format. NEC specifically documents the drive as 512n. :contentReference[oaicite:9]{index=9}

Q6: Is N8150-546 hot-pluggable?
Yes. NEC identifies it as a Hot Plug 2.5-inch SAS HDD and documents hot-swap support. :contentReference[oaicite:10]{index=10}

Q7: Is N8150-546 a SATA drive?
No. N8150-546 is a SAS 12Gb/s enterprise HDD.

Q8: What is the form factor?
The N8150-546 is a 2.5-inch Small Form Factor SAS HDD. :contentReference[oaicite:11]{index=11}

Q9: Can N8150-546 be used in RAID?
Yes, when supported by the NEC server's SAS/RAID controller and storage configuration.

Q10: Is N8150-546 suitable for virtualization?
Yes. NEC's technical documentation lists N8150-546 among HDDs supported for VMware vSAN 8.0 on applicable Express5800 platforms. :contentReference[oaicite:12]{index=12}

Q11: Which NEC servers support N8150-546?
NEC documentation lists N8150-546 for compatible Express5800 configurations, including the R120h-1M and R120h-2M configuration guides. Exact compatibility should be checked against the target server model. :contentReference[oaicite:13]{index=13}

Q12: Is N8150-546 suitable for databases?
Its 10,000 RPM SAS platform is suitable for supported enterprise server and database workloads, although modern SSD storage will generally provide much higher IOPS and lower latency.

Q13: Does N8150-546 require a SAS controller?
Yes. The drive requires a compatible SAS controller and backplane.
