Fiber Optic Patch Panel 24 port
Specification
| Specification |
Details |
| Product Type |
Fiber Optic Patch Panel |
| Port Count |
24 Ports |
| Fiber Type |
Single-mode / Multi-mode (depending on configuration) |
| Connector Type |
LC, SC, ST, or FC (varies by model) |
| Mounting Type |
19-inch Rack Mount |
| Rack Units (RU) |
1U or 2U |
| Material |
Cold-rolled Steel / Aluminum |
| Panel Color |
Black / Grey (powder-coated) |
| Cable Management |
Includes cable routing guides and strain relief |
| Splice Tray Support |
Yes (up to 2 splice trays depending on design) |
| Adapter Plate |
Removable and replaceable |
| Dimensions (L x W x H) |
Approx. 482mm x 250mm x 44mm (1U version) |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Compliance |
RoHS, ISO 9001, TIA/EIA Standards |
? Description
The
24-Port Fiber Optic Patch Panel is a high-performance solution designed for organizing and managing fiber optic connections in data centers, telecom rooms, and enterprise networks. Engineered for flexibility and efficiency, this panel supports up to 24 fiber connections through interchangeable adapter plates, accommodating various connector types such as LC, SC, ST, or FC, and available in both single-mode and multi-mode options.
Built from durable cold-rolled steel or aluminum and powder-coated for added protection, the patch panel ensures long-lasting performance even in demanding environments. The standard 19-inch rack-mount design fits seamlessly into most rack systems, with configurations typically occupying 1U or 2U of rack space.

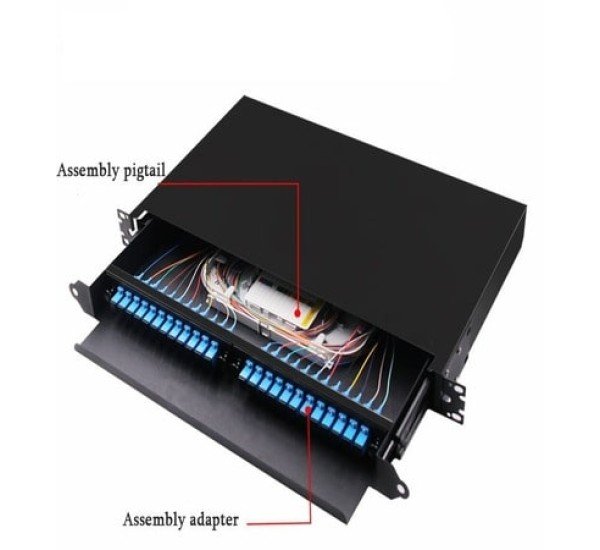

The panel also includes integrated cable management features such as routing rings, strain relief brackets, and optional splice trays to maintain fiber integrity and prevent damage during moves or maintenance. A slide-out or swing-out drawer design in some models enhances accessibility for quick installations and changes.
Ideal for structured cabling systems, this patch panel helps centralize and streamline fiber connections while maintaining high-speed network performance and reducing signal loss. Whether for enterprise-level networking or expanding infrastructure, the 24-port patch panel offers a professional and scalable solution.
? Key Features
- 24-Port Capacity: Supports up to 24 fiber connections, ideal for medium to large network setups.
- High-Density Design: Maximizes rack space efficiency in data centers and telecom rooms.
- Modular Build: Compatible with LC, SC, ST, or other connector types.
- Cable Management: Built-in cable organizers reduce clutter and improve airflow.
- Durable Construction: Made from high-quality cold-rolled steel or aluminum for long-lasting performance.
- Sliding/Fixed Options: Available in sliding drawer or fixed frame versions for easy access during maintenance.
- Labeling System: Each port is clearly labeled for easy identification and troubleshooting.
? Where It Can Be Used?
- Data Centers: For organizing and managing fiber connections in server rooms.
- Telecom Closets: Helps manage fiber connections in telephone and internet distribution hubs.
- Campus Networks: Ideal for educational institutions with high-speed networking needs.
- Enterprise Networks: Supports structured cabling in corporate office environments.
- Industrial Settings: Used in factories or warehouses that require rugged network infrastructure.
?️ Installation Steps
- Preparation: Verify panel type (rack mount/wall mount). Ensure you have the correct connectors, pigtails, and patch cords.

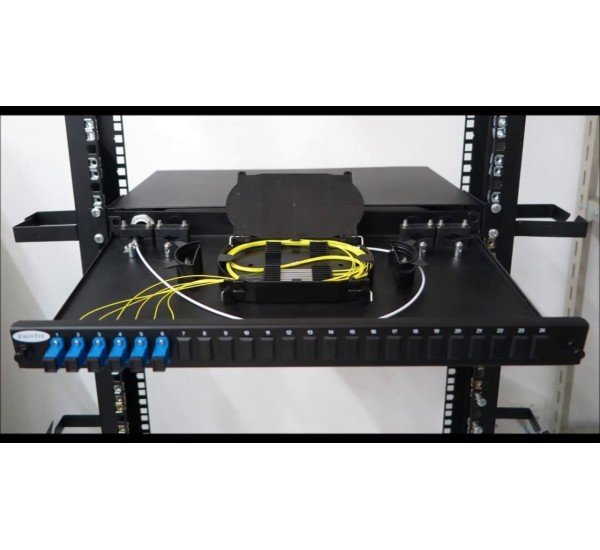

- Mounting: Secure the patch panel in a standard 19” rack or wall-mounted enclosure.
- Cable Routing: Route fiber optic cables through the panel’s rear entry points.
- Splicing or Termination: Perform fusion splicing or use pre-terminated connectors as needed.
- Connector Insertion: Insert connectors into the adapter panels.
- Labeling: Label each port clearly for future reference.
- Testing: Perform continuity and performance tests using an optical power meter or OTDR.
Buy Fiber Optic Patch Panel 24 port at the Best Price from Datacom BD Online
In Bangladesh, you can get original Fiber Optic Patch Panel 24 port From
Datacom. We have a large collection of latest Fiber Patch Panel to purchase. Order Online Or Visit our Office to get yours at lowest price. The Cisco C6807-XL-FAN= Cooling Fan comes with 1-year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Fiber Optic Patch Panel 24 port in Bangladesh?
The latest price Fiber Optic Patch Panel 24 port in Bangladesh is 3,500৳. You can buy the Fiber Optic Patch Panel 24 port at best price from our website or visit our Office.
