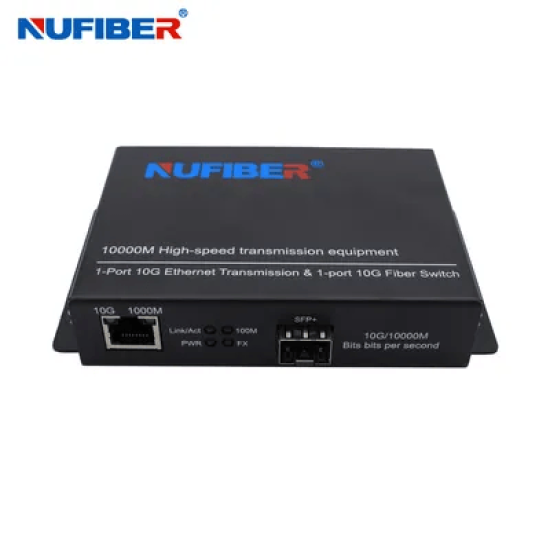

NuFiber SFP+ to RJ45 10Gbps Media Converter (Ethernet to Fiber)
The NuFiber SFP+ to RJ45 10Gbps Media Converter from Datacom Technologies BD is a high-performance network media converter designed to bridge copper Ethernet and fiber optic networks at 10 Gbps speeds. It enables seamless conversion between SFP+ fiber interfaces and RJ45 copper ports, expanding the bandwidth and extending network reach while maintaining ultra-fast data transmission for data centers, telecom rooms, enterprise networks, and fiber-enabled infrastructures. nufiber-systems.com
Specification Table
| Feature | Details |
|---|
| Model | NuFiber NF-C10G-SFP+ |
| Device Type | 10Gbps Media Converter |
| Fiber Interface | SFP+ slot (supports various SFP+ transceivers) |
| Copper Interface | 1× RJ45 (10GBase-T) |
| Standards | IEEE 802.3an (10GBase-T), IEEE 802.3ae (10GBase-SR/LR/ER/ZR) |
| Transmission Rate | 10 Gbps |
| Supported Cables | Cat6a UTP up to 100 m; multimode fiber up to ~300 m; single-mode fiber up to ~80 km (dependent on SFP+) |
| Jumbo Frame | Supported |
| LEDs | Full status LED display for link and activity |
| Plug-in | Hot-pluggable SFP+ |
| Power | AC 220 V (170–260 V) 50 Hz; DC 5 V, 3 A |
| Operating Temp | 0 °C to +50 °C |
| Storage Temp | –20 °C to +70 °C |
| Humidity | 5 % to 90 % |
| Dimensions | Approx. 14.4 × 10.3 × 3.2 cm |
| Warranty | 3 Years |
NuFiber SFP+ to RJ45 10Gbps Media Converter Description
The NuFiber SFP+ to RJ45 10Gbps Media Converter is engineered to connect 10 Gbps fiber links with copper Ethernet devices, offering seamless media conversion and transparent traffic transport with low latency. It supports SFP+ transceivers for flexible fiber types (multimode or single mode), enabling long-distance backbone links or high-speed network segments without replacing your existing infrastructure. nufiber-systems.com
With jumbo frame support, hot-swappable modules, and full status LED indicators, this media converter simplifies network deployment and maintenance. It’s ideal for data centers, server farms, telecom rooms, research labs, enterprise networks, and anywhere high-capacity, high-speed conversion between copper and fiber is required. nufiber-systems.com
Key Features
• 10 Gbps fiber-to-copper media conversion for high-performance networks nufiber-systems.com
• Supports IEEE 802.3an and IEEE 802.3ae standards for 10G connectivity nufiber-systems.com
• SFP+ slot for flexible fiber transceiver choice (SR, LR, ER, ZR, CWDM/DWDM) nufiber-systems.com
• Supports jumbo frames for large data packet transmission nufiber-systems.com
• Transparent transport with low delay and full LED status display nufiber-systems.com
• Hot-plug capable for easy network maintenance nufiber-systems.com
• Wide cable support including Cat6a and fiber options (multimode and single mode) nufiber-systems.com
• Compact design with standard AC/DC power options nufiber-systems.com
Where It Can Be Used
• Data centers and server interconnects needing 10G links
• Enterprise network aggregation and core extensions
• Telecom or MSP backhaul infrastructure
• Campus LAN/wired backbone connections
• High-performance computing and research networks
• Fiber-to-copper transition points in mixed networks
