| Category | Specification |
|---|

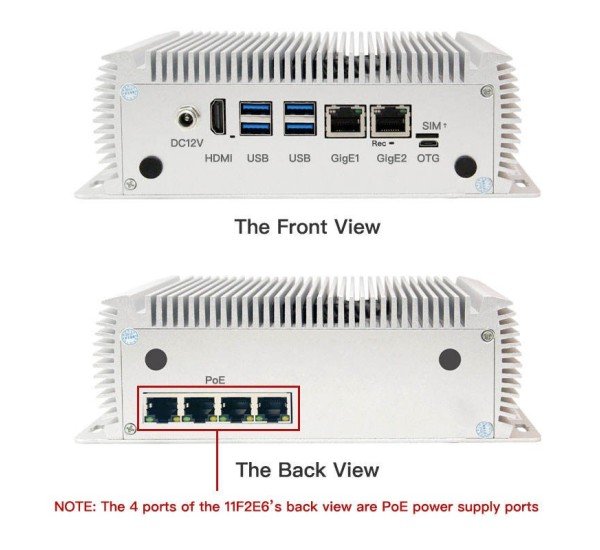

| Product Name | NVIDIA Jetson Orin NX16G‑128G Embedded Computer – 11F2E6 |
| Core Module | NVIDIA Jetson Orin NX 16GB AI compute module |
| AI Performance | Up to 100 TOPS (INT8) |
| GPU | NVIDIA Ampere architecture with 1024 CUDA cores & 32 Tensor Cores |
| CPU | 8‑core Arm® Cortex‑A78AE v8.2 64‑bit CPU (up to 2.0 GHz) |
| Memory | 16 GB 128‑bit LPDDR5 (~102.4 GB/s) |
| Storage | 128 GB NVMe SSD included (industrial PC implementation) |
| Video Encode | 1× 4K60, 3× 4K30, 6× 1080p60, 12× 1080p30 (H.265/H.264/AV1) |
| Video Decode | 1× 8K30, 2× 4K60, 4× 4K30, 9× 1080p60, 18× 1080p30 |
| Networking | Gigabit Ethernet (RJ45) |
| USB Ports | USB 3.x & USB 2.0 ports (carrier‑dependent) |
| Display Output | HDMI / DisplayPort (carrier‑dependent) |
| Camera Interfaces | MIPI CSI‑2 multi‑lane support (carrier‑dependent) |
| I/O Interfaces | GPIO, UART, SPI, I2C, CAN (varies by carrier board) |
| PCIe Expansion | PCIe lanes for peripherals & storage |
| Power Consumption | Configurable between 10 W – 25 W (module level) |
| Typical Use | Edge AI, robotics vision, automation, industrial AI |
Product Description:
The NVIDIA Jetson Orin NX16G‑128G Embedded Computer – 11F2E6 is a powerful, compact industrial AI platform built around the Jetson Orin NX 16GB module, ideal for demanding edge computing applications. Delivering up to 100 TOPS of AI performance in a small form factor, the Orin NX16G combines an 8‑core Arm® Cortex‑A78AE CPU with an NVIDIA Ampere‑architecture GPU featuring 1024 CUDA cores and 32 Tensor Cores. This performance makes it suitable for advanced machine learning inference, real‑time vision processing, robotics, smart surveillance, and autonomous systems where responsiveness and low latency are crucial.
Equipped with 16 GB of high‑speed LPDDR5 memory, the system offers ample bandwidth to handle complex AI pipelines and sensor data simultaneously. The included 128 GB NVMe SSD provides fast local storage for operating systems, models, and application datasets. Networking capabilities such as Gigabit Ethernet, along with USB and display interfaces, enable easy integration into existing systems.
The Orin NX16G supports multiple camera inputs over MIPI CSI‑2, high‑resolution video encoding/decoding, and flexible I/O for industrial sensors and actuators. With configurable power modes between 10 W and 25 W, it delivers a balance of performance and efficiency suitable for embedded and edge environments. This makes the 11F2E6 an excellent choice for industrial automation, robotics vision, smart retail, and other AI‑driven edge deployments where reliability and compute power are essential.
