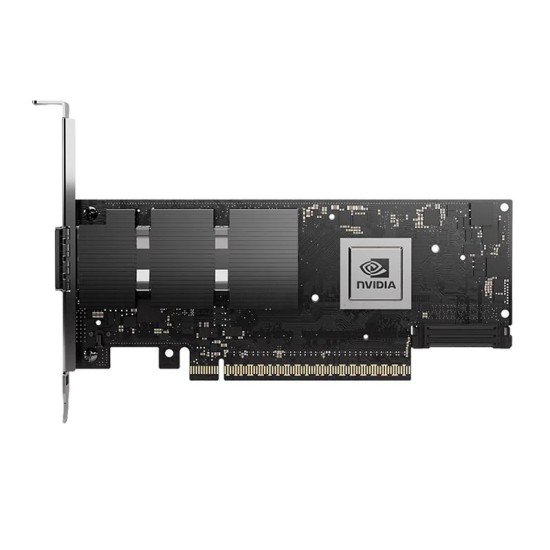

NVIDIA Mellanox 400GbE Network Card - MCX75310AAS-NEAT
The MCX75310AAS-NEAT is a high-performance PCIe Gen 4.0/5.0 network adapter supporting InfiniBand and Ethernet via a single OSFP port. With data rates up to 400 Gb/s and compatibility across major protocols like NDR and 400GAUI-4, it's ideal for next-gen data centers. Featuring secure boot, low 24.9W power consumption, and global regulatory compliance, it ensures reliable, high-speed connectivity.
Specification
| Feature |
Specification |
| Model |
MCX75310AAS-NEAT |
| Form Factor |
PCIe Half Height, Half Length (2.71 in. x 6.6 in. / 68.90mm x 167.65 mm) |
| Interface |
PCI Express Gen 4.0/5.0 x16 lanes (Gen 3.0 compatible) |
| Networking Port |
Single OSFP supporting InfiniBand and Ethernet |
| Data Rates |
InfiniBand: NDR/NDR200/HDR/HDR100/EDR/FDR/SDR; Ethernet: 400/200/100/50/40/10/1 Gb/s |
| Protocol Support |
InfiniBand: IBTA v1.5a; Ethernet: 400GAUI-4, 200GAUI-2, 100GAUI-2, 50GAUI-2, etc. |
| Capabilities |
Secure Boot Enabled; Crypto Disabled |
| Power Consumption |
Typical: 24.9W |
| Operating Temperature |
0°C to 55°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 85% relative humidity |
| Storage Humidity |
10% to 90% relative humidity |
| Altitude (Operational) |
Up to 3050m |
| Regulatory Compliance |
Safety: CB / cTUVus / CE; EMC: CE / FCC / VCCI / ICES / RCM / KC; RoHS Compliant |
Description
The NVIDIA Mellanox
MCX75310AAS-NEAT is engineered to meet the rigorous demands of modern data centers and enterprise environments. This network adapter card supports both InfiniBand and Ethernet protocols, offering versatility for a wide range of applications. With a single OSFP port, it delivers high data throughput, supporting InfiniBand speeds up to NDR (400Gb/s) and Ethernet speeds up to 400GbE. The card is designed with a PCIe Gen 4.0/5.0 x16 interface, ensuring compatibility with the latest server architectures.
Physically, the MCX75310AAS-NEAT features a half-height, half-length form factor, making it suitable for various server configurations. It includes secure boot capabilities, enhancing system security, though it does not support cryptographic functions. The adapter operates efficiently with a typical power consumption of 24.9W and is designed to function within a temperature range of 0°C to 55°C. Its compliance with multiple regulatory standards, including CB, CE, FCC, and RoHS, ensures reliability and safety in diverse operational environments.
Key Features
- 400GbE Ethernet Connectivity: Offers ultra-high-speed networking with up to 400 Gigabits per second throughput.
- NVIDIA ConnectX-7 Architecture: Delivers advanced acceleration for networking, storage, and security workloads.
- PCIe Gen 5.0 Support: Ensures maximum bandwidth and future-proofing with the latest PCIe standard.
- RDMA (Remote Direct Memory Access): Enhances low-latency and high-throughput data transfer by bypassing the CPU.
- GPUDirect® Technology: Enables direct data transfers between GPUs and the network, reducing CPU overhead and boosting AI/ML performance.
- NVMe over Fabrics (NVMe-oF): Optimized for storage acceleration with low-latency access to NVMe storage devices.
- Enhanced Security: Includes hardware root-of-trust, secure boot, and crypto acceleration for secure data movement.
Where It Can Be Used?
- High-Performance Computing (HPC) Environments
- AI/ML Workloads and Training Clusters
- Cloud Data Centers
- Telecommunications Infrastructure
- Enterprise Storage Networks
- Financial Trading Platforms (Low-latency environments)
Installation Steps
- Power Down the Server and unplug it from power.
- Open the Chassis to access the PCIe slots.
- Insert the Network Card into an available PCIe Gen 4 or Gen 5 x16 slot.
- Secure the Card with screws or retaining clips.
- Connect QSFP-DD Cables or optical transceivers suitable for 400GbE.
- Close the Chassis and Power On the server.
- Install Drivers and Firmware from the NVIDIA Networking support site.
- Configure the Network Interface using your operating system or through NVIDIA’s management tools like MLNX_OFED or UFM.
User Experience
- Blazing-Fast Performance: Seamless data movement in large-scale computing and AI environments.
- Low Latency: Ideal for workloads that require real-time response.
- Reliable Compatibility: Works with major operating systems and hypervisors.
- Simplified Management: Advanced telemetry and diagnostics through NVIDIA networking software tools.
- Energy Efficient: Optimized power consumption even at high throughput levels.
Why Choose the NVIDIA Mellanox 400GbE - MCX75310AAS-NEAT?
- Future-Proof Technology: Supports the latest standards (PCIe Gen5, 400GbE) for next-gen data centers.
- Superior Performance: Designed for mission-critical, high-bandwidth, and latency-sensitive environments.
- AI-Optimized: Direct GPU-to-network communications for high-efficiency AI model training.
- Trusted Brand: Backed by NVIDIA’s industry-leading reputation in accelerated computing and networking.
- Scalable: Easily fits into existing infrastructures with backward compatibility and modular scalability.
Buy NVIDIA Mellanox 400GbE Network Card - MCX75310AAS-NEAT at the Best Price from Datacom BD Online
In Bangladesh, you can get NVIDIA Mellanox 400GbE Network Card - MCX75310AAS-NEAT From
Datacom. We have a large collection of latest Server Graphics Card to purchase. Order Online Or Visit our Office to get yours at lowest price. The NVIDIA RTX A4500 Graphics Card comes with 1 Year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of NVIDIA Mellanox 400GbE Network Card - MCX75310AAS-NEAT in Bangladesh?
The estimated price of NVIDIA Mellanox 400GbE Network Card - MCX75310AAS-NEAT in Bangladesh is 170,500৳. You can buy the NVIDIA Mellanox 400GbE Network Card - MCX75310AAS-NEAT at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
