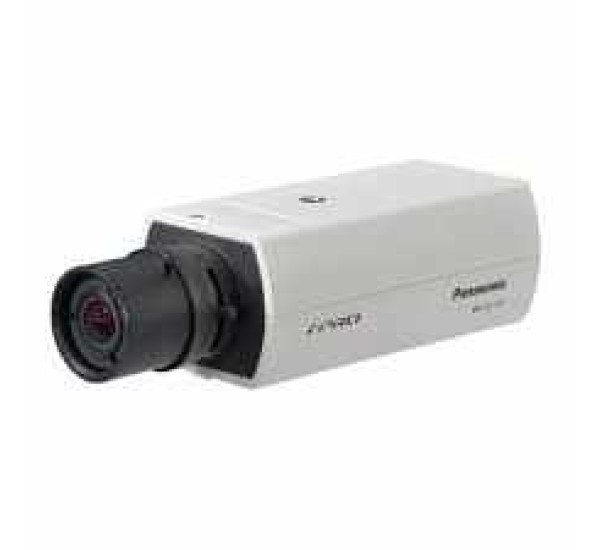

Panasonic WV-CL934 – 570TVL Day/Night Analog Box Camera | Professional CCTV Surveillance
The Panasonic WV-CL934 Day/Night Analog CCTV Camera is a professional surveillance solution designed for high-quality monitoring in commercial and industrial security systems. Equipped with a 1/2-inch interline transfer CCD sensor, the camera delivers clear and detailed images with up to 570 TV lines resolution in black-and-white mode, ensuring reliable video quality for professional surveillance applications.
This camera features Day/Night functionality with an automatic IR cut filter, allowing it to switch between color and monochrome modes based on lighting conditions. With Auto Back Focus (ABF) technology, the camera automatically adjusts focus when switching modes, ensuring optimal image sharpness at all times.
Additionally, advanced features such as Adaptive Digital Noise Reduction (2D/3D DNR), Video Motion Detection, and Auto Image Stabilization enhance overall image clarity and system reliability, making the WV-CL934 suitable for high-security surveillance environments.
SPECIFICATIONS
| Feature | Details |
|---|
| Product Name | Panasonic WV-CL934 Day/Night CCTV Camera |
| Brand | Panasonic Security |
| Camera Type | Analog Box CCTV Camera |
| Image Sensor | 1/2-inch Interline Transfer CCD |
| Resolution | 540 TV Lines (Color) / 570 TV Lines (B/W) |
| Effective Pixels | 752 × 582 |
| Minimum Illumination | 0.09 lux (Color) / 0.008 lux (B/W) |
| Signal-to-Noise Ratio | 50 dB |
| Lens Mount | CS-Mount (C-mount adapter included) |
| Video Output | Composite Video 1.0 Vp-p, 75Ω (BNC) |
| Power Supply | 12 V DC / 24 V AC |
| Power Consumption | Approx. 4 W |
| Operating Temperature | –10°C to +50°C |
| Dimensions | 70 × 65 × 151 mm |
| Weight | Approx. 560 g |
| Application | Professional analog CCTV surveillance |
Panasonic WV-CL934 Camera Description
The Panasonic WV-CL934 is engineered for professional security systems that require stable imaging and reliable performance in varying lighting conditions. The camera’s 1/2-inch CCD sensor delivers clear video quality and improved sensitivity compared to smaller sensors.
With Day/Night switching, the camera automatically changes to monochrome mode in low-light environments, improving visibility and capturing usable images even in dark conditions. Its Auto Back Focus (ABF) system ensures the camera maintains precise focus after switching between color and black-and-white modes.
The camera also integrates Video Motion Detection with scene change detection, helping security systems detect unusual activity or camera tampering. Additional technologies such as 2D and 3D digital noise reduction reduce image noise in low-light environments, ensuring clearer surveillance footage.
Because of its robust design and reliable imaging performance, the WV-CL934 is widely used in banks, transportation hubs, industrial facilities, and commercial surveillance networks.
Key Features
High-resolution 570 TVL day/night analog CCTV camera
1/2-inch CCD image sensor for enhanced sensitivity
Day/Night automatic switching with IR cut filter
Auto Back Focus (ABF) for accurate focus adjustment
Adaptive Digital Noise Reduction (2D & 3D DNR)
Video Motion Detection with scene change detection
Auto Image Stabilizer for vibration-free images
Backlight Compensation (BLC) for challenging lighting conditions
Compatible with CS-mount lenses
Where It Can Be Used
Commercial CCTV surveillance systems
Banks and financial institutions
Industrial facilities and warehouses
Transportation hubs and parking areas
Government and public security installations
Retail stores and shopping malls
