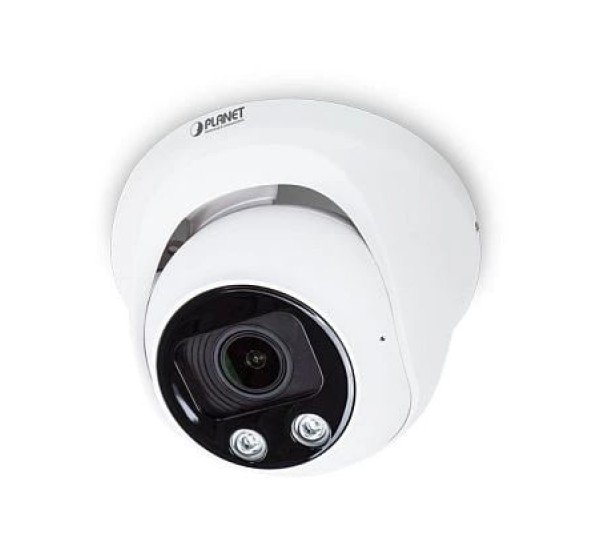

PLANET ICA-M4580P 5MP Industrial Dome Camera
Specification Table
| Feature |
Specification |
| Image Sensor |
1/2.8" 5MP SONY STARVIS Back-illuminated CMOS |
| Lens |
2.7–13.5mm motorized zoom (5x), autofocus |
| Angle of View |
Horizontal: 24°–90°, Vertical: 17°–74° |
| Minimum Illumination |
0.005 lux (color) @ F1.2; 2 lux (B/W) with IR on |
| IR/Warm LED Range |
IR: up to 30m; Warm White LED: up to 30m |
| Video Compression |
H.264(+)/H.265(+)/JPEG/AVI/MJPEG |
| Max Resolution |
2592 x 1944 @ 20fps |
| WDR / 3DNR |
Yes (50dB WDR), 3D Noise Reduction |
| Audio |
One-way audio support |
| Smart Features |
Motion detection, video tampering, privacy mask, ROI, intrusion detection, line crossing, loitering detection, people gathering detection |
| Power |
IEEE 802.3af PoE / 12V DC, 0.7A |
| Power Consumption |
4.9W (IR on), 5.4W (Warm LED on) |
| Operating Temp. |
-20°C to 60°C |
| Housing |
IP67-rated metal casing |
| Dimensions / Weight |
Φ115 x 113 mm / 600g |
| Storage |
MicroSD slot (up to 1TB) |
| Network Protocols |
IPv4, DHCP, FTP, SMTP, RTSP, ONVIF, TLS |
| Management |
Web interface, mobile app, PLANET PVMS software |
? Description
The PLANET ICA-M4580P is a high-performance 5MP dome IP camera designed for versatile indoor and outdoor surveillance. It features a 1/2.8" SONY STARVIS back-illuminated CMOS sensor, ensuring exceptional image clarity even in low-light conditions. The motorized 2.7–13.5mm lens offers 5x optical zoom and autofocus, allowing for precise remote adjustments.
Equipped with Smart IR and warm white LED illuminators, the camera provides clear images up to 30 meters, adapting seamlessly between black-and-white and full-color modes based on ambient lighting. Advanced image processing technologies like Wide Dynamic Range (WDR) and 3D Noise Reduction (3DNR) enhance visibility in challenging lighting scenarios.
The ICA-M4580P supports multiple video compression formats, including H.264(+), H.265(+), JPEG, AVI, and MJPEG, optimizing bandwidth and storage without compromising quality. Its smart features encompass motion detection, video tampering alerts, privacy masking, and various intrusion detection capabilities.
Built with an IP67-rated metal housing, the camera withstands harsh environmental conditions, operating reliably between -20°C and 60°C. Power options include IEEE 802.3af PoE and 12V DC, facilitating flexible installation. With support for microSD storage up to 1TB and compatibility with PLANET's PVMS software, the ICA-M4580P offers a comprehensive solution for robust and intelligent surveillance needs.
Key Features
- 5 Megapixel Resolution – Captures crystal-clear video at up to 2592 x 1944 resolution for superior image clarity.
- Day & Night Functionality – Integrated IR LEDs support visibility in complete darkness up to 30 meters.
- H.265/H.264 Compression – Saves bandwidth and storage without compromising video quality.
- IP66 Weatherproof Housing – Durable against harsh weather for reliable outdoor operation.
- IK10 Vandal-Proof – Built to resist physical impacts and tampering.
- Wide Dynamic Range (WDR) – Enhances visibility in high-contrast lighting conditions.
- ONVIF Compatibility – Seamlessly integrates with various NVRs and third-party systems.
Where It Can Be Used?
- Retail Stores & Shopping Malls – Monitor entrances, aisles, and checkouts.
- Office Buildings – Secure lobbies, hallways, and workspaces.
- Warehouses & Industrial Sites – Oversee large areas with minimal blind spots.
- Parking Lots & Garages – Capture clear footage in open or low-light environments.
- Schools & Campuses – Enhance student safety with wide coverage.
Installation Steps
- Choose the Location – Identify optimal placement for maximum coverage.
- Mount the Camera – Use the included bracket and screws to secure it on walls or ceilings.
- Connect Power and Network – Use PoE (Power over Ethernet) for efficient installation.
- Configure via Web Interface – Set up the camera using its IP address on a browser.
- Integrate with NVR/VMS – Connect to your recording system or cloud platform.
User Experience
Users report excellent image quality, even in low-light or backlit conditions. The intuitive web interface makes camera management simple, and remote access allows users to monitor from anywhere. Its robust build ensures long-term reliability with minimal maintenance.
Why Choose PLANET ICA-M4580P 5MP Dome Camera?
- Delivers high-definition surveillance with precision and clarity.
- Built to withstand harsh environments and vandalism.
- Easy to install with PoE and flexible mounting options.
- Trusted by professionals for commercial, industrial, and institutional use.
- Offers exceptional value with enterprise-grade features at a competitive price.
Buy PLANET ICA-M4580P 5MP Doom Camera at the Best Price from Datacom BD Online
In Bangladesh, you can get PLANET ICA-M4580P 5MP Doom Camera From
Datacom. We have a large collection of latest PLANET IP Camera to purchase. Order Online Or Visit our Office to get yours at lowest price. The PLANET ICA-M4580P 5MP Doom Camera comes with 1 Year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of PLANET ICA-M4580P 5MP Doom Camera in Bangladesh?
The estimated price of PLANET ICA-M4580P 5MP Doom Camera in Bangladesh is 22,000৳. You can buy the PLANET ICA-M4580P 5MP Doom Camera at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
