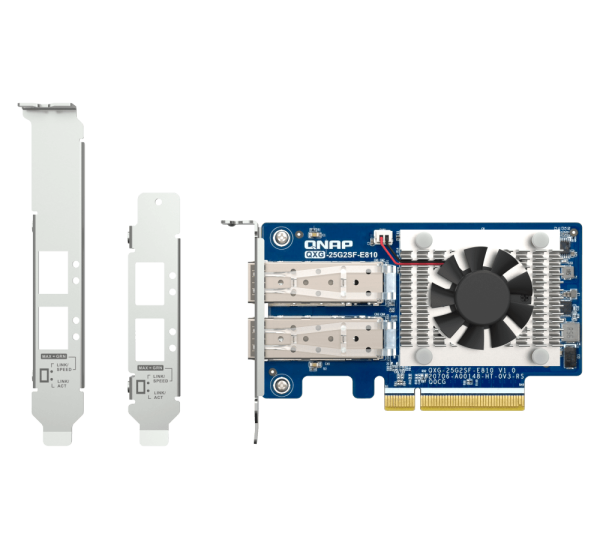

QNAP QXG-25G2SF-E810 Expansion Card
The QNAP QXG-25G2SF-E810 is a high-performance PCIe Gen4 x8 expansion card featuring the Intel® E810 controller, offering two SFP28 ports with speeds of 10Gbps or 25Gbps per port. It is designed for QNAP NAS and PC systems (Windows/Linux), providing ultra-fast networking for data-intensive applications. Compatible with select QNAP NAS models, it enhances connectivity and bandwidth for demanding enterprise and high-speed network environments.
Specification
| Specification |
Details |
| Model |
QXG-25G2SF-E810 |
| Interface |
PCIe Gen4 x8 |
| Controller |
Intel® E810 |
| Port Type |
2 x SFP28 |
| Speed |
10Gbps / 25Gbps per port |
| Compatible Systems |
QNAP NAS & PC (Windows/Linux) |
| Supported NAS Models |
Select QNAP NAS models with PCIe slots |
| Compatible OS |
Windows 10/11, Windows Server, Linux, QTS, QuTS hero |
| Driver Support |
Built-in driver support for Windows & Linux |
| RDMA Support |
Yes (RoCEv2) |
| Jumbo Frame |
Yes (up to 9K) |
| Power Consumption |
~10W |
| Dimensions |
Low-profile design, bracket included |
| Cooling |
Passive heatsink cooling |
Description of QNAP QXG-25G2SF-E810
The QNAP
QXG-25G2SF-E810 is a high-performance PCIe Gen4 x8 network expansion card, designed to enhance connectivity and bandwidth in both QNAP NAS systems and PCs. Equipped with two 25GbE SFP28 ports, this card is powered by the Intel® Ethernet Controller E810, offering exceptional speed, reliability, and efficiency for data-intensive applications.
Performance & Speed: Supporting 25Gbps per port, the QXG-25G2SF-E810 is an ideal choice for environments requiring ultra-fast networking, including data centers, high-performance computing (HPC), virtualization, and multimedia editing. The card is also backward compatible with 10GbE SFP+ networks, making it a flexible and future-proof solution for users upgrading from older standards. With a PCIe Gen4 x8 interface, this expansion card ensures maximum throughput, reducing bottlenecks and providing low-latency performance. It also supports Remote Direct Memory Access (RDMA) with RoCEv2, which enables direct data transfer between memory spaces of different devices, significantly reducing CPU load and improving overall network efficiency. Designed for QNAP NAS devices and PC/workstation environments, the QXG-25G2SF-E810 is compatible with Windows 10/11, Windows Server, Linux, QTS, and QuTS hero. Whether used in a NAS for high-speed file sharing and backup solutions or in a PC for ultra-fast data transfers, it delivers outstanding versatility and compatibility. This card supports jumbo frames up to 9K, VLAN tagging, and TCP/IP offloading, ensuring efficient data transmission and network optimization. It is built with a passive cooling heatsink, which enhances thermal management while maintaining silent operation.
Supported/Comparable Models
QNAP NAS Models (Supported)
The QXG-25G2SF-E810 is compatible with QNAP NAS models featuring PCIe Gen3 or Gen4 slots, such as:
- TS-h1277XU-RP
- TVS-h1688X
- TS-873AeU
- TS-h3088XU-RP
- TS-h1886XU-RP
Other 25GbE expansion cards with similar specifications include:
- QNAP QXG-25G2SF-CX6 (NVIDIA ConnectX-6 based)
- Intel XXV710-DA2 25GbE PCIe Network Card
- Mellanox ConnectX-5 25GbE SFP28 Adapter
Where to Buy the QNAP QXG-25G2SF-E810 Expansion Card in Bangladesh
Get your QNAP QXG-25G2SF-E810 Expansion Card from
Datacom Technologies BD online or visit our nearest office. For assistance, call or WhatsApp: +8801748173213
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of QNAP QXG-25G2SF-E810 Expansion Card in Bangladesh?
The latest price of QNAP QXG-25G2SF-E810 Expansion Card in Bangladesh starts from
BDT-35,000/= to BDT-45,000/= (Estimated) depending on quantity and warranty. To order your QNAP Expansion Card, please contact us by call or
WhatsApp (+8801748173213). You can also browse our online shop "
Datacom Technologies (BD)" and order your QNAP Expansion Card.
