Key Features

  • Brand: Ruijie Reyee
  • Model: RG-CS83-24GT4XS
  • Key Feature: 24 × 10/100/1000BASE-T RJ45 Gigabit Ethernet ports with 4 × 1GE/10GE SFP+ uplink ports
  • Key Feature: 128Gbps switching capacity, 96Mpps forwarding rate and fanless natural heat dissipation
Hotline Support: (10am - 8pm)
Get a Quote: Our team is ready to help
Email: sales@datacom.com.bd
Description

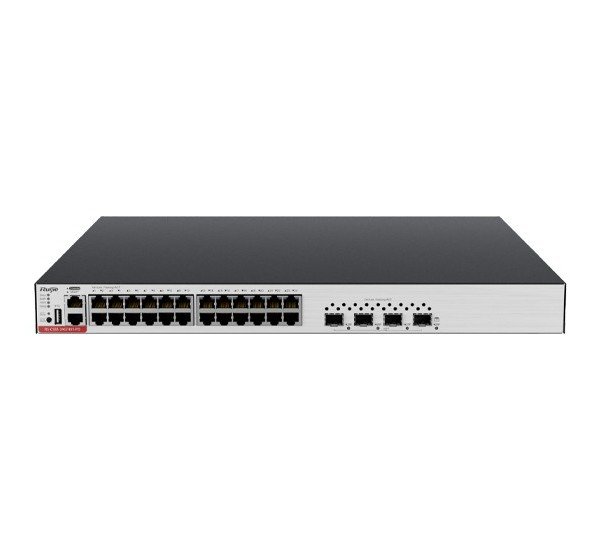

Ruijie Reyee RG-CS83-24GT4XS 24-Port Gigabit Layer 3 Managed Switch – 4-Port 10G SFP+ Uplink

The Ruijie Reyee RG-CS83-24GT4XS is a Layer 3 managed Gigabit access switch designed for enterprise networks, campus LANs and business environments requiring high-speed Gigabit access with 10G uplink connectivity. It provides 24 x 10/100/1000BASE-T RJ45 ports and 4 x 1GE/10GE SFP+ ports for flexible high-speed uplink and aggregation connectivity.

With a 128Gbps switching capacity and 96Mpps packet forwarding rate, the RG-CS83-24GT4XS provides non-blocking Gigabit access performance for demanding network deployments. The switch uses a compact 1U design and fanless natural heat dissipation, making it suitable for environments where low acoustic noise is important.

Ruijie RG-CS83-24GT4XS Key Features

  • 24 x 10/100/1000BASE-T Gigabit Ethernet ports
  • 4 x 1GE/10GE SFP+ uplink ports
  • Layer 3 managed access switch
  • 128Gbps switching capacity
  • 96Mpps packet forwarding rate
  • 16,000 MAC address table entries
  • 4,000 IPv4 ARP entries
  • 6,000 IPv4 unicast routes
  • 2,000 IPv6 unicast routes
  • 4 VSU members supported
  • 1GB system memory
  • 1.5MB switch buffer
  • Fanless natural heat dissipation
  • Built-in fixed AC power supply
  • Ruijie RGOS modular operating system
  • Ruijie Cloud management and zero-touch provisioning support

Ruijie RG-CS83-24GT4XS Technical Specifications

Specification Details
Brand Ruijie Reyee
Model RG-CS83-24GT4XS
Product Type Layer 3 Managed Gigabit Access Switch
RJ45 Ports 24 x 10/100/1000BASE-T
Uplink Ports 4 x 1GE/10GE SFP+
SFP+ Support 1GE and 10GE
Switching Capacity 128Gbps
Packet Forwarding Rate 96Mpps
CPU Dual-core CPU, 1.0GHz per core
System Memory 1GB
Flash Memory 512MB
BootROM 16MB
Switch Buffer 1.5MB
MAC Address Table 16,000 entries
IPv4 Unicast Routes 6,000
IPv6 Unicast Routes 2,000
ARP Table 4,000 entries
VSU Members Up to 4
Console Port 1 x RJ45 RS-232 console port
USB 1 x USB 2.0
Power Supply 1 x built-in fixed power supply
Rated Input Voltage 100–240V AC, 50–60Hz
Maximum Power Consumption 25W
Dimensions 442 x 220 x 43.6mm
Rack Height 1U
Weight Approximately 3.1kg
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to +70°C
Operating Humidity 10% to 90% RH, non-condensing
Cooling Fanless natural heat dissipation
Acoustic Noise Less than 20dB

Ruijie RG-CS83-24GT4XS Networking Features

The RG-CS83-24GT4XS supports a broad set of enterprise switching and Layer 3 networking functions. These include VLAN, Voice VLAN, QinQ, STP, RSTP, MSTP, ERPS, LLDP/LLDP-MED, DHCP services, DHCP snooping, ARP, IPv6 services and access control capabilities.

VLAN and Switching

  • IEEE 802.1Q VLAN
  • Up to 4K VLANs
  • Voice VLAN
  • Super VLAN and Private VLAN
  • MAC-based, interface-based, protocol-based and IP subnet-based VLAN
  • GVRP
  • Basic QinQ and Selective QinQ
  • Jumbo frames up to 9,216 bytes
  • IEEE 802.3az Energy Efficient Ethernet

Layer 3 and Network Services

  • ARP
  • DHCP Client
  • DHCP Server
  • DHCP Relay
  • DHCPv6 Client
  • DHCPv6 Server
  • DHCPv6 Relay
  • DHCP Snooping and DHCPv6 Snooping
  • DNS support

Spanning Tree and Resiliency

  • STP
  • RSTP
  • MSTP
  • ERPS G.8032
  • VSU virtualization support
  • Hardware-level dual-boot redundancy

Ruijie RG-CS83-24GT4XS SFP+ Uplink Support

The four SFP+ ports support both 1GE and 10GE operation. Supported optical media include compatible 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, 1000BASE-ZX, 10GBASE-SR, 10GBASE-LR and 10GBASE-ER modules, as well as supported 10G SFP+ active optical cables.

Actual optical distance depends on the selected transceiver, fiber type, optical budget and link configuration. SFP/SFP+ modules are not included unless specifically stated in the product package.

Ruijie Reyee RG-CS83-24GT4XS Applications

  • Enterprise campus networks
  • Corporate LAN access networks
  • Business office networks
  • Education and institutional networks
  • Healthcare network infrastructure
  • Library and public facility networks
  • Gigabit-to-10G aggregation environments
  • Server and network equipment uplinks
  • Layer 3 access switching deployments

Ruijie RG-CS83-24GT4XS Compatibility

The RG-CS83-24GT4XS is designed as an enterprise and campus access switch within the Ruijie RG-CS83 Series. Its four SFP+ ports support compatible 1GE and 10GE optical modules and active optical cables.

For optical uplinks, verify the exact SFP/SFP+ module, fiber type, transmission distance and optical budget before deployment. The RG-CS83-24GT4XS is the non-PoE model; it should not be confused with the RG-CS83-24GT4XS-P or RG-CS83-24GT4XS-PD variants.

Ruijie RG-CS83-24GT4XS Price in Bangladesh

For the latest Ruijie Reyee RG-CS83-24GT4XS price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, warranty, configuration and current market conditions.

Why Choose Ruijie RG-CS83-24GT4XS?

  • 24 Gigabit RJ45 access ports for high-density wired networking
  • Four 1GE/10GE SFP+ uplinks for flexible network aggregation
  • Layer 3 routing and enterprise switching features
  • 128Gbps switching capacity and 96Mpps forwarding performance
  • Fanless design with natural heat dissipation and low acoustic noise
  • Compact 1U form factor for enterprise and campus deployments
  • Ruijie Cloud management and zero-touch provisioning capabilities

Buy Ruijie Reyee RG-CS83-24GT4XS in Bangladesh

To purchase the Ruijie Reyee RG-CS83-24GT4XS 24-Port Gigabit Layer 3 Managed Switch in Bangladesh, contact Datacom Technologies (BD) for current pricing, product availability and deployment guidance.
