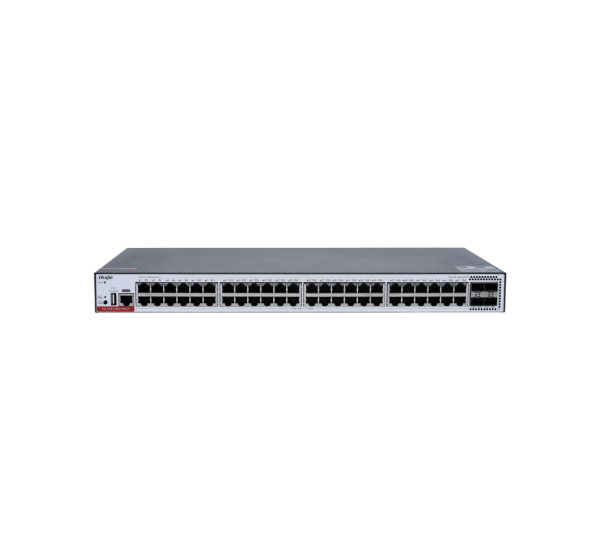

Ruijie Reyee RG-CS83-48GT4XS

Ruijie Reyee RG-CS83-48GT4XS
Share:
Ruijie Reyee RG-CS83-48GT4XS
  • Product id:  3466
  • Stock: In Stock
  • Brand: Ruijie
  • Model: RG-CS83-48GT4XS
Payment Option
Message
on Whatsapp

Key Features

  • Brand: Ruijie
  • Model: RG-CS83-48GT4XS
  • Key Feature: 48 × 10/100/1000BASE-T RJ45 Gigabit access ports with 4 × 1GE/10GE SFP+ uplink ports
  • Key Feature: 176 Gbps switching capacity, 132 Mpps forwarding rate and Layer 3 routing with OSPF, RIP, VRF and PBR support
Hotline Support: (10am - 8pm)
Get a Quote: Our team is ready to help
Email: sales@datacom.com.bd
Description

Ruijie Reyee RG-CS83-48GT4XS 48-Port Gigabit Layer 3 Managed Switch – 4× 10G SFP+ Uplink

The Ruijie RG-CS83-48GT4XS is a 48-port Layer 3 managed Gigabit access switch designed for enterprise networks, campus LANs and large-scale Gigabit access deployments. It combines 48 × 10/100/1000BASE-T RJ45 ports with 4 × 1GE/10GE SFP+ uplink ports for flexible high-speed network connectivity.

With a 176 Gbps switching capacity and 132 Mpps packet forwarding rate, the RG-CS83-48GT4XS provides non-blocking Gigabit access and high-speed uplink connectivity. Its Layer 3 feature set includes static routing, RIP, OSPF, IPv4/IPv6 VRF, PBR and multicast routing capabilities.

Ruijie RG-CS83-48GT4XS Key Features

  • 48 × 10/100/1000BASE-T Gigabit RJ45 ports
  • 4 × 1GE/10GE SFP+ uplink ports
  • 176 Gbps switching capacity
  • 132 Mpps packet forwarding rate
  • Layer 3 managed switching
  • 1 GHz dual-core CPU
  • 1 GB system memory
  • 512 MB flash memory
  • 16 MB BootROM with hardware boot redundancy
  • 16,000-entry MAC address table
  • Supports up to 4 VSU members
  • Ruijie Cloud management and multiple management interfaces

Ruijie RG-CS83-48GT4XS Technical Specifications

Specification Details
Brand Ruijie
Series RG-CS83 Series
Model RG-CS83-48GT4XS
Product Type Layer 3 Managed Access Switch
RJ45 Ports 48 × 10/100/1000BASE-T
Uplink Ports 4 × 1GE/10GE SFP+
Console Port 1 × RJ45 console
USB 1 × USB 2.0
Switching Capacity 176 Gbps
Packet Forwarding Rate 132 Mpps
CPU Dual-core CPU, 1.0 GHz per core
Memory 1 GB
Flash Memory 512 MB
BootROM 16 MB
Switch Buffer 1.5 MB
MAC Address Table 16,000 entries
ARP Table 4,000 entries
IPv4 Unicast Routes 6,000
IPv4 Multicast Routes 1,000
IPv6 Unicast Routes 2,000
IPv6 Multicast Routes 750
VSU Members Up to 4
VLAN IEEE 802.1Q, up to 4K VLANs
Routing Static routing, RIP/RIPng, OSPFv2/OSPFv3, VRF and PBR
Multicast IGMP, MLD, PIM and multicast snooping
Dimensions 442 × 220 × 43.6 mm
Rack Height 1U
Weight Approximately 3.25 kg
Power Supply 1 × fixed internal power supply
Rated Input Voltage 100–240V AC
Maximum Power Consumption 40W
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to +70°C
Operating Humidity 10% to 90% RH, non-condensing
Surge Protection Up to 10kV port surge protection

Layer 3 Networking and Management

The RG-CS83-48GT4XS provides a broad Layer 2 and Layer 3 feature set for enterprise and campus network deployments. Supported functions include VLAN, QinQ, STP/RSTP/MSTP, ERPS, LLDP, DHCP services, IPv4/IPv6 routing, VRRP, BFD, multicast routing, ACL, QoS, 802.1X authentication and port security.

Network administrators can manage the switch through Ruijie Cloud as well as CLI, web, SNMP, SSH, Telnet and other supported management methods. The switch also supports NETCONF, gRPC, sFlow and network monitoring features for larger managed environments.

High-Speed 10G SFP+ Uplinks

The four SFP+ uplink ports support both 1GE SFP and 10GE SFP+ transceivers, allowing the switch to connect Gigabit access networks to higher-speed aggregation or core infrastructure. This provides flexible uplink design without requiring a separate uplink expansion module.

Ruijie RG-CS83-48GT4XS Applications

  • Enterprise campus LAN networks
  • Large-scale Gigabit access networks
  • Corporate office networks
  • Education and university networks
  • Healthcare and medical network infrastructure
  • Web and data center access environments
  • Aggregation of Gigabit Ethernet users
  • 10G uplink connectivity to distribution or core switches

Ruijie RG-CS83-48GT4XS Compatibility

The RG-CS83-48GT4XS operates with standard Ethernet infrastructure and supports 1GE SFP and 10GE SFP+ transceivers on its uplink interfaces. Exact transceiver, fiber and uplink compatibility should be checked against the required link speed, fiber type and Ruijie-supported module list before deployment.

This is the non-PoE RG-CS83-48GT4XS model. It should not be confused with the RG-CS83-48GT4XS-P or RG-CS83-48GT4XS-PD variants, which provide PoE/PoE+ functionality.

Ruijie RG-CS83-48GT4XS Price in Bangladesh

For the latest Ruijie RG-CS83-48GT4XS price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, warranty and current stock conditions.

Why Choose Ruijie RG-CS83-48GT4XS?

  • 48 Gigabit RJ45 access ports for high-density network connectivity
  • Four flexible 1GE/10GE SFP+ uplinks for high-speed network expansion
  • 176 Gbps switching capacity and 132 Mpps forwarding performance
  • Comprehensive Layer 3 routing and enterprise networking features
  • Ruijie Cloud and multiple local network management options
  • 1U rack-mount form factor suitable for enterprise network cabinets

Buy Ruijie RG-CS83-48GT4XS in Bangladesh

To purchase the Ruijie RG-CS83-48GT4XS 48-Port Gigabit Layer 3 Managed Switch in Bangladesh, contact Datacom Technologies (BD) for current pricing, availability and technical compatibility information.
