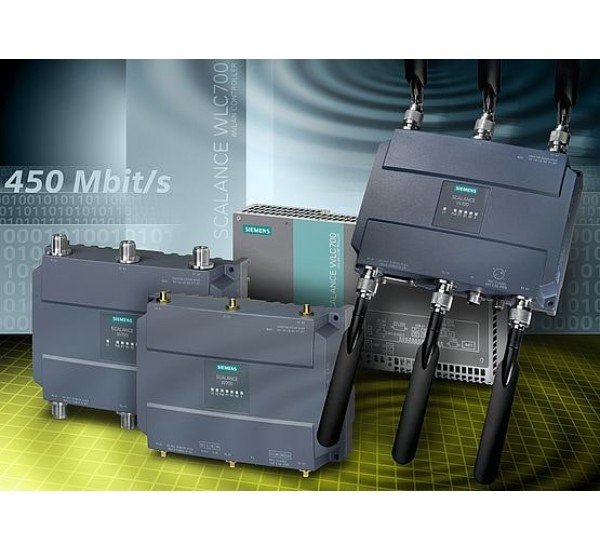

Siemens W786 Industrial Access Point
The
Siemens SCALANCE W786-2 RJ45 Industrial Access Point offers robust wireless connectivity with dual radios supporting IEEE 802.11a/b/g/h/n standards, ensuring high-speed data rates of up to 450 Mbps per radio. Designed for industrial environments, it operates on both 2.4 GHz and 5 GHz frequency bands and features six R-SMA antenna connectors for enhanced signal strength. With flexible power options including 24 V DC redundancy and Power over Ethernet (PoE), this access point ensures reliable and secure network performance.
Specification
| Feature |
Details |
| Model |
SCALANCE W786-2 RJ45 |
| Wireless Standards |
IEEE 802.11a/b/g/h/n |
| Frequency Bands |
2.4 GHz and 5 GHz |
| Radios |
2 (dual-radio) |
| Max Data Rate |
450 Mbps per radio |
| Antenna Connections |
6 x R-SMA connectors |
| Ethernet Port |
1 x RJ45 (10/100/1000 Mbps) |
| Power Supply |
24 V DC (redundant) or Power over Ethernet (PoE) |
| Protection Rating |
IP65 (dust-tight and water-resistant) |
| Operating Temperature |
-40°C to +60°C |
| Humidity Tolerance |
100% at 25°C |
| Mounting Options |
Wall or DIN rail mounting |
| Security Features |
WPA2/802.11i/e |
| Dimensions (W x D x H) |
251 mm x 72 mm x 251 mm |
| Weight |
Approximately 3.5 kg |
? Product Description
The
Siemens SCALANCE W786-2 RJ45 is a rugged industrial wireless access point designed for demanding outdoor environments. With dual-radio support, it operates on both 2.4 GHz and 5 GHz frequency bands, delivering up to 450 Mbps per radio. This ensures high-speed, reliable wireless communication suitable for industrial applications.
Equipped with six R-SMA antenna connectors, the device allows for flexible antenna configurations to optimize coverage. Its single RJ45 Ethernet port supports gigabit speeds, facilitating seamless integration into existing network infrastructures. Power can be supplied redundantly via 24 V DC or through Power over Ethernet (PoE), offering versatility in deployment.
The SCALANCE W786-2 boasts an IP65 protection rating, making it dust-tight and resistant to water jets, ideal for harsh industrial settings. It operates reliably in temperatures ranging from -40°C to +60°C and can withstand 100% humidity at 25°C. Mounting options include wall and DIN rail installations, providing flexibility to suit various setups.
Key Features
- Rugged Industrial Design: Built to operate in harsh environments (temperature, dust, humidity).
- High-Speed Wireless Connectivity: Supports IEEE 802.11a/b/g/n/ac (dual band 2.4 GHz and 5 GHz).
- MIMO Technology: Enhances signal strength and coverage through multiple input/output antennas.
- Flexible Power Options: Supports Power over Ethernet (PoE) and standard 24V DC input.
- Robust Security: WPA3, firewall, MAC filtering, and VLAN support for secure wireless communication.
- Advanced Management: Web-based interface, SNMP, and integration with SCALANCE network management tools.
- Seamless Roaming: Fast and reliable handover for mobile devices like AGVs or maintenance tablets.
- DIN Rail Mountable: Designed for quick and stable installation in control cabinets.
Where It Can Be Used?
- Factory Automation: Connect wireless sensors, PLCs, and operator panels.
- Logistics & Warehousing: Support for AGVs, forklifts, and handheld scanners.
- Transportation Systems: Reliable connectivity for trains, buses, or traffic infrastructure.
- Oil & Gas / Mining Sites: Withstand extreme conditions while maintaining connectivity.
- Smart Grids: Wireless backbone for substations or remote monitoring units.
Installation Steps
- Site Survey: Evaluate the industrial space to determine optimal AP placement and interference points.
- Mount the Device: Secure the W786 using DIN rail or wall mounting bracket.
- Power Up: Connect power via PoE switch or 24V DC power source.
- Connect to Network: Use Ethernet to link to the core network or edge switch.
- Configure Settings: Access web UI for SSID setup, security protocols, channel selection, and VLANs.
- Test and Validate: Run signal strength, speed, and roaming tests to ensure coverage.
User Experience
- Stable & Reliable: Maintains connectivity even in areas with heavy machinery and RF interference.
- Low Latency: Ideal for real-time data transmission in automation systems.
- Scalable: Easy to expand coverage with additional access points.
- Easy Management: Intuitive interface and integration with Siemens’ industrial network software.
- Secure Connectivity: Trusted for critical applications with industrial-grade encryption and user controls.
Why Choose Siemens W786 Industrial Access Point?
- Engineered for Industry: Unlike consumer-grade APs, it's built for the rigors of industrial environments.
- Seamless Integration: Works flawlessly with Siemens SCALANCE and SIMATIC products.
- Future-Proofing: Support for modern Wi-Fi standards ensures longevity.
- Trusted Brand: Siemens' reputation in industrial automation adds credibility and long-term support.
- Reduced Downtime: Reliable operation ensures continuous data flow and system uptime.
Buy Siemens W786 Industrial Access Point at the Best Price from Datacom BD Online
In Bangladesh, you can get original
Siemens W786 Industrial Access Point From
Datacom. We have a large collection of latest
Siemens Access Point to purchase. Order Online Or Visit our Office to get yours at lowest price. The Siemens W786 Industrial AP comes with 1-years warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Siemens W786 Industrial Access Point in Bangladesh?
The estimated price
Siemens W786 Industrial Access Point in Bangladesh is 145,500৳. You can buy the Siemens W786 Industrial AP at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
