SUNON MF40101V2-1000U-G99 40X40X10MM 3 PIN 12V FAN

About SUNON MF40101V2-1000U-G99 40X40X10MM 3 PIN 12V FAN

Product Specification

Feature	Specification
Manufacturer	Sunon
Model Number	MF40101V2-1000U-G99
Fan Type	DC Axial
Size (mm)	40 x 40 x 10
Bearing Type	Vapo with MagLev Tech
Rated Voltage (VDC)	12
Operating Voltage Range (VDC)	6 to 13.8
Current Rating (A)	0.04
Power Consumption (W)	0.59
Airflow (CFM)	7.0
Airflow (m³/h)	11.89
Static Pressure (H₂O)	0.12
Speed (RPM)	5800
Noise Level (dBA)	27.0
Wire Connector	3-Pin with RPM Monitoring
Operating Temperature (°C)	-10 to 70
Mounting Holes	4 x 4.3mm diameter
Material (Frame)	Thermoplastic PBT of UL 94V-0
Material (Blade)	Thermoplastic PBT of UL 94V-0
Direction of Rotation	Counter-clockwise (viewed from front)

Description

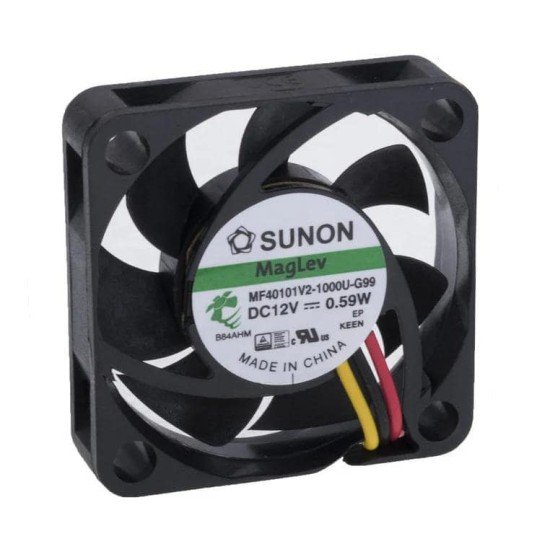

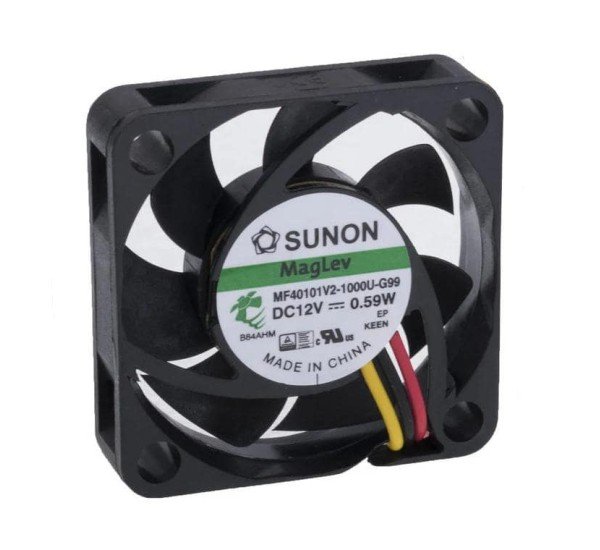

The SUNON MF40101V2-1000U-G99 is a compact, 40mm x 40mm x 10mm, 12-volt DC axial fan. It utilizes a Vapo bearing with MagLev technology, offering a balance of quiet operation and extended lifespan compared to traditional sleeve bearings. This fan delivers a maximum airflow of 7.0 CFM (cubic feet per minute) or 11.89 m³/h (cubic meters per hour) with a static pressure of 0.12 H₂O (water column). The fan operates at a speed of 5800 RPM (revolutions per minute), generating a noise level of 27.0 dBA (decibels A-weighted), which is relatively quiet for its airflow capacity. It features a 3-pin connector that provides power to the fan and allows for RPM monitoring for potential speed control applications. The MF40101V2-1000U-G99 is constructed with a durable thermoplastic PBT (polybutylene terephthalate) frame and blade, both certified UL 94V-0 for flame retardance. The fan mounts using four holes with a diameter of 4.3mm.

What is the price of SUNON MF40101V2-1000U-G99 fan in BD?

At Server SSD Bangladesh, We offers all models of SUNON Fan including SUNON MF40101V2-1000U-G99 fan at the best price in Bangladesh. Call now for more information.
