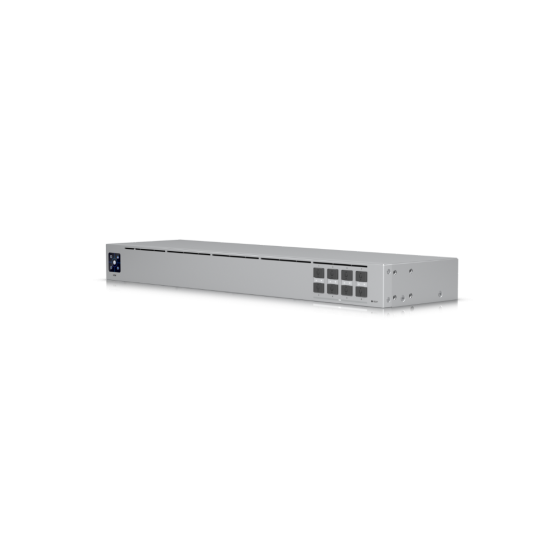

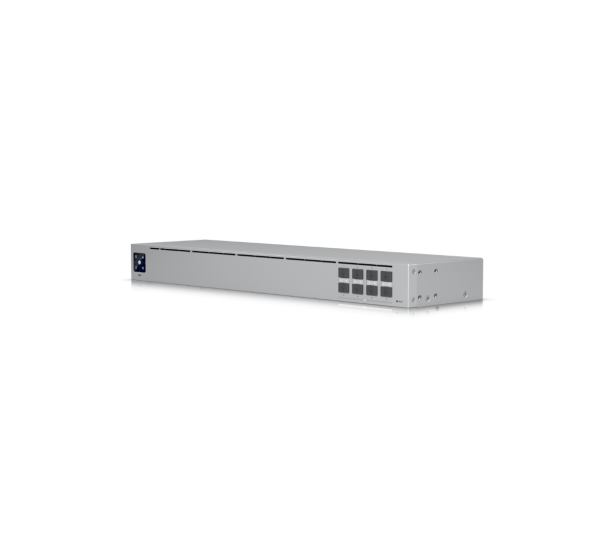

Ubiquiti UniFi USW-Aggregation 8-Port 10G SFP+ Layer 2 Managed Switch

The Ubiquiti UniFi USW-Aggregation is an 8-port Layer 2 managed aggregation switch designed for high-speed 10GbE networking, switch-to-switch uplinks, server connectivity and fiber-based network aggregation. It provides eight 10G SFP+ interfaces with support for both 10G and 1G connections.

With a 160Gbps switching capacity, 80Gbps total non-blocking throughput and a 119 Mpps forwarding rate, the USW-Aggregation provides a compact high-bandwidth platform for consolidating multiple high-speed network links. It integrates with the UniFi Network platform for centralized monitoring and configuration.

Ubiquiti UniFi USW-Aggregation Features

• 8 × 10G/1G SFP+ Ethernet ports
• 10GbE fiber and DAC connectivity
• 160Gbps switching capacity
• 80Gbps total non-blocking throughput
• 119 Mpps forwarding rate
• Layer 2 managed switching
• LACP port aggregation support
• STP and RSTP support
• IGMP Snooping and advanced IGMP configuration
• 802.1X control
• MAC-based ACLs and device isolation
• DHCP Snooping and Guarding
• Port isolation and port mirroring
• Jumbo frame support
• LLDP-MED and Voice VLAN support
• Loop protection and storm control
• 1.3-inch LCM touchscreen display
• Rack-mountable 1U form factor

USW-Aggregation Technical Specifications

Ubiquiti USW-Aggregation SFP+ Connectivity

The USW-Aggregation provides eight SFP+ interfaces for high-speed network aggregation. Compatible 10G multimode and single-mode optical modules, direct-attach cables and supported SFP+ to RJ45 adapters can be used according to the requirements of the connected network.

Ubiquiti documentation identifies the switch as supporting 1G and 10G SFP+ connectivity. Ubiquiti also specifies support for up to eight compatible optical modules such as the UACC-OM-MM-10G and UACC-OM-SM-10G, while the UACC-CM-RJ45-10G copper adapter is limited to four modules because of power consumption.

UniFi USW-Aggregation Applications

• 10GbE network aggregation
• Core-to-access switch uplinks
• High-speed server connectivity
• NAS and storage network connectivity
• Data center network aggregation
• Fiber backbone connections
• 10GbE switch interconnection
• Small and medium enterprise network infrastructure
• High-bandwidth UniFi network deployments

Ubiquiti UniFi USW-Aggregation Compatibility

The USW-Aggregation is designed to operate within the UniFi ecosystem and is managed through UniFi Network. Ubiquiti specifies UniFi Network version 5.14.12 or later for the current technical specification.

Optical transceivers, DAC cables and copper SFP+ adapters should be selected according to Ubiquiti compatibility requirements and the desired link speed, fiber type and transmission distance.

Ubiquiti USW-Aggregation Price in Bangladesh

For the latest Ubiquiti UniFi USW-Aggregation price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, warranty and current market conditions.

Why Choose Ubiquiti UniFi USW-Aggregation?

• Eight high-speed 10G SFP+ interfaces in a compact 1U rack-mount design
• 160Gbps switching capacity for high-bandwidth aggregation
• 80Gbps total non-blocking throughput
• Centralized management through UniFi Network
• Supports VLAN, LACP, STP/RSTP, IGMP Snooping and 802.1X features
• Suitable for fiber, DAC and compatible SFP+ copper connectivity

Buy Ubiquiti UniFi USW-Aggregation in Bangladesh

To purchase the Ubiquiti UniFi USW-Aggregation 8-Port 10G SFP+ Layer 2 Managed Switch in Bangladesh, contact Datacom Technologies (BD) for current pricing, availability and compatibility information.

Email: sales@datacom.com.bd
