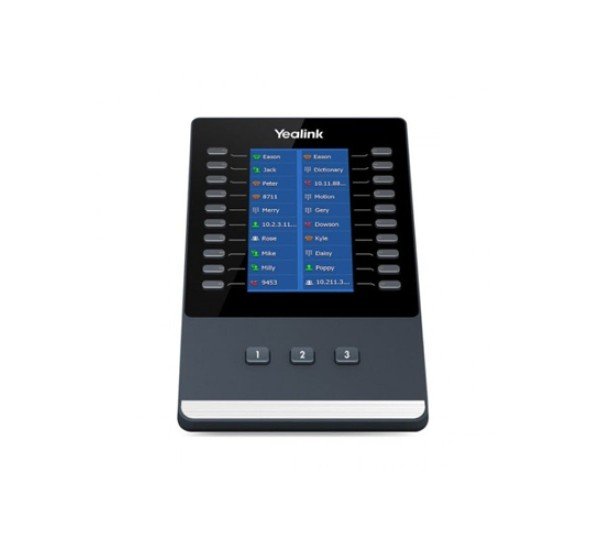

Yealink EXP43 Expansion Module

Yealink EXP43 Expansion Module

Specification

Feature	Specification
Display	4.3-inch color LCD (272 x 480 resolution)
Keys	20 physical keys with dual-color LED per page
Programmable Keys	Up to 60 keys (3 pages of 20 keys each)
Compatibility	Yealink T43U, T46U, T48U IP Phones
Connection	RJ12 (6P6C) cable to connect with host phone
Daisy Chain Support	Up to 3 modules per phone
Power Supply	Supplied by the connected IP phone
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Operating Humidity	10% to 95%, non-condensing
Dimensions (W x D x H x T)	196 mm x 124 mm x 137 mm x 42 mm
Weight	300 g (0.66 lb)
Mounting	Stand with 2 adjustable angles

Description

The Yealink EXP43 Expansion Module is designed to enhance productivity for enterprise and office environments. Equipped with a 4.3-inch color LCD screen, it offers a user-friendly visual interface and allows seamless operation. The module features 20 physical keys per page, each equipped with a dual-color LED to indicate the status of each line, speed dial, Busy Lamp Field (BLF), or call transfer. With three switchable pages, users can configure up to 60 programmable keys, enabling efficient call management and quick access to contacts. Compatible with Yealink T43U, T46U, and T48U IP phones, the EXP43 can daisy-chain up to three modules to a single phone, accommodating high-volume call handling. It connects effortlessly via an RJ12 cable, drawing power directly from the connected IP phone, eliminating the need for a separate power source. Its ergonomic design and adjustable stand angles ensure comfortable usage in various office setups. Ideal for receptionists, administrative assistants, and power users who handle large call volumes, the EXP43 provides dynamic and efficient call management. Whether monitoring extensions, managing multiple calls, or accessing enhanced phone functions, the EXP43 optimizes workplace communication with ease and reliability.

Key Features:

1. High-Resolution Color Screen: 4.3-inch 272x480-pixel color display for a vivid visual experience.
2. 20 Physical Keys with Dual-Color LEDs: Each key can be programmed with up to 60 different functions using page switching.
3. Three Page Views: Easily switch between pages to access additional programmable keys.
4. Daisy-Chain Support: Connect up to three expansion modules for maximum productivity.
5. Flexible Functionality: Supports BLF (Busy Lamp Field), Speed Dial, Call Forwarding, Call Park, Call Pickup, and more.
6. Seamless Integration: Compatible with Yealink T4 series IP phones, including T43U, T46U, and T48U.
7. Power Supply via Phone: No additional power adapter required.
8. Customizable Icons and Labels: Easily personalize the interface.

Where It Can Be Used?

1. The Yealink EXP43 Expansion Module is ideal for:
2. Receptionists and Administrative Assistants: To monitor and manage a large volume of calls.
3. Call Center Agents: To quickly transfer and park calls.
4. Executives and Managers: To efficiently handle calls with speed dial and BLF.
5. Shared Workspaces and Office Environments: To enhance productivity and streamline communication.

Installation Steps:

1. Connect to the IP Phone: Plug the EXP43 into the compatible Yealink T4 series IP phone via the dedicated EXT port.
2. Secure the Stand: Attach the stand for stability.
3. Configure via Phone Interface:
4. Go to the phone's settings.
5. Select EXP43 Configuration.
6. Assign functions to each programmable key.
7. Daisy-Chain (if applicable): Connect additional EXP43 modules for extended functionality.
8. Reboot the Phone: Allow the phone to detect and configure the expansion module.
9. Test the Setup: Make sure all keys are functioning as programmed.

User Experience:

• Enhanced Efficiency: Reduce time spent navigating menus by using programmable keys.
• Visual Clarity: The high-resolution color display provides clear visual cues.
• Ease of Use: Simple navigation between pages and intuitive button layout.
• Customizability: Personalize the screen and key functions to suit individual needs.
• Reliable Performance: Seamlessly integrates with Yealink IP phones without lag.

Why Choose Yealink EXP43 Expansion Module?

• Boost Productivity: Streamline call handling with one-touch access to key functions.
• Versatile and Scalable: Connect multiple modules for increased capacity.
• Superior Compatibility: Works seamlessly with Yealink’s T4 series phones.
• Durable and Robust: Built for high-traffic environments.
• Cost-Effective Solution: Provides advanced features without requiring additional power supplies.

Buy Yealink EXP43 Expansion Module at the Best Price from Datacom BD Online

In Bangladesh, you can get original Yealink EXP43 Expansion Module From Datacom. We have a large collection of latest Yealink Expansion Module to purchase. Order Online Or Visit our Office to get yours at lowest price. The Yealink EXP43 Expansion Module comes with 1-year warranty.
