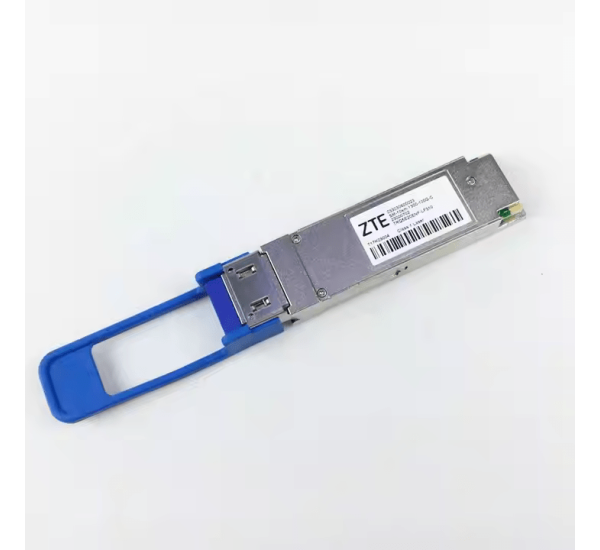

ZTE 100G 10KM QSFP28 LR4 Optical Transceiver Module
The ZTE 100G 10KM Transceiver Module is a high-speed optical transceiver designed for 100Gbps network connectivity over single-mode fiber. It uses a compact QSFP28 form factor and is intended for compatible ZTE networking equipment requiring long-reach 100G optical transmission.
With a maximum transmission distance of 10km, the module is suitable for data center interconnects, enterprise backbone networks, network aggregation, and other applications where reliable 100Gbps connectivity is required across extended fiber links.
ZTE 100G 10KM Optical Connectivity
The module is designed for 100Gbps long-reach optical links using single-mode fiber. Its 10km transmission capability makes it suitable for connections between network switches, routers, aggregation platforms, and other compatible 100G optical endpoints.
The 100G LR4 architecture uses multiple optical wavelengths to transmit the high-bandwidth signal over a duplex single-mode fiber connection. The actual achievable distance depends on fiber attenuation, connector losses, optical dispersion, and the overall link budget.
QSFP28 Single-Mode Fiber Transmission
The compact QSFP28 form factor is designed for high-density 100Gbps networking equipment. The module is intended for single-mode fiber installations where longer reach is required than short-range multimode 100G modules can provide.
10km Long-Reach Network Links
With a specified reach of up to 10km, the module is appropriate for extended campus, metro, data center, and backbone connections. Optical link-budget verification is recommended before deployment.
Technical Specifications
| Specification | Details |
| Brand | ZTE |
| Product Type | 100Gbps QSFP28 Optical Transceiver |
| Form Factor | QSFP28 |
| Data Rate | 100Gbps |
| Maximum Distance | 10km |
| Optical Type | LR4 |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
Applications
- 100GbE data center interconnects
- Enterprise backbone networks
- Network aggregation
- Telecommunications infrastructure
- Metro network connectivity
- Long-distance single-mode fiber links
Compatibility
The ZTE 100G 10KM transceiver is designed for compatible networking equipment supporting 100Gbps QSFP28 optical modules. The exact host device, transceiver coding, firmware, fiber interface, and supported module list should be verified before installation.
For 10km deployments, the complete optical path should also be checked to ensure that the installed single-mode fiber and connected equipment provide an appropriate optical budget.
Buy ZTE 100G 10KM Transceiver in Bangladesh
Datacom Technologies (BD) supplies ZTE optical transceivers, enterprise networking equipment, fiber connectivity products, and telecommunications hardware in Bangladesh. The ZTE 100G 10KM Transceiver Module is suitable for compatible network infrastructure requiring high-bandwidth 100Gbps connectivity over single-mode fiber.
For corporate, ISP, telecom, and project requirements, customers can contact Datacom Technologies (BD) for product selection assistance, technical consultation, and professional networking equipment supply.
