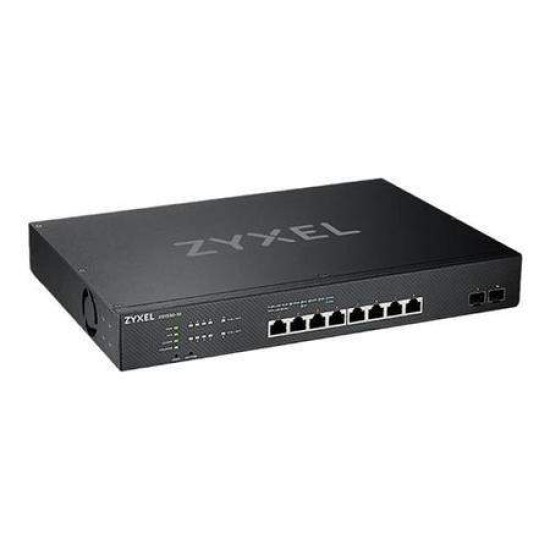

Zyxel XS1930-10 10-Port 10G Multi-Gigabit Lite-L3 Smart Managed Switch

The Zyxel XS1930-10 is a 10-port 10G Multi-Gigabit Smart Managed Switch designed for high-speed business networks, server connectivity, Wi-Fi infrastructure, workstations and network aggregation. It combines eight Multi-Gigabit RJ-45 ports with two 10G SFP+ fiber uplink ports.

Each RJ-45 port supports 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps Ethernet, allowing the switch to connect a wide range of network devices without forcing 2.5G or 5G capable equipment down to standard Gigabit Ethernet. The two SFP+ interfaces provide 10Gbps fiber or compatible direct-attach connectivity.

Zyxel XS1930-10 10G Multi-Gigabit Switch Features

• 10-port 10G Multi-Gigabit Smart Managed Switch
• 8 × 100M/1G/2.5G/5G/10G RJ-45 Ethernet ports
• 2 × 10G SFP+ fiber uplink ports
• 200Gbps switching capacity
• 148.8Mpps forwarding rate
• 2MB packet buffer
• 16K MAC address table
• Lite-L3 functionality with static routing
• NebulaFlex support for standalone or Nebula cloud management
• IEEE 802.3bz Multi-Gigabit Ethernet support
• 5-color port LEDs for quick speed identification
• Smart fan design for quieter operation

Zyxel XS1930-10 Technical Specifications

Zyxel XS1930-10 Multi-Gigabit Connectivity

The eight copper ports on the XS1930-10 support multiple Ethernet speeds from 100Mbps through 10Gbps. This makes the switch suitable for servers, workstations, NAS systems, Wi-Fi access points and other devices requiring bandwidth above traditional Gigabit Ethernet.

For 10Gbps operation, Zyxel specifies Cat 6a cabling for distances up to 100m or Cat 6 cabling for distances up to 50m. With lower-category cabling or unsuitable link conditions, the port can negotiate at a lower supported speed.

10G SFP+ Uplink Ports

The two dedicated 10G SFP+ interfaces provide high-speed fiber uplinks or compatible SFP+ connectivity. They can be used for switch-to-switch connections, server uplinks, aggregation links and longer-distance network infrastructure where optical connectivity is preferred.

NebulaFlex Cloud Management

Zyxel NebulaFlex allows the XS1930-10 to operate either in standalone management mode or with Zyxel Nebula cloud management. This provides flexibility for organizations that want local switch administration or centralized cloud-based network management.

Lite-L3 Smart Managed Switching

The XS1930-10 provides Smart Managed functionality with Lite-L3 capabilities, including static routing. It can therefore be used not only as an access switch but also in suitable network aggregation and segmentation deployments.

Zyxel XS1930-10 Applications

• 10Gbps business network aggregation
• Server and workstation connectivity
• NAS and high-speed storage networking
• Wi-Fi 6, Wi-Fi 6E and other Multi-Gigabit access point connectivity
• 10G switch-to-switch uplinks
• Small and medium business networks
• High-speed office network upgrades
• Network aggregation for Multi-Gigabit devices

Zyxel XS1930-10 Compatibility

The XS1930-10 supports standard Ethernet devices operating at 100Mbps, 1Gbps, 2.5Gbps, 5Gbps or 10Gbps through its RJ-45 Multi-Gigabit ports. The SFP+ ports support compatible 10G SFP+ networking modules and connectivity solutions.

For 10Gbps copper links, appropriate Category 6 or Category 6A cabling should be selected according to the required distance. SFP+ optical modules, DAC cables and fiber infrastructure should also be selected according to the specific link requirements and Zyxel compatibility.

Zyxel XS1930-10 Price in Bangladesh

For the latest Zyxel XS1930-10 10-Port 10G Multi-Gigabit Smart Managed Switch price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, warranty and current stock status.

Why Choose Zyxel XS1930-10?

• Eight Multi-Gigabit RJ-45 ports with speeds up to 10Gbps
• Two dedicated 10G SFP+ ports for high-speed uplinks
• 200Gbps switching capacity for high-bandwidth network traffic
• NebulaFlex support for flexible cloud or standalone management
• Lite-L3 static routing capabilities
• Suitable for servers, NAS, workstations and high-speed Wi-Fi infrastructure

Buy Zyxel XS1930-10 in Bangladesh

To purchase the Zyxel XS1930-10 10-Port 10G Multi-Gigabit Lite-L3 Smart Managed Switch in Bangladesh, contact Datacom Technologies (BD) for current pricing, compatibility confirmation and sourcing information.
