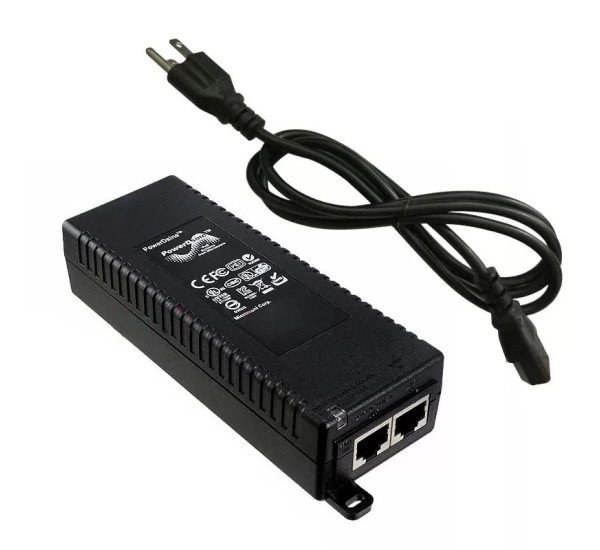

HPE Aruba PD-9001GR - PoE injector

Specification	Details
Device Type	PoE injector – external
Compatibility	Designed for various Aruba AP and Instant IAP models, including AP-103, AP-204, AP-205, AP-207, AP-214, AP-215, AP-224, AP-225, AP-228, AP-274, AP-275, AP-277, AP-304, AP-305, AP-314, AP-315, AP-324, AP-325, AP-334, AP-335, AP-365, AP-367, RAP-108, RAP-109; Instant IAP-103, IAP-204, IAP-205, IAP-207, IAP-214, IAP-215, IAP-224, IAP-225, IAP-228, IAP-274, IAP-275, IAP-277, IAP-304, IAP-305, IAP-314, IAP-315, IAP-324, IAP-325, IAP-334, IAP-335
Dimensions (WxDxH)	5.3 cm x 14 cm x 3.25 cm
Weight	200 g
Input Voltage	AC 100-240 V
Output Voltage	55 V
Power Capacity	30 Watt
Input Connectors	1 x power
Output Connectors	1 x RJ-45
Interfaces	2 x Gigabit LAN – RJ-45
Compliant Standards	FCC Class B certified, UL, VCCI, cUL, GS, EN55024, EN55022 Class B, FCC Part 15, RoHS, IEC 60950-1, WEEE
Features	LED indicators
MTBF (Mean Time Between Failures)	100,000 hours
Operating Temperature Range	-20°C to 40°C
Operating Humidity Range	0 – 90% (non-condensing)
Warranty	1 year

Description

The HPE Aruba PD-9001GR PoE injector is a high-power solution designed to remotely power current and emerging high-power applications. Generating up to 30W, it enables remote power for a new range of applications, including 802.11n Access Points, pan-tilt-zoom (PTZ) cameras, and video phones. The injector complies with the IEEE 802.3at PoE standard and is backward compatible with IEEE 802.3af, allowing it to power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices, such as WiMAX and wireless IEEE 802.11n access points. Its compact design, measuring 5.3 cm in width, 14 cm in depth, and 3.25 cm in height, and weighing 200 grams, makes it suitable for various installation environments. The device operates efficiently within a temperature range of -20 °C to 40 °C and a humidity range of 0% to 90% (non-condensing). With compliance to multiple standards, including FCC Class B, UL, VCCI, and RoHS, the PD-9001GR ensures reliable and safe operation. Its Mean Time Between Failures (MTBF) is 100,000 hours, indicating a high level of reliability.

Key Features:

1. High Power Output: Supports IEEE 802.3at standard, delivering up to 30W of power.
2. Gigabit Ethernet Support: Ensures fast data transfer with a throughput of 10/100/1000 Mbps.
3. Plug-and-Play Installation: No configuration needed—just connect the power and data cables.
4. Reliable and Durable: Built with high-quality components for long-lasting performance.
5. Compact and Lightweight Design: Easy to install in various environments.
6. Enhanced Compatibility: Compatible with a wide range of PoE-enabled devices like IP cameras, wireless access points, and VoIP phones.
7. Overload Protection: Integrated surge protection for safer operation.

Where It Can Be Used:

• Corporate Offices: Powering wireless access points and VoIP phones.
• Retail Environments: Supporting IP security cameras for surveillance.
• Educational Institutions: Providing power to interactive whiteboards and network devices.
• Warehouses: Enabling PoE-powered barcode scanners and Wi-Fi access points.
• Outdoor Installations: Suitable for outdoor PoE devices when paired with weatherproof enclosures.

Installation Steps:

1. Connect the Data Cable: Plug the Ethernet cable from your network switch into the "Data In" port.
2. Connect the PoE Cable: Attach the Ethernet cable going to the PoE-enabled device to the "Data & Power Out" port.
3. Plug In the Power Adapter: Connect the power cord to a power outlet.
4. Check Indicators: Ensure the LED indicators show proper power and data transmission.
5. Test the Device: Verify that the powered device (e.g., access point or camera) is receiving power and data.

User Experience:

• Effortless Setup: The plug-and-play design makes installation a breeze.
• Stable Power Supply: Maintains consistent power to critical network devices.
• Minimal Downtime: Surge protection and overload prevention enhance reliability.
• Compact Design: Takes up minimal space in crowded server rooms or office setups.

Why Choose HPE Aruba PoE Power Injector?

1. High Performance: Supports high-speed data transmission while delivering adequate power.
2. Versatile Applications: Compatible with various PoE devices across different environments.
3. Reliable Brand: Aruba by HPE is known for quality and durability.
4. Cost-Effective Solution: Saves money by eliminating the need for separate power supplies.
5. Safety Features: Built-in surge protection safeguards your investment.

Buy HPE Aruba PD-9001GR - PoE injector from Datacom BD

Get the original HPE Aruba PD-9001GR - PoE injector in Bangladesh from Datacom BD. We offer a wide range of the latest Aruba PoE injector at competitive prices. Order online or visit our office to get yours at the best price. This HPE Aruba PoE injector comes with 1 Year warranty.

Get in Touch with Datacom Technologies (BD)

• ? Call/WhatsApp: 01748173213
• ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com

What is the price of HPE Aruba PD-9001GR - PoE injector in Bangladesh?

The latest price of HPE Aruba PD-9001GR - PoE injector in Bangladesh starts from Taka 8,000 - 11,000 Taka (Estimated). you can buy the original Aruba Aruba PoE injector at the best price from our website or visit our office.
