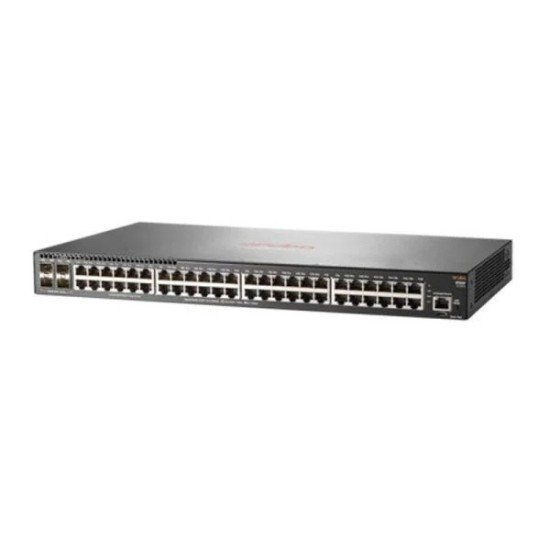

Aruba 2930F JL254A 48-Port Gigabit Managed Switch
The Aruba 2930F JL254A, officially identified as the
HPE Aruba Networking 2930F 48G 4SFP+ Switch, is a high-density
managed Ethernet switch designed for enterprise networks, campus deployments,
branch offices, and demanding wired access environments. It provides
48 autosensing 10/100/1000BASE-T RJ-45 ports along with
4 SFP+ 1/10GbE ports for fiber uplinks and high-speed network
connections.
With a 176 Gbps switching capacity and throughput of up to
112 Mpps, the JL254A is designed to provide wire-speed
connectivity for high-density enterprise access networks. Its four SFP+ ports
support both 1GbE and 10GbE connectivity, allowing the switch to connect to
aggregation switches, servers, storage systems, or other compatible network
infrastructure.
The JL254A is a non-PoE model. Unlike the Aruba 2930F PoE+
variants, it does not provide power over Ethernet to connected endpoints.
This makes it suitable for installations where connected devices use their own
power supplies or where PoE is not required.
Technical Specifications
| Specification |
Details |
| Brand |
HPE Aruba Networking |
| Series |
Aruba 2930F |
| Model |
JL254A |
| Product Name |
Aruba 2930F 48G 4SFP+ Switch |
| RJ-45 Ports |
48 × 10/100/1000BASE-T autosensing |
| SFP+ Ports |
4 × 1/10GbE SFP+ |
| PoE |
Not supported |
| Switching Capacity |
176 Gbps |
| Throughput |
Up to 112 Mpps |
| MAC Address Table |
32,768 entries |
| Packet Buffer |
12.38 MB |
| Processor |
Dual-Core ARM Cortex-A9 @ 1016 MHz |
| System Memory |
1 GB DDR3 SDRAM |
| Storage |
4 GB eMMC |
| Console |
Dual-personality RJ-45 or USB Micro-B serial console |
| Form Factor |
1U Rack-Mount |
| Dimensions |
44.25 × 24.63 × 4.39 cm |
| Weight |
Approx. 3.10 kg |
| Power Input |
100–127 / 200–240 VAC |
| Maximum Power Rating |
46.6 W |
48-Port Gigabit Ethernet Connectivity
The 48 RJ-45 ports provide autosensing 10/100/1000BASE-T connectivity for
desktops, servers, printers, access points using external power, IP devices,
and other Ethernet-enabled equipment. The ports automatically negotiate the
supported Ethernet speed, simplifying deployment across mixed-speed networks.
1/10G SFP+ Uplink Connectivity
Four dedicated 1/10GbE SFP+ ports provide flexible fiber
connectivity. These interfaces can be used for 1GbE or 10GbE uplinks,
depending on the installed compatible transceiver and network configuration.
They are particularly useful for connecting the switch to higher-capacity
aggregation, distribution, server, or data-center infrastructure.
High Switching Performance
The Aruba 2930F JL254A provides 176 Gbps switching capacity
and up to 112 Mpps throughput. This performance makes the
switch suitable for high-density enterprise access networks where multiple
Gigabit endpoints and high-speed uplinks operate simultaneously.
Managed Enterprise Networking
The 2930F platform supports enterprise network management through command-line
interface, Web browser management, SNMP, configuration menu, RMON, FTP, and
centralized management platforms. HPE Aruba documentation lists support for
Aruba Central, AirWave, and
HPE IMC management environments.
Layer 2 and Layer 3 Networking
The Aruba 2930F platform is designed for managed Layer 2 and Layer 3
networking. The JL254A supports VLAN-based segmentation and enterprise
switching functions, while its hardware routing resources support IPv4 and
IPv6 routing requirements. The published hardware specifications include
capacity for IPv4 and IPv6 routing entries as well as static and OSPF
routing resources.
Non-PoE Switch Design
The JL254A is a non-PoE switch. It should not be confused
with the Aruba 2930F JL256A, which is the 48G PoE+ 4SFP+ variant. The JL254A
is intended for standard Ethernet connectivity where connected devices do not
need to receive electrical power through the network cable.
Enterprise Applications
- Enterprise access-layer networking
- Corporate office networks
- Campus network deployments
- Branch office infrastructure
- Server and workstation connectivity
- High-speed 1G/10G fiber uplinks
- Network aggregation and distribution
- Network infrastructure upgrades and expansion
Physical Installation
The JL254A uses a compact 1U rack-mount form factor with
dimensions of approximately 44.25 × 24.63 × 4.39 cm and a weight of about
3.10 kg. Its compact chassis is suitable for standard network racks and
equipment cabinets.
Compatibility
The four SFP+ interfaces can be used with compatible Aruba/HPE-supported
1GbE and 10GbE transceivers and fiber connectivity solutions. Specific
transceiver, fiber type, distance, and interoperability requirements should
be checked against the applicable HPE Aruba compatibility documentation
before deployment.
Aruba 2930F JL254A Price in Bangladesh
For the latest Aruba 2930F JL254A price in Bangladesh,
contact Datacom Technologies (BD). Pricing and availability
may vary depending on sourcing, product condition, warranty, included
accessories, and stock status.
