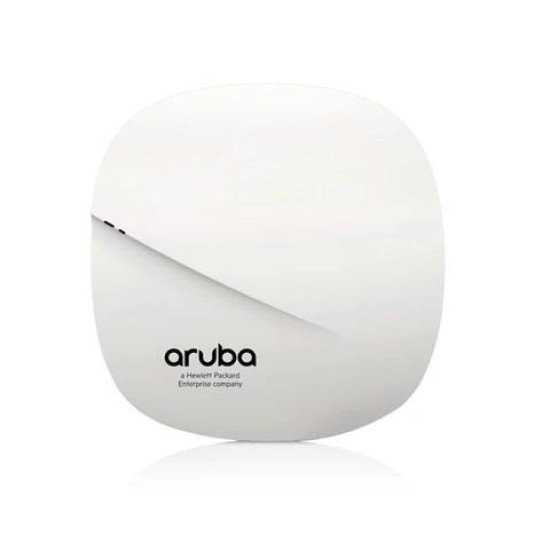

Aruba AP-303 (JZ320A) Indoor Wi-Fi 5 Access Point
The Aruba AP-303 (JZ320A) is an indoor Wi-Fi 5 (802.11ac Wave 2) access point with a 2x2:2 MIMO configuration, delivering speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. It features integrated omnidirectional antennas and a single Gigabit Ethernet port with 802.3af PoE support for flexible deployment. With a maximum power consumption of 9.7W, it provides efficient and reliable wireless connectivity for medium-density environments.
Here is the specification of Aruba AP303
| Feature |
Details |
| Model |
Aruba AP-303 (JZ320A) |
| Wi-Fi Standard |
802.11ac Wave 2 (Wi-Fi 5) |
| MIMO Configuration |
2x2:2 (Dual-radio, dual-band) |
| Maximum Data Rate |
Up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) |
| Frequency Bands |
2.4 GHz & 5 GHz |
| Antenna Type |
Integrated omnidirectional antennas (2.4 GHz: 3.3 dBi, 5 GHz: 5.8 dBi) |
| Ethernet Ports |
1x 10/100/1000BASE-T (RJ-45), Auto-sensing, PoE |
| PoE Support |
802.3af (PoE) |
| Power Consumption |
Maximum 9.7W |
| Mounting Options |
Ceiling or Wall Mount (Mounting Kit Sold Separately) |
| Security |
WPA2, WPA3, 802.1X, MAC Filtering, Rogue AP Detection |
| Management |
Aruba Central (Cloud), AirWave (On-premises), Local GUI, CLI |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Dimensions |
150mm x 150mm x 34mm (5.9" x 5.9" x 1.34") |
| Weight |
375g (0.83 lb) |
| Deployment Mode |
Controller-based (Aruba Mobility Controller) or Controller-less (Instant Mode) |
| MU-MIMO Support |
Yes |
| Beamforming |
Yes |
| Guest Access |
Supported with captive portal |
Product Description:
The
Aruba AP-303 JZ320A Indoor Wi-Fi 5 Access Point is a high-performance, cost-effective access point designed to deliver enterprise-grade wireless connectivity for small to medium-sized businesses, branch offices, and educational institutions. As part of Aruba’s 300 series, it offers strong wireless performance with the benefits of 802.11ac Wave 2 (Wi-Fi 5) technology, ensuring improved network efficiency and capacity.
- Performance and Connectivity: The AP-303 supports a dual-radio, dual-band setup, allowing simultaneous operation on both the 2.4 GHz and 5 GHz bands. It features 2x2:2 MU-MIMO (Multi-User, Multiple Input Multiple Output), which enhances efficiency by allowing multiple devices to communicate with the AP simultaneously, reducing congestion and improving user experience. The maximum data rate reaches 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, providing a combined throughput of over 1.1 Gbps.
- Enterprise-Grade Features: This access point comes equipped with integrated omnidirectional antennas, which provide strong and reliable signal coverage. Beamforming technology helps to direct wireless signals toward connected devices, optimizing performance and minimizing interference. Additionally, the band steering feature ensures that dual-band-capable clients are automatically moved to the less congested 5 GHz band, further improving efficiency.
- Power and Installation: The Aruba AP-303 is designed for flexible deployment and supports Power over Ethernet (PoE) 802.3af, allowing power and data to be delivered through a single cable, reducing the need for additional wiring. It has a single Gigabit Ethernet port for network connectivity. The device can be easily mounted on ceilings or walls, though mounting kits are sold separately.
- Security and Management: Security is a critical aspect of Aruba's design, and the AP-303 includes multiple features such as WPA2/WPA3 encryption, 802.1X authentication, MAC filtering, and rogue AP detection to protect the network. Additionally, it supports guest access with captive portals, making it ideal for businesses that need to provide temporary or restricted access. For management, the AP-303 supports multiple deployment modes, including both controller-based and controller-less Instant mode. It integrates seamlessly with Aruba Central (Cloud-based Management) and Aruba AirWave (On-Premises Management), providing IT administrators with a comprehensive dashboard for monitoring and configuration.
Ideal Use Cases
The Aruba AP-303 is well-suited for environments with moderate user density, such as:
- Offices and corporate branches
- Classrooms and educational institutions
- Retail stores and hospitality
- Healthcare clinics and hospitals
- Warehouses and small production facilities
- Conclusion
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Aruba AP-303 (JZ320A) Indoor Wi-Fi 5 Access Point in Bangladesh?
The estimated price of Aruba AP-303 (JZ320A) Indoor Wi-Fi 5 Access Point in Bangladesh is Tk 39,000. You can buy the Aruba AP-303 (JZ320A) Indoor Wi-Fi 5 AP at best price from our website or visit our Office.
