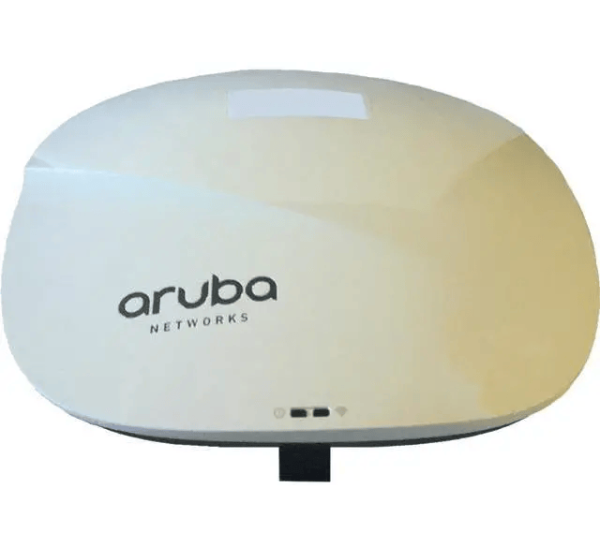

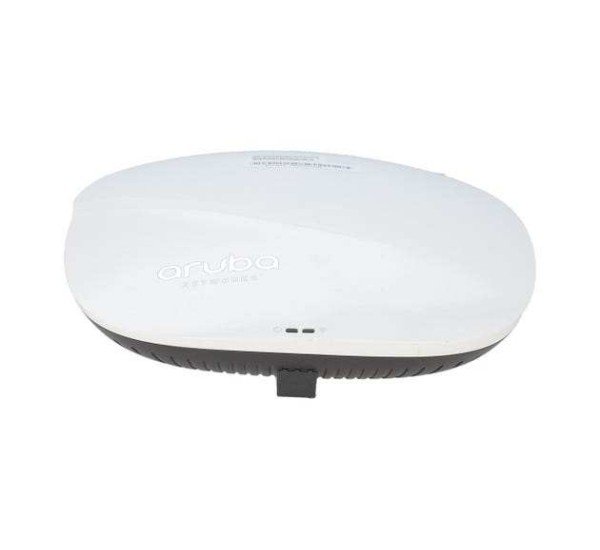

Aruba AP-325 Wi-Fi 5 Indoor Access Point

The HPE Aruba Networking AP-325 is an enterprise-grade indoor wireless access point from the Aruba 320 Series, designed for high-performance connectivity in offices, campuses, education, healthcare, retail, and other demanding indoor environments.

The AP-325 features 4x4 MIMO on both the 5 GHz and 2.4 GHz radios. The 5 GHz 802.11ac radio supports up to 1,733 Mbps, while the 2.4 GHz 802.11n radio supports up to 600 Mbps, providing a combined peak wireless data rate of approximately 2.33 Gbps.

Important: The AP-325 is a Wi-Fi 5 (802.11ac Wave 2) access point, not Wi-Fi 6. HPE identifies the Aruba 320 Series as Wi-Fi 5. The Wi-Fi 6 successor generation is represented by Aruba's 500 Series.

Aruba AP-325 Wi-Fi 5 Features

• Wi-Fi 5 (IEEE 802.11ac Wave 2) indoor access point
• 4x4 MIMO on 5 GHz with up to 1,733 Mbps data rate
• 4x4 MIMO on 2.4 GHz with up to 600 Mbps data rate
• Up to approximately 2.33 Gbps combined peak wireless capacity
• Eight integrated downtilt omnidirectional antennas
• VHT20/40/80/160 channel support
• Multi-User MIMO support
• Integrated Bluetooth Low Energy radio
• Optional IoT expansion radio support for Zigbee
• Gigabit Ethernet uplink
• USB 2.0 Type-A interface
• Aruba RF management and enterprise security capabilities

Aruba AP-325 Technical Specifications

Aruba AP-325 Dual 4x4 MIMO Performance

The AP-325 is designed with 4x4 MIMO radios on both frequency bands. Its 5 GHz 802.11ac radio can provide up to 1,733 Mbps, while the 2.4 GHz 802.11n radio can provide up to 600 Mbps with compatible clients.

The 5 GHz radio supports four spatial-stream SU-MIMO and MU-MIMO capabilities, allowing the AP to efficiently serve multiple compatible wireless clients in high-density environments.

Aruba AP-325 Integrated Antenna Design

The AP-325 uses eight integrated downtilt omnidirectional antennas for its dual 4x4 MIMO architecture. The antennas are optimized for horizontal ceiling-mounted installation and provide a clean integrated solution for enterprise indoor deployments.

Antenna Characteristics

• Eight integrated omnidirectional antennas
• Downtilt design optimized for ceiling mounting
• Up to 3.5 dBi gain at 2.4 GHz
• Up to 5.0 dBi gain at 5 GHz
• Designed for 4x4 MIMO operation

Aruba AP-325 IoT and Bluetooth Connectivity

The AP-325 includes an integrated Bluetooth Low Energy radio for supported location services, asset tracking, beacons, and mobile engagement applications. An optional IoT expansion radio can provide Zigbee connectivity for supported deployments.

Aruba AP-325 Applications

• Enterprise office networks
• Corporate campus environments
• Educational institutions
• Healthcare facilities
• Retail environments
• Training and conference facilities
• Branch offices
• High-density indoor wireless deployments
• Bluetooth-enabled location and asset tracking

Aruba AP-325 Compatibility

The AP-325 is part of the HPE Aruba Networking 320 Series and can be deployed in supported Aruba controller-managed environments. The corresponding IAP-325 model provides Aruba Instant controllerless functionality.

The AP-325 supports IEEE 802.11a/b/g/n/ac wireless standards and can serve Wi-Fi 5 and legacy Wi-Fi clients. The access point uses a Gigabit Ethernet uplink and compatible PoE power.

Aruba AP-325 Price in Bangladesh

The Aruba AP-325 price in Bangladesh may vary depending on SKU, condition, warranty, configuration, licensing, and supply conditions. Contact Datacom Technologies (BD) for current pricing and purchasing information.

Email: sales@datacom.com.bd

Why Choose Aruba AP-325?

• Enterprise-grade Aruba Wi-Fi 5 Wave 2 technology
• 4x4 MIMO on both 5 GHz and 2.4 GHz radios
• Up to 1,733 Mbps on 5 GHz
• Up to 600 Mbps on 2.4 GHz
• Approximately 2.33 Gbps combined peak wireless capacity
• Eight integrated antennas for optimized indoor coverage
• MU-MIMO support for improved multi-client performance
• Integrated Bluetooth Low Energy connectivity
• Optional Zigbee IoT expansion capability
• Suitable for high-performance enterprise indoor deployments

Buy Aruba AP-325 Indoor Access Point in Bangladesh from Datacom Technologies (BD). Contact us for current pricing, warranty, configuration, licensing, and deployment assistance.
