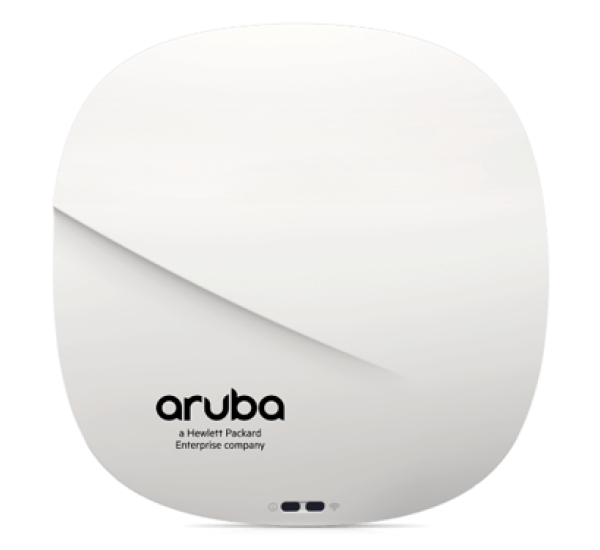

Aruba AP-335 Wi-Fi 5 Indoor Access Point
The HPE Aruba Networking AP-335 is a high-performance enterprise indoor access point from the Aruba 330 Series, designed for demanding wireless environments such as offices, education facilities, hotels, healthcare organizations, and high-density campus deployments.
The AP-335 features 4x4 MIMO radios on both the 5 GHz and 2.4 GHz bands. Its 5 GHz 802.11ac radio supports data rates up to 1,733 Mbps, while the 2.4 GHz 802.11n radio supports up to 600 Mbps, providing a combined peak wireless capacity of approximately 2.33 Gbps.
Important: The AP-335 is a Wi-Fi 5 (IEEE 802.11ac Wave 2) access point, not Wi-Fi 6. HPE identifies the Aruba 330 Series as Wi-Fi 5. Aruba's Wi-Fi 6 successor families include the 500 and 530 Series.
Aruba AP-335 Wi-Fi 5 Features
- Wi-Fi 5 (IEEE 802.11ac Wave 2) enterprise indoor access point
- 4x4 MIMO on 5 GHz with up to 1,733 Mbps data rate
- 4x4 MIMO on 2.4 GHz with up to 600 Mbps data rate
- Up to approximately 2.33 Gbps combined peak data rate
- 12 integrated dual-band downtilt omnidirectional antennas
- Dual-polarized integrated antenna design
- VHT20/40/80 channel support on 5 GHz
- VHT160 support on compatible configurations
- MU-MIMO support on 5 GHz
- Integrated Bluetooth Low Energy radio
- Optional IoT expansion radio support for Zigbee
- Two Gigabit Ethernet interfaces
- USB 2.0 Type-A interface
- 802.3af and 802.3at PoE support
Aruba AP-335 Technical Specifications
| Specification |
Details |
| Brand |
HPE Aruba Networking |
| Model |
AP-335 |
| Series |
Aruba 330 Series |
| Deployment |
Indoor |
| Wi-Fi Generation |
Wi-Fi 5 (IEEE 802.11ac Wave 2) |
| 5 GHz Radio |
4x4 MIMO, up to 1,733 Mbps |
| 2.4 GHz Radio |
4x4 MIMO, up to 600 Mbps |
| Combined Peak Data Rate |
Approximately 2.33 Gbps |
| 5 GHz Channel Width |
20/40/80 MHz, with VHT160 support |
| 2.4 GHz Channel Width |
20/40 MHz |
| Wi-Fi Antennas |
12 x integrated dual-band downtilt omnidirectional antennas |
| Antenna Design |
Integrated dual-polarized antennas |
| Ethernet |
2 x 10/100/1000BASE-T RJ-45 |
| Link Aggregation |
Supported |
| IoT Connectivity |
Integrated Bluetooth Low Energy; optional Zigbee expansion capability |
| USB |
USB 2.0 Type-A |
| MU-MIMO |
Supported on 5 GHz |
| Wireless Technologies |
MU-MIMO, beamforming, MRC, STBC, LDPC, DFS |
| Power |
802.3af/802.3at PoE or 12V DC |
| Operating Temperature |
0°C to +50°C |
| Operating Humidity |
5% to 93% non-condensing |
| Regulatory Model |
APIN0335 |
Aruba AP-335 Dual 4x4 MIMO Performance
The AP-335 provides 4x4 MIMO on both wireless bands. The 5 GHz 802.11ac radio supports up to 1,733 Mbps for compatible four-stream VHT80 clients, while the 2.4 GHz radio supports up to 600 Mbps with compatible four-stream HT40 clients.
HPE specifies support for four spatial-stream SU-MIMO and up to three spatial-stream MU-MIMO operation on compatible 5 GHz clients. MU-MIMO helps improve overall wireless efficiency in environments with multiple capable client devices.
Aruba AP-335 Integrated Antenna Design
The AP-335 uses 12 integrated dual-band downtilt omnidirectional antennas with dual-polarization. The integrated antenna architecture is optimized for horizontal ceiling-mounted installation and provides a clean deployment solution without requiring separate external Wi-Fi antennas.
Integrated Antenna Benefits
- 12 integrated dual-band antennas
- Downtilt omnidirectional radiation pattern
- Dual-polarized antenna architecture
- Optimized for horizontal ceiling-mounted installation
- Suitable for enterprise indoor coverage
Aruba AP-335 IoT and Bluetooth Connectivity
The AP-335 includes an integrated Bluetooth Low Energy radio for supported location services, asset tracking, beacons, and mobile engagement applications. An optional IoT expansion radio can provide Zigbee connectivity for supported deployments.
Aruba AP-335 Wired Connectivity
The AP-335 provides two Gigabit Ethernet RJ-45 interfaces. Link aggregation can be used to increase platform throughput where supported by the network infrastructure. The access point can receive power through compatible PoE sources or a DC power connection.
Aruba AP-335 Applications
- High-density enterprise offices
- Corporate campus networks
- Educational institutions
- Hotels and hospitality environments
- Healthcare facilities
- Conference and training facilities
- Retail environments
- Branch offices
- High-performance indoor wireless deployments
- Bluetooth-enabled location and asset tracking
Aruba AP-335 Compatibility
The AP-335 is part of the HPE Aruba Networking 330 Series and is designed for supported Aruba controller-managed deployments. The corresponding IAP-335 model provides Aruba Instant controllerless functionality.
HPE's current AOS-10 platform documentation lists AP-335 among supported 330 Series platforms, with software-version limitations applying to the platform.
The AP-335 supports IEEE 802.11a/b/g/n/ac wireless standards and can serve Wi-Fi 5 and legacy Wi-Fi clients. Network infrastructure should provide compatible Gigabit Ethernet and PoE connectivity.
Aruba AP-335 Price in Bangladesh
The Aruba AP-335 price in Bangladesh may vary depending on SKU, condition, warranty, configuration, licensing, and supply conditions. Contact Datacom Technologies (BD) for current pricing and purchasing information.
Email: sales@datacom.com.bd
Why Choose Aruba AP-335?
- High-performance enterprise Wi-Fi 5 Wave 2 technology
- 4x4 MIMO on both 5 GHz and 2.4 GHz radios
- Up to 1,733 Mbps on the 5 GHz radio
- Up to 600 Mbps on the 2.4 GHz radio
- Approximately 2.33 Gbps combined peak wireless capacity
- 12 integrated dual-band antennas for indoor coverage
- MU-MIMO support for improved multi-client performance
- Two Gigabit Ethernet interfaces with link aggregation support
- Integrated Bluetooth Low Energy support
- Optional Zigbee IoT expansion capability
Buy Aruba AP-335 Indoor Access Point in Bangladesh from Datacom Technologies (BD). Contact us for current pricing, warranty, configuration, licensing, and deployment assistance.
