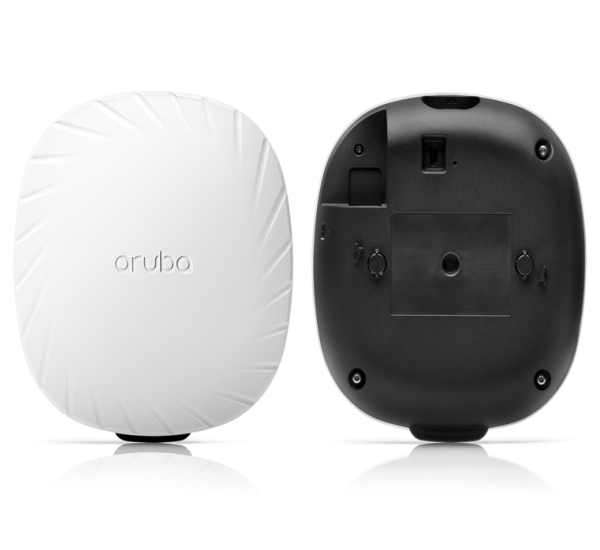

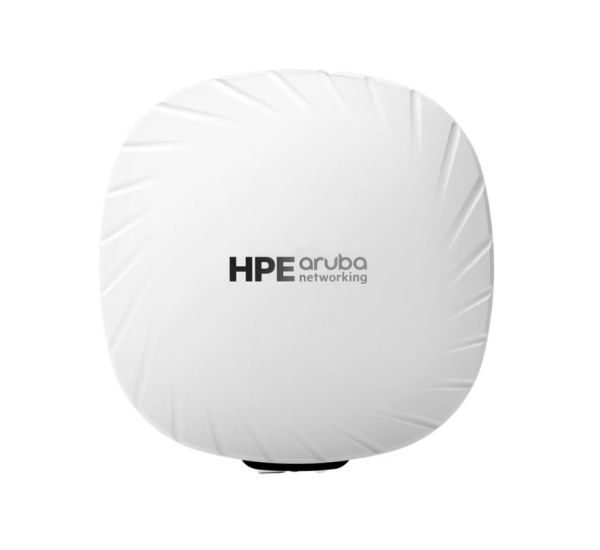

Aruba AP-503 Wi-Fi 6 Indoor Access Point
The HPE Aruba Networking AP-503 is an enterprise Wi-Fi 6 indoor access point designed to provide reliable wireless connectivity for modern business, education, retail, and branch environments. It features a high-performance 4x4 MIMO 5 GHz radio combined with a 2x2 MIMO 2.4 GHz radio for efficient dual-band wireless connectivity.
The AP-503 supports the IEEE 802.11ax Wi-Fi 6 standard and incorporates technologies such as OFDMA, MU-MIMO, beamforming, and Target Wake Time (TWT). Integrated Bluetooth 5 and IEEE 802.15.4/Zigbee capabilities provide an additional platform for IoT, asset tracking, and location-aware applications.
Aruba AP-503 Wi-Fi 6 Features
- Wi-Fi 6 (IEEE 802.11ax) enterprise indoor access point
- 4x4 MIMO radio on the 5 GHz band
- 2x2 MIMO radio on the 2.4 GHz band
- Dual-band concurrent wireless operation
- OFDMA for efficient multi-client connectivity
- MU-MIMO for improved wireless capacity
- Target Wake Time for supported Wi-Fi 6 devices
- Integrated Bluetooth 5 Low Energy support
- IEEE 802.15.4/Zigbee IoT connectivity
- Integrated internal antennas for indoor deployment
- Gigabit Ethernet network connectivity
- USB 2.0 Type-A interface
- WPA3 and Enhanced Open security support
Aruba AP-503 Technical Specifications
| Specification |
Details |
| Brand |
HPE Aruba Networking |
| Model |
AP-503 |
| Series |
Aruba 500 Series |
| Deployment |
Indoor |
| Wi-Fi Standard |
Wi-Fi 6 (IEEE 802.11ax) |
| 5 GHz Radio |
4x4 MIMO |
| 2.4 GHz Radio |
2x2 MIMO |
| Frequency Bands |
2.4 GHz and 5 GHz |
| Channel Bandwidth |
Up to 20/40 MHz on 2.4 GHz and up to 20/40/80 MHz on 5 GHz |
| Antenna |
Integrated internal dual-band antennas |
| Ethernet |
Gigabit Ethernet RJ-45 |
| IoT Radio |
Bluetooth 5 BLE and IEEE 802.15.4/Zigbee |
| USB |
USB 2.0 Type-A |
| Wireless Technologies |
OFDMA, MU-MIMO, TWT, beamforming |
| Security |
WPA2, WPA3-Enterprise, WPA3-Personal and Enhanced Open (OWE) |
| Power |
PoE and DC power options, subject to configuration |
| Management |
ArubaOS, Aruba Instant and supported Aruba Central deployments |
Aruba AP-503 4x4 5 GHz Performance
The AP-503 is designed around a 4x4 MIMO 5 GHz radio, providing additional spatial streams for supported Wi-Fi 6 clients and helping improve wireless performance in environments with multiple connected devices. The 2.4 GHz radio uses 2x2 MIMO and provides connectivity for legacy clients, IoT devices, and devices operating in the 2.4 GHz band.
Wi-Fi 6 features including OFDMA and MU-MIMO help improve spectrum utilization and wireless efficiency when multiple clients are simultaneously accessing the network.
Aruba AP-503 IoT and Bluetooth Connectivity
The AP-503 incorporates Bluetooth 5 Low Energy and IEEE 802.15.4/Zigbee capabilities, making it suitable for enterprise IoT deployments. These capabilities can support applications such as asset tracking, location services, sensors, beacons, and other connected-device solutions.
IoT Deployment Benefits
- Bluetooth 5 connectivity for supported BLE devices
- Zigbee / IEEE 802.15.4 support for compatible IoT devices
- Suitable for asset tracking and location-aware applications
- Helps reduce the need for separate IoT radio infrastructure
Aruba AP-503 Indoor Deployment
The AP-503 is designed for indoor enterprise environments. Its integrated antenna design simplifies installation in offices, classrooms, retail spaces, branch locations, and other standard indoor wireless deployments.
Aruba AP-503 Applications
- Enterprise office wireless networks
- Schools and educational institutions
- Retail environments
- Branch offices
- Corporate guest Wi-Fi
- Medium-density indoor deployments
- IoT-enabled business environments
- Asset tracking and location applications
Aruba AP-503 Compatibility
The AP-503 is part of the HPE Aruba Networking 500 Series and is designed for deployment within supported Aruba network architectures. Depending on the software version and licensing, it can be managed through ArubaOS, Aruba Instant, or Aruba Central.
The access point supports modern Wi-Fi 6 clients while maintaining interoperability with supported legacy IEEE 802.11 wireless devices. Network infrastructure should provide compatible PoE and Ethernet connectivity for the intended deployment.
Aruba AP-503 Price in Bangladesh
The Aruba AP-503 price in Bangladesh may vary depending on SKU, licensing, warranty, configuration, and supply conditions. Contact Datacom Technologies (BD) for the latest price and purchasing information.
Email: sales@datacom.com.bd
Why Choose Aruba AP-503?
- Enterprise-grade Wi-Fi 6 wireless technology
- 4x4 MIMO on 5 GHz for high-performance client connectivity
- 2x2 MIMO on 2.4 GHz for broad device compatibility
- Integrated Bluetooth 5 and Zigbee capabilities
- OFDMA and MU-MIMO for improved multi-client efficiency
- Integrated antennas simplify indoor installation
- USB connectivity for supported peripherals
- Enterprise-grade WPA3 security support
- Suitable for Wi-Fi and IoT converged deployments
Buy Aruba AP-503 Wi-Fi 6 Indoor Access Point in Bangladesh from Datacom Technologies (BD). Contact us for current pricing, licensing, warranty, configuration, and deployment assistance.
