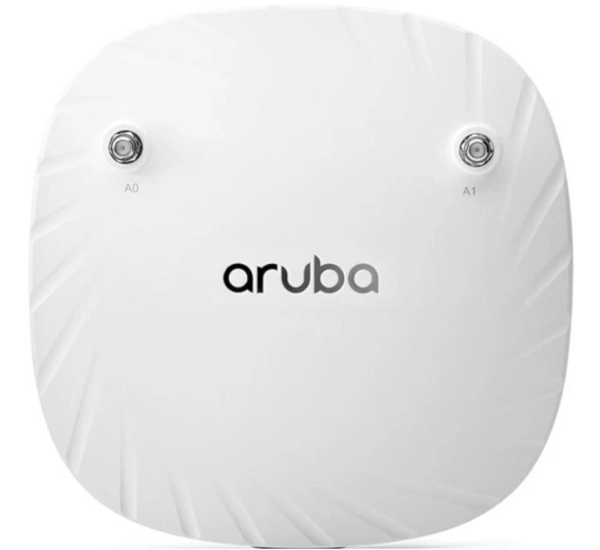

Aruba AP-504 Wi-Fi 6 Indoor Access Point

The HPE Aruba Networking AP-504 is a cost-effective enterprise Wi-Fi 6 indoor access point designed for medium-density environments such as offices, schools, retail spaces, and branch locations. It provides concurrent 2.4 GHz and 5 GHz wireless connectivity using dual 2x2 MIMO radios.

The AP-504 delivers up to 1.49 Gbps maximum combined peak data rate with compatible Wi-Fi 6 clients. As the external-antenna model in the Aruba 500 Series, it provides two female RP-SMA connectors, allowing compatible external dual-band antennas to be selected according to the deployment's RF coverage requirements.

Aruba AP-504 Wi-Fi 6 Features

• Wi-Fi 6 (IEEE 802.11ax) enterprise indoor access point
• Dual 2x2 MIMO radios for simultaneous 2.4 GHz and 5 GHz operation
• Up to 1.49 Gbps maximum combined peak data rate
• 5 GHz peak data rate up to 1.2 Gbps
• 2.4 GHz peak data rate up to 574 Mbps
• Two female RP-SMA connectors for external dual-band antennas
• OFDMA for efficient multi-user wireless communication
• MU-MIMO support for improved client performance
• Target Wake Time (TWT) for improved IoT efficiency
• Integrated Bluetooth 5 and Zigbee / IEEE 802.15.4 radio
• 1GbE Ethernet connectivity
• USB 2.0 Type-A interface
• WPA3 and Enhanced Open security support

Aruba AP-504 Technical Specifications

Aruba AP-504 External Antenna Design

The AP-504 is the external-antenna variant of the Aruba 500 Series. It provides two female RP-SMA connectors corresponding to the two radio chains. Compatible external dual-band antennas can be selected based on the required RF coverage, mounting arrangement, and deployment environment.

Benefits of External Antennas

• Flexible antenna selection for indoor wireless deployments
• Greater control over RF coverage and antenna placement
• Suitable for specialized coverage requirements
• Supports compatible external Aruba dual-band antennas

Aruba AP-504 Wireless Performance

The AP-504 provides two spatial streams on both the 2.4 GHz and 5 GHz radios. With compatible 802.11ax clients, the 5 GHz radio supports up to 1.2 Gbps, while the 2.4 GHz radio supports up to 574 Mbps. HPE specifies a maximum combined peak data rate of 1.49 Gbps.

OFDMA, MU-MIMO, Target Wake Time, and other Wi-Fi 6 capabilities improve spectrum efficiency and help the access point handle multiple connected clients more effectively.

Aruba AP-504 IoT Connectivity

The AP-504 includes an integrated Bluetooth Low Energy 5.0 and IEEE 802.15.4/Zigbee radio. This enables supported location, asset tracking, IoT sensor, and other Bluetooth or Zigbee applications without requiring a separate overlay IoT infrastructure.

Aruba AP-504 Applications

• Medium-density enterprise offices
• Schools and educational institutions
• Retail stores and commercial spaces
• Branch offices
• Training and meeting facilities
• Guest wireless networks
• IoT-enabled business environments
• Indoor deployments requiring external antenna flexibility

Aruba AP-504 Compatibility

The AP-504 is part of the HPE Aruba Networking 500 Series and supports ArubaOS and Aruba Instant environments with supported software versions. It can also be managed through Aruba Central where supported and appropriately licensed.

The access point supports Wi-Fi 6 clients while maintaining compatibility with legacy 802.11a/b/g/n/ac wireless standards. External antennas must be selected separately and should be compatible with the AP-504's RP-SMA interfaces and intended RF design.

Aruba AP-504 Price in Bangladesh

The Aruba AP-504 price in Bangladesh may vary depending on regional SKU, antenna selection, licensing, warranty, and supply conditions. Contact Datacom Technologies (BD) for current pricing and configuration assistance.

Email: sales@datacom.com.bd

Why Choose Aruba AP-504?

• Cost-effective enterprise Wi-Fi 6 connectivity
• Dual 2x2 MIMO for simultaneous 2.4 GHz and 5 GHz operation
• Up to 1.49 Gbps maximum combined peak data rate
• External RP-SMA antenna connectivity for flexible RF design
• OFDMA and MU-MIMO for improved multi-client efficiency
• Integrated Bluetooth 5 and Zigbee support for IoT applications
• 1GbE wired network interface
• WPA3 and Enhanced Open security capabilities
• Aruba Central management support

Buy Aruba AP-504 Wi-Fi 6 Indoor Access Point in Bangladesh from Datacom Technologies (BD). Contact us for current pricing, compatible antenna options, licensing, warranty, and deployment assistance.
