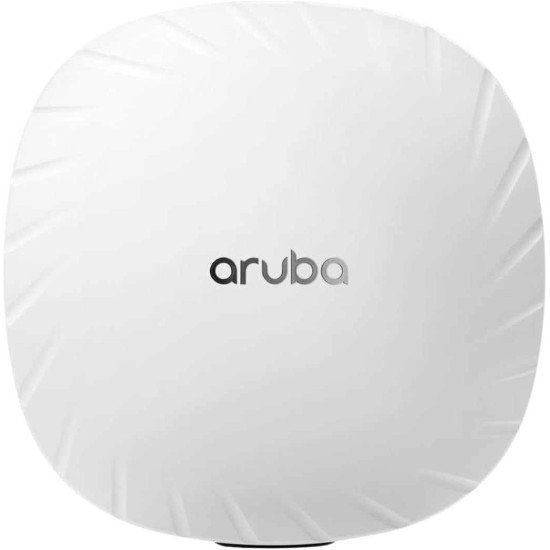

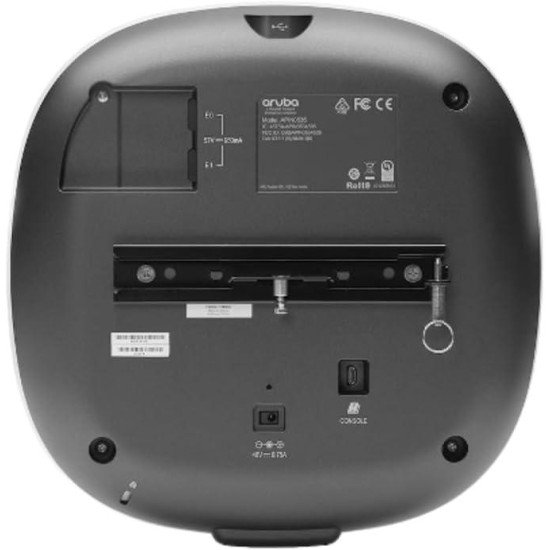

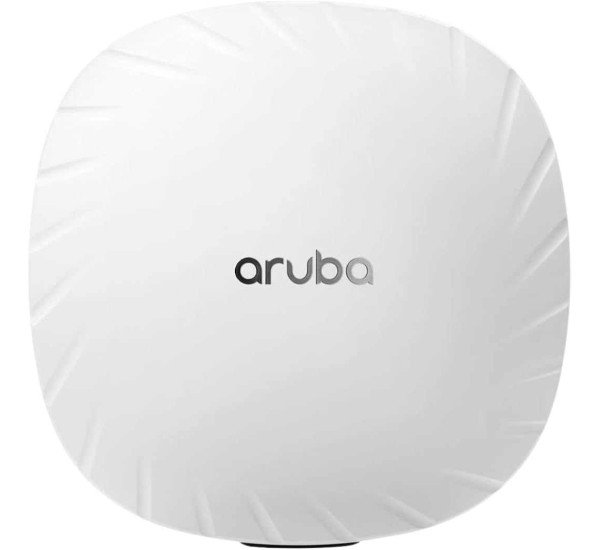

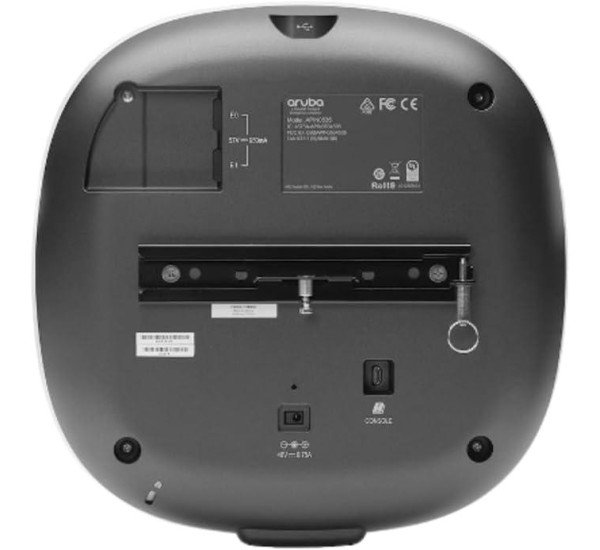

Aruba AP-535 Wi-Fi 6 Indoor Access Point
The HPE Aruba Networking AP-535 is a high-performance Wi-Fi 6 indoor access point designed for enterprise and high-density wireless environments. It features dual 4x4 MIMO radios supporting concurrent 2.4 GHz and 5 GHz connectivity, delivering up to 2.97 Gbps combined aggregate data rate.
Built on IEEE 802.11ax, the Aruba AP-535 uses technologies including OFDMA, MU-MIMO, and Target Wake Time (TWT) to improve wireless efficiency and multi-client performance. Its integrated antennas and dual 5GbE Ethernet ports make it suitable for demanding enterprise deployments.
Aruba AP-535 Wi-Fi 6 Features
- Wi-Fi 6 (IEEE 802.11ax) enterprise wireless access point
- Dual 4x4 MIMO radios for simultaneous 2.4 GHz and 5 GHz operation
- Up to 2.97 Gbps combined aggregate wireless data rate
- 5 GHz peak data rate up to 2.4 Gbps
- 2.4 GHz peak data rate up to 1.147 Gbps
- OFDMA and MU-MIMO for efficient multi-client connectivity
- Integrated internal antennas
- Two 5GbE Ethernet ports supporting 100 Mbps, 1, 2.5, and 5 Gbps
- Bluetooth 5 and Zigbee support for IoT and location applications
- IEEE 802.3at Class 4 or 802.3bt Class 5 PoE support
Aruba AP-535 Technical Specifications
| Specification |
Details |
| Brand |
HPE Aruba Networking |
| Model |
AP-535 |
| Series |
Aruba 530 Series |
| Deployment |
Indoor |
| Wi-Fi Standard |
Wi-Fi 6 (IEEE 802.11ax) |
| Wi-Fi Radios |
Dual 4x4 MIMO |
| Frequency Bands |
2.4 GHz and 5 GHz |
| 5 GHz Data Rate |
Up to 2.4 Gbps |
| 2.4 GHz Data Rate |
Up to 1.147 Gbps |
| Combined Aggregate Rate |
Up to 2.97 Gbps |
| Ethernet Ports |
2 x 5GbE RJ-45 |
| Ethernet Speeds |
100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps |
| Antennas |
Integrated internal antennas |
| Wireless Technologies |
OFDMA, MU-MIMO, TWT |
| IoT Connectivity |
Bluetooth 5 and Zigbee / IEEE 802.15.4 |
| USB |
USB 2.0 Type-A |
| Power |
IEEE 802.3at Class 4 / 802.3bt Class 5 PoE or DC power |
| Management |
Aruba Central, ArubaOS / Aruba InstantOS depending deployment |
| Warranty |
Limited lifetime warranty |
Aruba AP-535 Applications
- Enterprise offices and corporate networks
- High-density office environments
- Training and meeting facilities
- Hospitals and healthcare facilities
- Education and institutional networks
- Branch offices and distributed organizations
- IoT-enabled enterprise environments
Aruba AP-535 Compatibility
The AP-535 is part of the HPE Aruba Networking 530 Series and can be deployed in controller-based ArubaOS environments or controllerless Aruba Instant environments, subject to supported software and licensing requirements. It supports modern Wi-Fi 6 clients while maintaining compatibility with legacy 802.11a/b/g/n/ac wireless standards.
Aruba AP-535 Price in Bangladesh
The Aruba AP-535 price in Bangladesh can vary depending on configuration, SKU, warranty, licensing, and supply conditions. For the latest price and purchasing information, contact Datacom Technologies (BD).
Email: sales@datacom.com.bd
Why Choose Aruba AP-535?
- Enterprise-grade Wi-Fi 6 performance
- Dual 4x4 MIMO for high-performance wireless connectivity
- Up to 2.97 Gbps aggregate wireless capacity
- Dual 5GbE ports for high-speed wired uplinks
- Integrated Bluetooth and Zigbee support for IoT deployments
- Advanced Wi-Fi 6 technologies for dense client environments
- Suitable for centralized Aruba network management
Buy Aruba AP-535 Wi-Fi 6 Indoor Access Point in Bangladesh from Datacom Technologies (BD). Contact us for current pricing, configuration, licensing, and deployment assistance.
