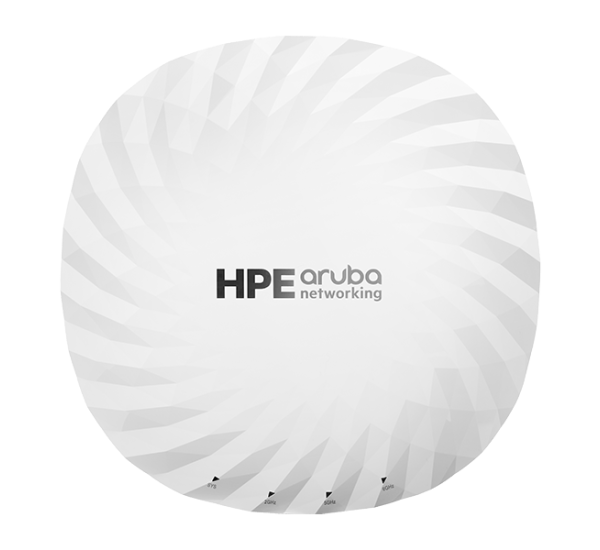

Aruba AP-750 Wi-Fi 7 Indoor Access Point
The HPE Aruba Networking 750 Series is a high-performance enterprise Wi-Fi 7 access point platform designed for demanding, high-density wireless environments. Built around the IEEE 802.11be (Wi-Fi 7) standard, the AP-750 Series provides tri-band wireless connectivity across the 2.4GHz, 5GHz, and 6GHz frequency bands.
The Aruba AP-750 Series features three dedicated 4x4 MIMO radios and supports up to 18.7Gbps aggregate tri-band data rates. Dual 10GbE SmartRate Ethernet ports provide high-speed wired connectivity and support flexible network deployment options.
Aruba AP-750 Technical Specifications
| Specification |
Details |
| Brand |
HPE Aruba Networking |
| Product Series |
Aruba 750 Series |
| Models |
AP-754 / AP-755 |
| Wireless Standard |
IEEE 802.11be (Wi-Fi 7) |
| Radio Configuration |
Tri-radio, 4x4 MIMO |
| Frequency Bands |
2.4GHz, 5GHz, 6GHz |
| Maximum Aggregate Data Rate |
Up to 18.7Gbps |
| Maximum Channel Width |
Up to 320MHz |
| Ethernet Ports |
2 × 10GbE SmartRate RJ-45 |
| Ethernet Speeds |
100Mbps / 1 / 2.5 / 5 / 10Gbps |
| IoT Connectivity |
Bluetooth 5.4 and IEEE 802.15.4 |
| Location Technology |
GNSS receiver and barometric sensor |
| Power |
IEEE 802.3at / 802.3bt PoE and 12V DC |
| Operating Temperature |
0°C to +50°C |
Wi-Fi 7 Tri-Band Performance
The Aruba AP-750 Series delivers next-generation wireless performance using three dedicated 4x4 MIMO radios across the 2.4GHz, 5GHz, and 6GHz bands. Wi-Fi 7 capabilities provide increased wireless capacity and improved performance for high-density enterprise deployments.
320MHz Channel Support
Wi-Fi 7 supports channel widths of up to 320MHz, allowing compatible client devices to utilize wider wireless channels for higher throughput and greater network capacity.
Dual 10GbE SmartRate Ports
The access point includes two 10GbE SmartRate RJ-45 ports. Each port supports multiple Ethernet speeds, including 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps, providing flexibility for high-performance wired network deployments.
Integrated IoT Connectivity
The Aruba AP-750 Series incorporates Bluetooth 5.4 and IEEE 802.15.4 radios for IoT and location-aware applications. These capabilities allow the access point to support enterprise IoT deployments without requiring separate wireless infrastructure for every use case.

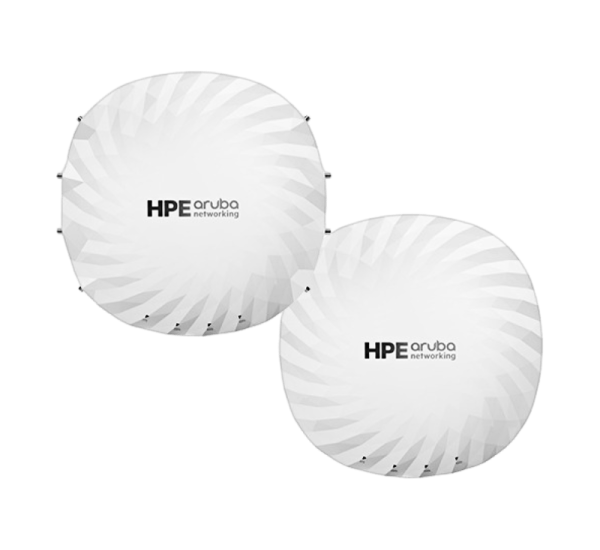

AP-754 and AP-755 Options
Aruba AP-754
The AP-754 is the external-antenna version of the 750 Series. It provides antenna flexibility for deployments requiring specific coverage patterns or specialized antenna configurations.
Aruba AP-755
The AP-755 uses integrated antennas and is designed for conventional indoor ceiling-mounted enterprise wireless deployments.
Indoor and Campus Deployment
The Aruba 750 Series is primarily designed for high-performance indoor campus and enterprise environments. Its Wi-Fi 7 tri-radio architecture makes it suitable for locations with high client density and demanding bandwidth requirements.
Although the product title may refer to indoor/outdoor use, the AP-750 Series should not be considered a rugged outdoor access point. Deployment should follow Aruba's environmental and installation specifications.
Network Applications
- Enterprise Wi-Fi 7 deployments
- High-density corporate offices
- University and education campuses
- Healthcare facilities
- Large retail environments
- Smart building networks
- IoT-enabled enterprise networks
- High-performance wireless LAN infrastructure
- Wi-Fi 7 network upgrades
Management and Compatibility
The Aruba 750 Series is designed for integration with HPE Aruba Networking Central and Aruba enterprise networking infrastructure. Compatibility should be verified according to the selected AP model, Aruba software version, licensing, regulatory domain, and intended deployment architecture.
Aruba AP-750 Price in Bangladesh
Looking for the Aruba AP-750 Wi-Fi 7 access point price in Bangladesh? Datacom Technologies (BD) provides HPE Aruba Networking solutions for enterprise Wi-Fi, campus networks, high-density wireless environments, smart buildings, and large-scale infrastructure projects.
Pricing and availability may vary depending on the exact model, antenna configuration, quantity, warranty, licensing, and project requirements. Contact Datacom Technologies (BD) for current pricing and project-based requirements.
Why Choose Aruba AP-750 Series?
- Next-generation Wi-Fi 7 (802.11be) technology
- Tri-radio 4x4 MIMO architecture
- 2.4GHz, 5GHz, and 6GHz operation
- Up to 18.7Gbps aggregate tri-band data rate
- Dual 10GbE SmartRate Ethernet ports
- Integrated Bluetooth 5.4 and IEEE 802.15.4 connectivity
- GNSS and barometric sensing capabilities
- Designed for high-density enterprise and campus networks
