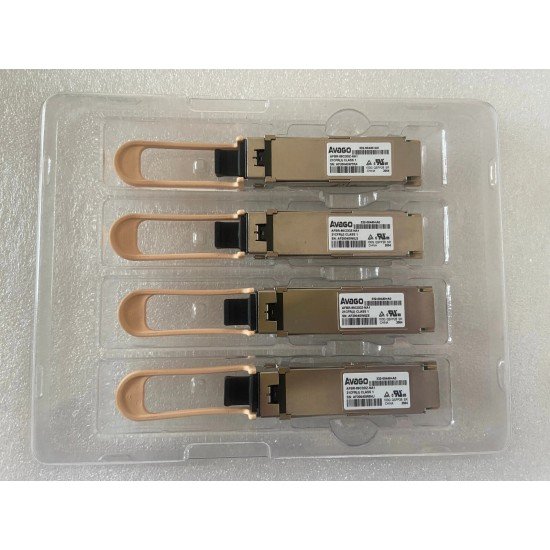

Avago AFBR-89CDDZ-NA1 QSFP28 100GBASE-SR4 332-00440+A0 850nm Transceiver Module

About Avago AFBR-89CDDZ-NA1 QSFP28 100GBASE-SR4 332-00440+A0 850nm Transceiver Module in Bangladesh

The Avago AFBR-89CDDZ-NA1 is a high-speed 100Gbps QSFP28 optical transceiver designed for 100GBASE-SR4 short-reach Ethernet applications. The module uses 850nm VCSEL-based optical technology and four parallel optical lanes to provide high-bandwidth connectivity over multimode fiber.

The AFBR-89CDDZ-NA1 is designed for high-density data center networking, switch-to-switch connectivity, rack-to-rack links, network aggregation, and other short-distance 100G Ethernet applications. It can support transmission distances of up to 100 meters over OM4 multimode fiber and up to 70 meters over OM3 multimode fiber, subject to the complete optical link budget and cabling conditions.

Featuring the compact QSFP28 form factor, this optical module provides a high-density and hot-pluggable interface for compatible 100G switches, routers, network adapters, and other supported networking equipment. The module uses a parallel multimode fiber interface and is designed around the 100GBASE-SR4 architecture.

The Avago AFBR-89CDDZ-NA1 is also identified by the assembly or ordering reference 332-00440+A0. Before deployment, the exact host equipment compatibility, transceiver coding, optical connector, fiber type, and supported 100G optics list should be verified.

Avago AFBR-89CDDZ-NA1 QSFP28 100GBASE-SR4 Specifications & Features

Overview

The Avago AFBR-89CDDZ-NA1 QSFP28 100GBASE-SR4 Transceiver Module is designed to deliver high-speed 100Gbps optical connectivity across short-distance multimode fiber links. Its 850nm VCSEL technology and parallel optical architecture make it suitable for high-density data center environments.

The module uses four parallel optical lanes to provide the aggregate 100Gbps connection. This architecture is optimized for short-reach links between switches, routers, servers, network adapters, and other compatible 100G equipment located within the same data center or nearby network infrastructure.

For multimode fiber installations, the supported reach depends on the fiber grade and complete optical channel. OM4 fiber can support up to 100 meters, while OM3 fiber can support up to 70 meters under the specified conditions.

Buy Avago AFBR-89CDDZ-NA1 100G QSFP28 Transceiver in Bangladesh

Purchase the Avago AFBR-89CDDZ-NA1 QSFP28 100GBASE-SR4 Optical Transceiver from Datacom Technologies (BD). We supply Avago/Broadcom optical transceivers, QSFP28 modules, SFP/SFP28 optics, fiber-optic networking products, enterprise switches, data center equipment, and high-speed optical connectivity solutions with competitive pricing, technical consultation, deployment assistance, and nationwide delivery throughout Bangladesh.

Key Features

• 100Gbps high-speed optical connectivity
• 100GBASE-SR4 short-reach optical technology
• QSFP28 compact pluggable form factor
• 850nm VCSEL-based optical transmission
• Four parallel optical lanes
• Multimode fiber support
• Up to 100m transmission over OM4 fiber
• Up to 70m transmission over OM3 fiber
• MPO/MTP parallel optical connector
• Digital diagnostic monitoring support
• Hot-pluggable module design
• Suitable for high-density data center networks
• Part number AFBR-89CDDZ-NA1
• Assembly reference 332-00440+A0

Applications

• 100G Data Center Networking
• Switch-to-Switch Connectivity
• Rack-to-Rack Fiber Links
• Data Center Interconnect
• Enterprise Core Networks
• High-Speed Network Aggregation
• 100G Ethernet Backbone Links
• Server-to-Switch Connectivity
• High-Density Multimode Fiber Infrastructure
• 100G Network Upgrades

100GBASE-SR4 Optical Technology

100GBASE-SR4 is a short-reach 100Gbps Ethernet optical technology designed for multimode fiber. The Avago AFBR-89CDDZ-NA1 uses 850nm VCSEL technology and parallel optical lanes to provide high-bandwidth connectivity between compatible 100G networking devices.

The short-reach design makes this transceiver particularly suitable for data centers where switches, servers, and network aggregation equipment are located within relatively short optical distances. It provides high bandwidth while maintaining the compact QSFP28 form factor required for high-density network deployments.

850nm VCSEL Optical Technology

The AFBR-89CDDZ-NA1 uses 850nm VCSEL-based optical transmission, a technology commonly used for short-reach multimode fiber applications. VCSEL technology provides an efficient optical solution for high-speed data center links and is well suited to OM3 and OM4 multimode fiber infrastructure.

For reliable deployment, the complete optical channel should be evaluated for fiber quality, connector insertion loss, polarity, lane mapping, and total optical budget.

QSFP28 Form Factor

The QSFP28 form factor provides a compact and high-density interface for 100Gbps networking. The Avago AFBR-89CDDZ-NA1 can be used in compatible 100G switches, routers, network adapters, and other supported platforms where the appropriate QSFP28 optical specifications are supported.

The pluggable design simplifies optical module installation, replacement, maintenance, and network expansion on compatible equipment.

MPO/MTP Fiber Connectivity

The 100GBASE-SR4 architecture uses a parallel multimode fiber interface. Appropriate MPO/MTP cabling must be used with the correct polarity and lane mapping to establish the optical connection.

OM4 multimode fiber can provide up to 100 meters of supported reach, while OM3 can provide up to 70 meters under the applicable optical conditions. Actual link performance depends on the complete fiber channel.

Compatibility

• Compatible 100G QSFP28 switches
• Compatible data center switches
• Compatible 100G routers
• Compatible network adapters
• Compatible enterprise networking platforms
• Compatible Brocade 100G platforms where supported
• Compatible Dell 100G platforms where supported
• Compatible Cisco 100G platforms where supported
• Compatible HPE 100G platforms where supported
• Compatible Broadcom-based networking platforms

Compatibility is platform-dependent. Always verify the exact host equipment model, firmware, supported transceiver list, coding requirements, connector, fiber type, and optical specifications before installation.

Benefits

• 100Gbps high-bandwidth optical connectivity
• Short-reach optical solution for data centers
• Compact QSFP28 form factor
• 850nm VCSEL optical technology
• Supports OM3 and OM4 multimode fiber
• Up to 100m reach over OM4
• Up to 70m reach over OM3
• Parallel MPO/MTP fiber interface
• High-density optical connectivity
• Suitable for switch-to-switch and rack-to-rack links

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies networking and data center infrastructure products in Bangladesh, including Avago/Broadcom optical transceivers, QSFP28 modules, SFP/SFP28 optics, fiber-optic equipment, enterprise switches, server networking components, and high-speed data center connectivity solutions. Customers can receive competitive pricing, technical consultation, deployment assistance, and after-sales support.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Avago AFBR-89CDDZ-NA1?
The Avago AFBR-89CDDZ-NA1 is a 100GBASE-SR4 QSFP28 optical transceiver designed for short-reach 100Gbps Ethernet connectivity over multimode fiber.

Q2: What is the data rate of the AFBR-89CDDZ-NA1?
The module is designed for 100Gbps-class Ethernet optical connectivity.

Q3: What wavelength does the AFBR-89CDDZ-NA1 use?
The module uses 850nm VCSEL-based optical technology.

Q4: What type of fiber does the AFBR-89CDDZ-NA1 use?
It is designed for multimode fiber, including OM3 and OM4 fiber infrastructure.

Q5: What is the maximum transmission distance?
The supported reach is up to 100 meters over OM4 multimode fiber and up to 70 meters over OM3 multimode fiber, subject to the complete optical link budget.

Q6: What connector does the AFBR-89CDDZ-NA1 use?
The 100GBASE-SR4 interface uses a parallel MPO/MTP optical connection.

Q7: Is the AFBR-89CDDZ-NA1 a QSFP28 module?
Yes. It uses the QSFP28 pluggable form factor for 100Gbps networking.

Q8: What is the significance of 332-00440+A0?
332-00440+A0 is an assembly/reference identifier associated with the AFBR-89CDDZ-NA1 module. The exact ordering and compatibility details should be confirmed against the physical module label and host platform.

Q9: Is the Avago AFBR-89CDDZ-NA1 suitable for data centers?
Yes. Its 100GBASE-SR4 architecture, 850nm multimode optics, and QSFP28 form factor make it suitable for high-density data center networking applications.

Q10: Can the AFBR-89CDDZ-NA1 be used over single-mode fiber?
No. The SR4 architecture is intended for short-reach multimode fiber. For long-distance single-mode links, an appropriate LR4 or other single-mode 100G transceiver should be selected.

Q11: Is the AFBR-89CDDZ-NA1 hot-pluggable?
The QSFP28 module is designed as a pluggable optical interface. Actual hot-plug operation depends on the host networking platform.

Q12: Where can I buy the Avago AFBR-89CDDZ-NA1 in Bangladesh?
You can contact Datacom Technologies (BD) for Avago/Broadcom 100G QSFP28 optical transceivers, fiber-optic networking products, data center equipment, and high-speed optical connectivity solutions with competitive pricing and nationwide delivery.
