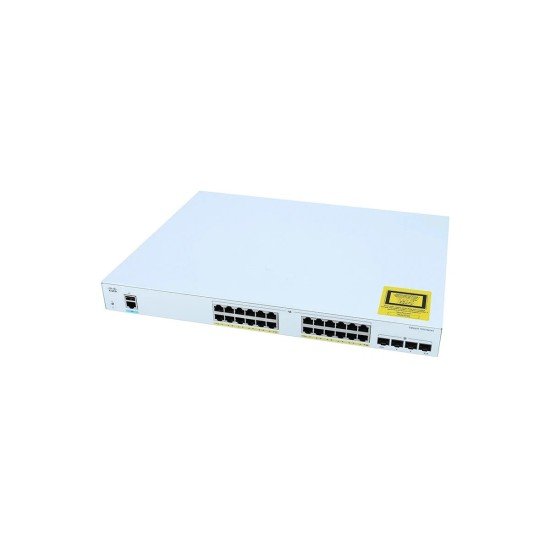

Cisco C1000-24FP-4G-L – 24-Port Gigabit PoE+ Managed Switch with 4× 1G Uplinks (Lifetime License)
The Cisco C1000-24FP-4G-L is a powerful 24-port Gigabit PoE+ managed switch from Cisco’s Catalyst 1000 Series designed for reliable, secure, and scalable network connectivity in small to medium-sized businesses. With 24 PoE+ Gigabit Ethernet ports, 4 dedicated 1G SFP uplinks, and a 370W PoE power budget, this switch supports high-performance networking for IP cameras, VoIP phones, wireless access points, and other PoE devices.
Key Features
- 24 × Gigabit PoE+ (802.3at) Ethernet Ports with up to 370W total power budget for PoE devices
- 4 × 1G SFP Uplink Ports for fiber connectivity and flexible network design
- Managed Layer 2 Switching with VLAN, QoS, ACLs, and advanced traffic control
- Web & CLI Management for easy setup and configuration
- 56 Gbps Switching Capacity and 41.67 Mpps forwarding rate for efficient data throughput
- Rack-mountable 1U Design ideal for server rooms and structured cabling environments
- Secure Network Features including 802.1x authentication and BPDU Guard
Cisco C1000-24FP-4G-L Specification Table
| Specification | Details |
|---|
| Model | Cisco C1000-24FP-4G-L |
| Series | Cisco Catalyst 1000 Series (Layer 2 Managed) |
| Ethernet Ports | 24 × 10/100/1000 Mbps Gigabit Ethernet PoE+ (auto-sensing) |
| Uplink Ports | 4 × 1G SFP |
| PoE Standard | IEEE 802.3af / 802.3at PoE+ |
| PoE Power Budget | 370W total |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 16,000 entries |
| VLAN Support | Up to 256 active VLANs (VLAN IDs up to 4094) |
| Static Routing | IPv4/IPv6 static routes supported |
| Jumbo Frames | Supported (MTU ~9,198 bytes) |
| Security Features | 802.1X, BPDU Guard, ACLs, SPAN |
| Management | CLI, Web UI, SNMP |
| Console Ports | RJ-45, USB mini-B & USB-A (for storage/console) |
| CPU / Memory | ARM v7 CPU, 512 MB DRAM, 256 MB Flash |
| Form Factor | Fixed, rack-mountable 1U |
| Power Input | AC 100–240V (internal PSU) |
| Operating Temp. | Typical commercial range (0–45°C) |
| Use Cases | SMB/enterprise access layer with PoE for APs, phones, cameras |
| Weight | ~4.6 kg (~10.14 lbs) |
| License | Cisco Enhanced Limited Lifetime License included |
How to Install Cisco C1000-24FP-4G-L
1. Unbox and Inspect
- Ensure all components (switch, power cable, rack brackets) are included and undamaged.
2. Mount in Rack
- Install the switch into a standard 19-inch rack using the included brackets.
3. Connect Power
- Plug the power cord into a reliable AC outlet and power on the switch.
4. Connect Devices
- Use Ethernet cables to connect PoE devices (IP phones, APs, cameras).
- Insert compatible SFP modules into the SFP slots for fiber uplinks.
5. Configure Network
- Access the switch’s management interface via web GUI or CLI.
- Set up VLANs, PoE settings, QoS, security policies, and uplinks.
Compatibility
This switch works seamlessly with:
- Cisco routers and firewalls
- Standard PoE+ powered devices (802.3at/af)
- Fiber uplink modules (SFP)
- Layer 2 enterprise networks
- Multi-vendor network environments using standard protocols
- Supports widely used networking standards such as 802.1Q VLANs, 802.3af/at PoE, QoS, and SNMP.
Frequently Asked Questions (FAQ)
Q1: What devices can this switch power?
- It can power PoE+ devices such as IP cameras, VoIP phones, wireless APs, and other PoE-enabled endpoints.
Q2: How much PoE power does it provide?
- The switch has a 370W total PoE budget to distribute across its PoE+ ports.
Q3: Can I use the SFP uplinks for fiber?
- Yes, the 4 SFP ports support fiber SFP modules for uplink connections to other switches or core networks.
Q4: Is this switch fully managed?
- Yes, it supports Layer 2 managed features with configuration via web GUI and CLI.
Q5: Can it be used in a CCTV network?
- Absolutely — the PoE+ support and high switching capacity make it ideal for powering and connecting multiple IP cameras.
Buy Cisco C1000-24FP-4G-L 24 Port Gigabit PoE+ Compliant Managed Switch at the Best Price in Bangladesh.
In Bangladesh, you can get Cisco C1000-24FP-4G-L 24 Port Gigabit PoE+ Compliant Managed Switch From Datacom Technologies BD. We have a large collection of latest Cisco 1000 Series Switch to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The Cisco C1000-24FP-4G-L 24 Port Gigabit PoE+ Compliant Managed Switch comes with 1 Year warranty.
