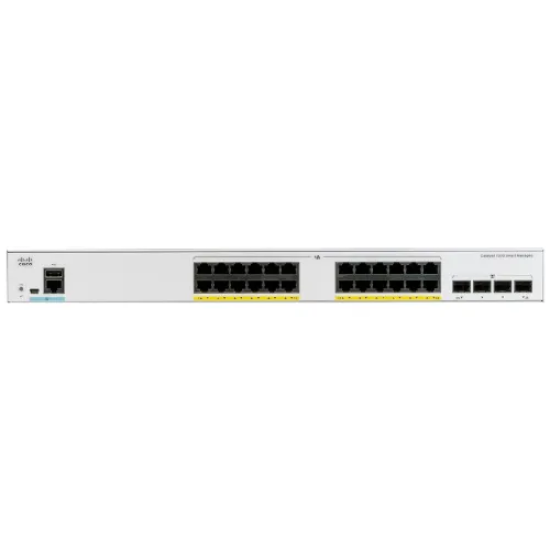

Cisco C1000-24P-4X-L Catalyst 1000 Series Switch
The
Cisco C1000-24P-4X-L is a fully managed
24-port Gigabit PoE+ Ethernet switch with 4 × 10G SFP+ uplinks, part of the reliable
Cisco Catalyst 1000 Series. Designed for small to medium-sized businesses, branch offices, and enterprise edge networks, this switch delivers powerful Layer 2 switching, intelligent PoE+ power, robust security, and scalable performance — all with simple management via web UI or CLI.
Key Features
- 24 × Gigabit Ethernet PoE+ ports (IEEE 802.3af/at) for powering IP phones, wireless access points, CCTV cameras, and other PoE devices
- 4 × 10G SFP+ uplink ports for high-speed backbone connectivity and network expansion
- Managed Layer 2 switching with VLANs, QoS, ACLs, and advanced security features
- High PoE power budget (approx. 195 W) to support multiple PoE endpoints
- Rack-mountable 1RU design for data center and wiring closet installation
- Intuitive Cisco IOS-based web interface and CLI for configuration and monitoring
- Ideal for enterprise, SMB, and campus network deployments
Cisco C1000-24P-4X-L Specification Table
| Specification Category | Details |
|---|
| Model | Cisco Catalyst C1000-24P-4X-L |
| Series | Catalyst 1000 Series |
| Ports | 24 × 10/100/1000BASE-T PoE+ (RJ45) |
| Uplinks | 4 × 10G SFP+ (fiber) |
| PoE Standards | IEEE 802.3af / IEEE 802.3at (PoE+) |
| Total PoE Budget | 195W |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16,000 entries |
| VLAN Support | 256 active VLANs, 4,094 VLAN IDs |
| Routing | IPv4: Direct 542 / Indirect 256, IPv6: Direct 414 / Indirect 128 |
| CPU | ARM v7 @ 800 MHz |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| Management Interfaces | RJ-45 console, USB-A (storage/Bluetooth) |
| Security / Protocols | SNMP v1/v2c/v3, IEEE 802.1X, LLDP, CDP |
| SPAN Sessions | 4 (ingress/egress) |
| Form Factor | Fixed, rack-mountable (1RU) |
| Dimensions (W×D×H) | 17.29″ × 16.14″ × 1.712″ (approx.) |
| Power Supply | Internal (110–220V AC) |
| Use Case | Small/branch office, enterprise edge PoE deployments |
How to Install
- Unbox & Inspect: Remove the switch and accessories.
- Mounting: Attach rack ears and secure into a standard 19″ rack.
- Power Connection: Connect the AC power cable and ensure a stable power source.
- Connect Devices: Plug Ethernet cables into the 24 PoE+ ports for end devices. Connect fiber or DAC cables to the 10G SFP+ uplinks for backbone links.
- Configure Switch: Access via default IP or console port. Set up VLANs, PoE settings, QoS, and security policies.
- Verify: Check link/activity LEDs and test connectivity to network devices.
Compatibility
This switch is compatible with:
- IP phones, VoIP systems
- Wireless access points
- IP CCTV cameras and surveillance systems
- Servers and storage devices
- Core routers and distribution switches
- Fiber uplink modules (10G SFP+)
FAQ (Frequently Asked Questions)
Q: Does this switch support PoE+?
- Yes — all 24 ports support IEEE 802.3af/at PoE+ with a total power budget of ~195 W.
Q: Can the 10G SFP+ uplinks be used for fiber connections?
- Yes — the 10G SFP+ ports support high-speed fiber uplinks with compatible transceivers.
Q: Is this a Layer 3 switch?
- It is primarily a managed Layer 2 switch with advanced VLAN and security features.
Q: Is this switch suitable for SMB and enterprise use?
- Yes — designed for small to medium businesses, branch offices, and enterprise edge deployments.
Q: Does it support advanced security like 802.1X?
- Yes — Catalyst 1000 Series includes enhanced security features such as 802.1X network access control.
Buy Cisco C1000-24P-4X-L Catalyst 1000 Series Switch at the Best Price in Bangladesh.
In Bangladesh, you can get Cisco C1000-24P-4X-L Catalyst 1000 Series Switch From Datacom Technologies BD. We have a large collection of latest Cisco 1000 Series Switch to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The Cisco C1000-24P-4X-L Catalyst 1000 Series Switch comes with 1 Year warranty.
