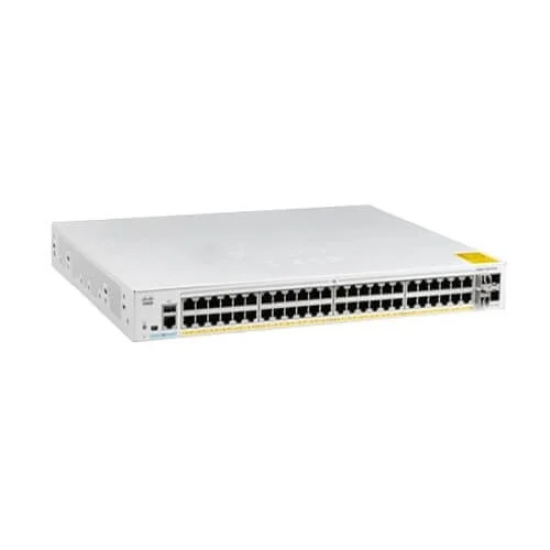

Cisco C1000-48P-4G-L – 48-Port Gigabit PoE+ Managed Switch with 4× 1G Uplinks (Lifetime License)
The Cisco C1000-48P-4G-L is a high-performance 48-port Gigabit PoE+ managed switch from the Cisco Catalyst 1000 Series — engineered for small to medium-sized businesses, branch offices, and enterprise edge deployments. With 48 PoE+ Gigabit Ethernet ports, 4 dedicated 1G SFP uplinks, and a 370W PoE budget, this switch delivers reliable power and connectivity for IP cameras, VoIP phones, wireless access points, and other network devices.
Key Features
- 48 × Gigabit PoE+ (802.3at) Ethernet Ports with 370W total PoE power budget — ideal for powering multiple PoE devices such as IP cameras, VoIP phones, and wireless APs.
- 4 × 1G SFP Uplink Ports for flexible fiber connectivity and seamless network expansion.
- Managed Layer 2 Switching with VLANs, QoS, ACLs, and advanced traffic control for secure and efficient network performance.
- 104 Gbps Switching Capacity and 77.38 Mpps Forwarding Rate for high throughput even under heavy load.
- Web-Based and CLI Management for easy configuration, monitoring, and maintenance.
- Rack-Mountable 1U Design suitable for server racks and structured network closets.
- Security Features including 802.1x authentication, DHCP Snooping, RADIUS, BPDU Guard, and storm control.
Cisco C1000-48P-4G-L Specification Table
| Specification | Details |
|---|
| Model | Cisco C1000-48P-4G-L |
| Series | Cisco Catalyst 1000 Series Layer 2 Managed Switch |
| Ethernet Ports | 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ (RJ-45) |
| Uplink Ports | 4 × 1G SFP |
| PoE Standard | IEEE 802.3af / 802.3at PoE+ |
| PoE Power Budget | 370W |
| Switching Capacity | ~52–56 Gbps |
| Forwarding Rate | ~41.67 Mpps (64-byte) typical for this class (inferred from similar models) |
| MAC Address Table | 16,000 entries |
| VLAN Support | Yes (up to 256 active VLANs) |
| Static Routing | Basic IPv4 static routing supported |
| Jumbo Frames | Supported (MTU ~9K) |
| Management | CLI, Web UI, SNMP |
| Security Features | ACLs, 802.1X, BPDU Guard, DHCP Snooping, etc. |
| Console Ports | RJ-45 & USB (common on Catalyst 1000) |
| Form Factor | Fixed, rack-mountable 1RU |
| CPU / Memory | ARM v7 800 MHz CPU, 512 MB DRAM, 256 MB flash |
| Dimensions (W×D×H) | ~17.5 × 13.78 × 1.73 in (44.5 × 35 × 4.4 cm) |
| Weight | ~11.97 lbs (5.43 kg) |
| Power Input | AC 100–240V internal PSU |
| Use Case | SMB/Enterprise access layer with PoE for APs, VoIP phones, cameras |
| License | Cisco Enhanced Limited Lifetime License (L) included |
How to Install Cisco C1000-48P-4G-L
1. Unbox and Inspect
- Check that the switch, power cable, and rack brackets are included and free from damage.
2. Mount in Rack
- Install the switch into a standard 19-inch rack using the included brackets.
3. Connect Power
- Plug the power cord into a reliable AC outlet and turn on the switch.
4. Connect Network Devices
- Connect PoE devices (cameras, phones, APs) to the 48 PoE+ ports.
- Insert compatible SFP modules into the 4 SFP uplinks for fiber connections.
5. Configure Switch Settings
- Access the management interface (web GUI or CLI) to set up VLANs, QoS, security policies, and PoE priorities.
Compatibility
- Cisco routers and firewalls
- Standard PoE+ (802.3at) powered devices
- Compatible SFP fiber modules
- Enterprise and multi-vendor network environments
Supports industry standards such as 802.1Q VLANs, 802.3at PoE+, QoS, SNMP, and RADIUS authentication for broad interoperability.
Frequently Asked Questions (FAQ)
Q1: How many devices can this switch power?
- It can power up to 48 PoE+ devices using a total 370W PoE budget, perfect for cameras, phones, and APs.
Q2: What types of uplinks are supported?
- The switch includes 4 × 1G SFP ports for fiber uplinks to other switches or core network devices.
Q3: Is this switch fully managed?
- Yes — you can manage it via a web GUI or CLI with advanced Layer 2 features.
Q4: Can I use this switch for CCTV systems?
- Yes — the PoE+ ports make it ideal for powering and connecting multiple IP cameras.
Q5: Does it support VLAN and QoS?
- Yes — the switch supports VLANs, QoS, ACLs, and other traffic control features for optimized performance.
Buy Cisco C1000-48P-4G-L Catalyst C1000 Series Switch at the Best Price in Bangladesh.
In Bangladesh, you can get Cisco C1000-48P-4G-L Catalyst C1000 Series Switch From Datacom Technologies BD. We have a large collection of latest Cisco 1000 Series Network Switch to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The Cisco C1000-48P-4G-L Catalyst C1000 Series Switch comes with 1 Year warranty.
