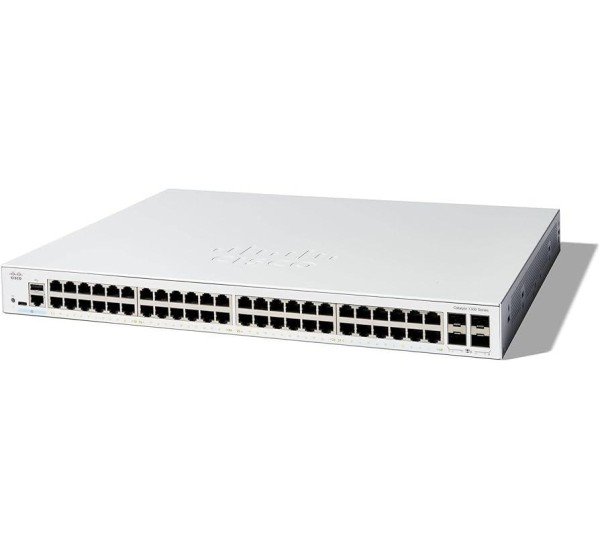

Cisco C1300-48P-4G Catalyst 1300 48-Port Gigabit PoE+ Managed Switch
The Cisco C1300-48P-4G is a high-density managed Gigabit Ethernet switch from the Cisco Catalyst 1300 Series, designed for business networks, enterprise branch offices, IP surveillance, wireless access point deployments, VoIP, IoT, and other network environments requiring centralized Power over Ethernet. It provides 48 × 10/100/1000BASE-T Gigabit Ethernet ports with PoE+ support and 4 × 1G SFP uplink ports.
The switch provides a 370W PoE budget for powering compatible network endpoints directly through Ethernet cabling. IEEE 802.3af and IEEE 802.3at support enables the C1300-48P-4G to deliver PoE/PoE+ power to devices such as wireless access points, IP phones, security cameras, and other compatible powered devices, subject to the available system power budget.
Four dedicated 1G SFP uplinks provide additional connectivity options for linking the switch to aggregation switches, routers, servers, distribution networks, or other compatible fiber infrastructure. The “4G” designation refers to the four Gigabit SFP uplinks and does not indicate cellular 4G connectivity.
Key Features of Cisco C1300-48P-4G
- 48 × 10/100/1000BASE-T Gigabit Ethernet ports
- PoE+ support on the Gigabit Ethernet access ports
- 370W dedicated PoE power budget
- IEEE 802.3af PoE and IEEE 802.3at PoE+ support
- Up to 30W per PoE+ port, subject to available system power
- 4 × 1G SFP uplink ports
- Managed Layer 2 and Layer 3 networking capabilities
- VLAN, QoS, security, and traffic-management functions
- IPv4 and IPv6 networking support
- Rack-mountable Catalyst 1300 platform
Technical Specifications
| Brand |
Cisco |
| Model |
C1300-48P-4G |
| Series |
Cisco Catalyst 1300 Series |
| Product Type |
Managed Gigabit PoE+ Switch |
| Ethernet Ports |
48 × 10/100/1000BASE-T RJ-45 |
| PoE Support |
PoE+ |
| PoE Standard |
IEEE 802.3af / 802.3at |
| PoE Budget |
370W |
| Maximum PoE Per Port |
Up to 30W |
| Uplink Ports |
4 × 1G SFP |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.38 Mpps |
| Packet Buffer |
1.5 MB |
| MAC Address Table |
16,000 entries |
| Jumbo Frames |
Up to 9,000 bytes |
| Flash |
1GB SLC |
| CPU |
ARM dual-core 1.5 GHz |
| Memory |
1GB DDR4 |
| Management |
Web UI, CLI, SNMP, and Cisco Business Dashboard |
| Form Factor |
Rack-mountable |
48-Port Gigabit PoE+ Connectivity
The C1300-48P-4G provides 48 Gigabit Ethernet access ports for connecting computers, IP phones, wireless access points, security cameras, network appliances, and other Ethernet-enabled devices. PoE+ allows compatible powered devices to receive both network data and electrical power through the same Ethernet connection.
370W Centralized PoE Power
With a 370W PoE power budget, the switch is designed for deployments where multiple PoE-enabled endpoints need centralized power. Individual ports can support up to 30W under IEEE 802.3at PoE+, while the number of devices that can be powered simultaneously depends on their power requirements and the total available PoE budget.
4 × 1G SFP Uplink Ports
Four dedicated Gigabit SFP interfaces provide flexible uplink connectivity to compatible network infrastructure. Fiber or copper SFP transceivers can be selected according to the required link type, transmission distance, fiber specification, and connected equipment.
Managed Layer 2 and Layer 3 Features
The Catalyst 1300 platform provides a broad range of managed networking functions, including VLAN configuration, Quality of Service, security controls, traffic management, discovery, monitoring, and IPv4/IPv6 networking. These capabilities allow the C1300-48P-4G to be integrated into structured business and enterprise LAN environments.
Ideal Applications
- Enterprise access-layer networks
- Corporate and business LANs
- Wireless access point deployments
- IP surveillance camera networks
- VoIP and IP telephone systems
- IoT and connected-device networks
- Branch-office networking
- Retail and commercial networks
- Education and institutional networks
- Small and medium-sized business infrastructure
Compatibility
The Cisco C1300-48P-4G can be integrated with compatible Cisco and third-party Ethernet equipment, including IP cameras, wireless access points, IP phones, routers, servers, switches, and other network appliances. Before deployment, verify the power requirements and supported PoE standard of connected devices. SFP transceivers should also be selected according to Cisco compatibility requirements and the speed, fiber type, and transmission distance of the intended link.
Why Choose Cisco C1300-48P-4G?
- 48 Gigabit Ethernet access ports
- PoE+ support for compatible powered devices
- 370W centralized PoE budget
- Four Gigabit SFP uplinks
- 104 Gbps switching capacity
- 77.38 Mpps forwarding performance
- Managed Layer 2 and Layer 3 networking capabilities
- Suitable for wireless, surveillance, VoIP, and IoT deployments
- Rack-mountable Catalyst 1300 platform
Cisco C1300-48P-4G Price in Bangladesh
For the latest Cisco C1300-48P-4G price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
Contact:
sales@datacom.com.bd
Datacom Technologies (BD) can assist with sourcing Cisco Catalyst PoE+ switches, Gigabit managed switches, SFP transceivers, wireless networking equipment, surveillance networking hardware, and enterprise IT infrastructure in Bangladesh.
